| 2022 Kia Soul |
Fuses and Relays
A vehicle's electrical system is protected from electrical overload damage by fuses.
 |
| Fuse Types - Blade Fuse , Cartridge Fuse, Multi Fuse ; Left side: Normal, Right side: Blown |
This vehicle has 2 (or 3) fuse panels, one located in the driver's side panel bolster, the other in the engine compartment near the battery. If any of your vehicle's lights, acces-sories, or controls do not work, check the appropriate circuit fuse.
If a fuse has blown, the element inside the fuse will melt.If the electrical system does not work, first check the driver's side fuse panel.If the replacement fuse blows, this indicates an electrical problem.
Avoid using the system involved and immediately consult an authorized Kia dealer.
Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.
WARNING - Fuse replacement
- Never replace a fuse with any-thing but another fuse of the same rating.
- A higher capacity fuse could cause damage and possibly a fire.
- Never install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and a possible fire.
- Do not arbitrarily modify or add-on electric wiring to the vehicle.
- Do not arbitrarily modify or add-on electric wiring to the vehicle.
NOTICE
- When replacing a fuse, Turn ignition to the OFF position and turn off switches of all electrical devices; then remove the battery (-) terminal.
- The actual fuse/relay panel label may differ from equipped items.
WARNING - Electrical Fire
Always ensure replacements fuses and relays are securely fastened when installed. Failure to do so can result in a vehicle fire.Do not remove fuses, relays and terminals fastened with bolts or nuts. The fuses, relays and termi-nals may be fastened incompletely, and it may cause a possible fire. If fuses, relays and terminals fastened with bolts or nuts are blown, we recommend that you consult with an authorized Kia dealer.
Replacing inner panel fuse
1. Turn the ignition switch and all other switches off.
2. Open the fuse panel cover.
 |
| Replacing inner panel fuse |
3. Pull the suspected fuse straight out. Use the removal tool (Fuse Puller) provided on the engine fuse panel cover.
 |
| Fuse Puller Location |
4. Check the removed fuse; replace it if it is blown.Spare fuses are provided in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, consult an authorized Kia dealer.
If you do not have a spare, use a fuse of the same rating from a cir-cuit you may not need for operating the vehicle, such as the power outlet fuse.
If the head lamp, turn signal lamp, stop signal lamp, fog lamp, DRL (Daytime running light), tail lamp, HMSL do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced.
 |
| Driver's side fuse Panel Location |
 |
| Driver side Fuse Panel Diagram |
NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.
Description ... Fuse rating ... Protected component
POWER OUTLET 20 A Front Power Outlet LH (Cigarette Lighter)
MODULE2 10 A Sound Mood Lamp, E/R Junction Block (Power Outlet Relay), Audio, Front/Rear USB Charger, Wireless Charger, AMP, Driver/Passenger Door Mood Range Lamp, Power Outside Mirror Switch, A/V & Navigation Head Unit, IBU
HEATED MIRROR 10 A Driver/Passenger Power Outside Mirror, A/C Control Mod-ule, ECM
IG1 25 A PCB Block (Fuse - ABS3, ECU5, SENSOR4, TCU2)
AIR BAG1 15 A Occupant Detection Sensor, SRS Control Module
A/BAG IND 7.5 A Instrument Cluster, A/C Control Module
IBU2 7.5 A IBU
CLUSTER 7.5 A HUD, Instrument Cluster
MDPS 7.5 A MDPS Unit
MODULE3 7.5 A ATM Shift Lever, Stop Lamp Switch
MODULE4 7.5 A Multifunction Camera, IBU, Smart Cruise Control Radar, Crash Pad Switch, Blind-Spot Collision Warning Unit LH/RH
MODULE5 10 A Front Air Ventilation Seat Control Module, A/C Control Mod-ule, A/V & Navigation Head Unit, Front Seat Warmer Control Module, ATM Shift Lever Indicator, Rear Seat Warmer Module, Audio, ECM (Electric chromic mirror)
A/C1 7.5 A E/R Junction Block (Blower Relay, PTC Heater #1/#2 Relay), A/C Control Module
WIPER FRT2 25 A Front Wiper Motor, PCB Block (Front Wiper (Low) Relay)
WIPER RR 15 A Rear Wiper Motor, ICM Relay Box (Rear Wiper Relay)
WASHER 15 A Multifunction Switch
MODULE6 7.5 A IBU
MODULE7 7.5 A Front/Rear Seat Warmer Control Module, Front Air Ventila-tion Seat Control Module, Front Heated Box (Front Heated LH Relay)
WIPER FRT1 10 A Front Wiper Motor, PCB Block (Front Wiper (Low) Relay), IBU, ECM/PCM
A/C2 10 A ECM/PCM, A/C Control Module, Blower Resistor, Blower Motor, E/R Junction Block (Blower Relay)
START 7.5 A [W/O Smart Key & IMMO.] ICM Relay Box (Burglar Alarm Relay), [With Smart Key or IMMO.] Transmission Range Switch, IBU,ECM/PCM, E/R Junction Block (Start Relay)
P/WINDOW LH 25 A Power Window LH Relay, Driver Safety Power Window Module
P/WINDOW RH 25 A Power Window RH Relay, Passenger Safety Power Window Module
TAILGATE OPEN 10 A Tail Gate Open Relay
SUNROOF 20 A Sunroof Motor
AMP 25 A [W/O ISG] AMP, [With ISG] DC-DC Converter
S/HEATER FRT 20 A Front Seat Warmer Control Module, Front Air Ventilation Seat Control ModuleP/SEAT (DRV)25 APOWER SEAT MODULE (DRV)P/SEAT (PASS)25 APOWER SEAT MODULE (PASS)S/HEATER RR20 ARear Seat Warmer Control Module
DOOR LOCK 20 A Door Lock/Unlock Relay, ICM Relay Box (T/Turn Unlock Relay)
BRAKE SWITCH 10 A Stop Lamp Switch, IBU
IBU1 15 A IBU
AIR BAG2 10 A SRS Control Module
MODULE1 7.5 A Hazard Switch, Key Interlock Solenoid, Rain Sensor, Data Link ConnectorMEMORY110 AInstrument Cluster, A/C Control Module, HUD
MULTI MEDIA 15 A Audio, A/V & Navigation Head Unit, DC-DC Converte
Engine Compartment Fuse Box
1. Turn the Turn ignition and all other switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the cover up.
 |
| Engine compartment Fuse Block |
3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Kia dealer.
CAUTION
Always securely install the fuse panel cover in the engine compart-ment to protect against electrical failure which may occur from water contact. Listen for the audible clicking sound to ensure fuse panel cover is securely fastened.
Multi fuse
 |
Multi fuse |
If the multi fuse is blown, it must be removed as follows:
1. Turn the ignition switch and all other switches off.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.5. Reverse these steps to reinstall the multi fuse.
Main fuse
 |
| Main fuse |
If the main fuse is blown, it must be removed as follows:
1. Turn the ignition switch and all other switches off.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.
5. Reverse these steps to reinstall the multi fuse.
NOTICE
The electronic system may not function correctly even when the engine compartment and internal fuse box's individual fuses are not disconnected. In such a case, the cause of the problem may be disconnection of the main fuse (BFT type), which is located inside the positive battery terminal (+) cap.Since the main fuse is designed more intricately than other parts, have the vehicle checked by an authorized Kia dealer.
NOTICE
Do not disassemble nor assemble the multi fuse when it is secured with nuts and bolts. Incorrect or partial assembly torque may cause a fire. Have the vehicle checked by an authorized Kia dealer.

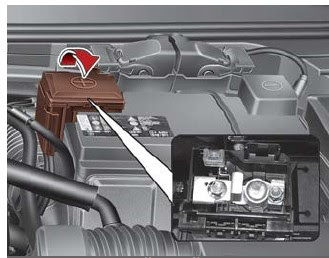

Battery fuse
If the battery fuse is blown, it must be removed as follows:
1. Disconnect the negative battery cable.
2. Remove the nuts shown in the picture below.
 |
Battery fuse |
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal
NOTICE
If the battery fuse is blown, have the vehicle checked by an autho-rized Kia dealer.
Fuse/relay panel description
Inside the fuse / relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
 |
| Engine Compartment Fuse Panel Description |
 |
| Engine Compartment Fuse Panel Diagram |
Fuse Name ... Fuse rating ... Circuit Protected
ALT 150 A (G4FJ)180 A (G4NH)Alternator, E/R Junction Block (Fuse - VACUUM PUMP, OIL PUMP, POWER OUTLET1), ESC (Electronic Stability Control)1, ESC (Electronic Stability Control)2)
MDPS 80 A MDPS (Motor Driven Power Steering) Unit
B+5 60 A PCB (Printed Circuit Board) Block (Engine Control Relay, Fuse - ECU3, ECU4, HORN, A/C)
B+2 60 A ICU Junction Block (IPS Control Module)
B+3 60 A ICU Junction Block (IPS Control Module)
B+4 50 A ICU Junction Block (Fuse - P/WINDOW LH, P/WINDOW RH, TAILGATE OPEN, SUNROOF, AMP, S/HEATER FRT, P/SEAT (DRV), P/SEAT (PASS)
COOLING FAN 60 A [G4FH] Cooling Fan #1 Relay
REAR HEATER 40 A Rear Heater Relay
BLOWER 40 A Blower Relay
IG1 40 A [W/O Smart Key] Ignition Switch, [With Smart Key] E/R Junction Block (PDM (ACC) #2 Relay, PDM (IG1) #3 Relay)
IG2 40 A [W/O Smart Key] Ignition Switch, Start #1 Relay, [With Smart Key] E/R Junction Block (PDM (IG2) #4 Relay), Start #1 Relay
PTC HEATER1 50 A PTC Heater #1 Relay
PTC HEATER2 50 A PTC Heater #2 Relay
ABS1 40 A ESC (Electronic Stability Control) Module, ABS (Anti-lock Brake System) Control Module
ABS2 40 A ESC (Electronic Stability Control) Module, ABS (Anti-lock Brake System) Control Module
POWER OUTLET 1 40 A Power Outlet Relay
POWER OUTLET 2 20 A Front Power Outlet RH
POWER OUTLET 3 20 A Rear Power Outlet
OIL PUMP 40 A Electronic Oil Pump
VACUUM PUMP 20 A Electric Vacuum Pump
TCU1 15 A TCM (Transmission Control Module)
H/LAMP HI 10 A Head Lamp (High) Relay
FUEL PUMP 20 A Fuel Pump Relay
COOLING FAN 40 A [G4NH] Cooling Fan #1/#2 Relay (Radiator Fan)
B+1 40 A ICU Junction Block (Long Term Load Latch Relay, Fuse - BRAKE SWITCH, MODULE1, IBU1, AIR BAG2,DOOR LOCK, S/HEATER RR)
DCT1 40 A TCM (Transmission Control Module)
DCT2 40 A TCM (Transmission Control Module)
ECU1 20A [GAMMA 1.6L T-GDI] ECM (Engine Control Module) [NU 2.0L MPI] PCM (Power train Control Module)
ECU3 15 A [GAMMA 1.6L T-GDI] ECM (Engine Control Module) [NU 2.0L MPI] PCM (Power train Control Module)
ECU4 15 A [GAMMA 1.6L T-GDI] ECM (Engine Control Module) [NU 2.0L MPI] PCM (Power train Control Module)
HORN 15 A Horn Relay
A/C 10 A A/C COMP RelayIGN COIL20 AIgnition Coil #1/#2/#3/#4SENSOR310 AE/R Junction Block (Fuel Pump Relay)INJECTOR15 A[NU 2.0L MPI] Injector #1/#2/#3/#4ECU210 A[GAMMA 1.6L T-GDI] ECM (Engine Control Module)
SENSOR1 15 A Oxygen Sensor (Up/Down)
SENSOR210 A A/C COMP Relay, Canister Close Valve, [GAMMA 1.6L T-GDI] Oil Control Valve #1/#2, Purge Control Solenoid Valve, E/R Junction Block (Cooling Fan #1 Relay), Turbo Recircu-lation Valve [NU 2.0L MPI] Oil Control Valve #1/ #2/ #3, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Elec Thermostat, E/R Junction Block (Cooling Fan #1/#2)
ABS3 10 A ESC (Electronic Stability Control) Module, ABS (Anti-lock Brake System) Control Module, Data Link Connector, Multipurpose Check Connector
ECU5 10 A [GAMMA 1.6L T-GDI] ECM (Engine Control Module) [NU 2.0L MPI] PCM (Power train Control Module)
SENSOR4 15 A [GAMMA 1.6L T-GDI] Electric Vacuum Pump [NU 2.0L MPI] Electronic Oil Pump
TCU2 15 A [GAMMA 1.6L T-GDI] TCM (Transmission Control Mod-ule), Transmission Range Switch [NU 2.0L MPI] Transmis-sion Range Switch
