Fuses and Relays
 |
| Fuse Types : Norma Fuse , Blown Fuse |
A vehicle’s electrical system is protected from electrical overload damage by fuses.
This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted or broken.
If the electrical system does not work, first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the engine and all switches off, and then disconnect the negative battery cable.
Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem.
Avoid using the system involved and immediately consult an authorized HYUNDAI dealer.
This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted or broken.
If the electrical system does not work, first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the engine and all switches off, and then disconnect the negative battery cable.
Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem.
Avoid using the system involved and immediately consult an authorized HYUNDAI dealer.
WARNING
NEVER replace a fuse with anything but another fuse of the same rating.
- A higher capacity fuse could cause damage and possibly cause a fire.
- Do not install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and possibly a fire.
NOTICE
Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.
Instrument Panel Fuse Replacement
 |
| Instrument Panel Fuse Replacement |
1. Turn the engine off.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.
2. Turn all other switches OFF.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.
 |
| Fuse Puller Location |
5. Pull the suspected fuse straight out.
Use the removal tool provided in the engine compartment fuse panel.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).
7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
Use the removal tool provided in the engine compartment fuse panel.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).
7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle.
If the headlamps or other electrical components do not work and the fuses are undamaged, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced with the same rating.
If the headlamps or other electrical components do not work and the fuses are undamaged, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced with the same rating.
Fuse switch
 |

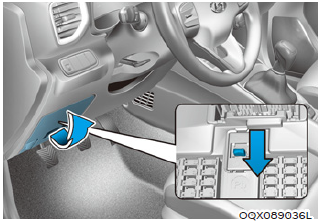

| Fuse Switch Location |
Always, place the fuse switch to the ON position.
If you move the switch to the OFF position, some items such as the audio system and digital clock must be reset and the smart key may not work properly.
If you move the switch to the OFF position, some items such as the audio system and digital clock must be reset and the smart key may not work properly.
Information
 |
| Fuse Switch |
If the fuse switch is OFF, the above message will appear.
NOTICE
- Always place the fuse switch in the ON position while driving the vehicle.
- Do not move the fuse switch repeatedly. The fuse switch may be damaged.
Engine Compartment Panel Fuse Replacement
 |
| Blade type fuse |
 |

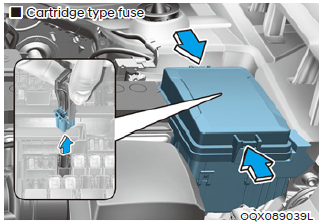

| Cartridge type fuse |
1. Turn the engine off.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by pressing the tap and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the Fuse Puller in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
2. Turn all other switches OFF.
3. Remove the fuse panel cover by pressing the tap and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the Fuse Puller in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.
CAUTION
After checking the fuse box in the engine compartment securely close the fuse box cover inside the engine compartment, until it clicks.
If the fuse box is not closed properly, water may leak in side, possibly causing a malfunction with the electrical system.
After checking the fuse box in the engine compartment securely close the fuse box cover inside the engine compartment, until it clicks.
If the fuse box is not closed properly, water may leak in side, possibly causing a malfunction with the electrical system.
Main fuse
 |
| Main fuse |
If the main fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
Information
If the main fuse is blown, consult an authorized HYUNDAI dealer.
If the main fuse is blown, consult an authorized HYUNDAI dealer.
Multi fuse
 |
| Multi fuse |
If the multi fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
Information
If the multi fuse is blown, consult an authorized HYUNDAI dealer.
Instrument panel fuse panel
 |

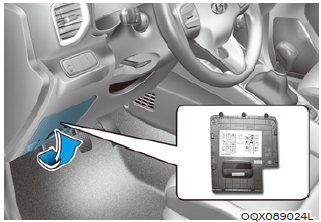

| Instrument panel fuse panel |
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle;
the information is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label.
 |
| Instrument Fuse Panel Diagram |
Instrument Panel Fuse Table
Fuse Name .. (Amp) ... Circuit Protected
POWER OUTLET 3 20A USB Charger
INTERIOR LAMP 10A Front Vanity Lamp LH/RH, Room Lamp, Map Lamp
HEATED MIRROR 10A Driver/Passenger Power Outside Mirror, A/C Control Module
P/WINDOW LH 25A Power Window Main Switch
FCA 10A Forward Collision Avoidance Assist Unit
POWER OUTLET 2 20A Front Power Outlet (Cigarette Lighter)
IBU 1 15A IBU
MULTIMEDIA 20A Audio, A/V & Navigation Head Unit
SAFETY P/ WINDOW 25A Driver Safety Power Window Module
P/WINDOW RH 25A Power Window Main Switch, Passenger Power Window Switch
TCU2 15A Transaxle Range Switch, Back-Up Lamp Switch
BRAKE SWITCH 10A IBU, Stop Lamp Switch
MEMORY 1 10A Instrument Cluster, A/C Control Module
START 7.5A [M/T] ECM, IBU, [IVT] Transmission Range Switch
S/HEATER 20A Front Seat Warmer Control Module
MODULE 1 7.5A Stop Lamp Switch, ATM Shift Lever
MEMORY 2 7.5A SRS Control Module
AIR BAG 10A Passenger Occupant Detection Sensor, SRS Control Module
DOOR LOCK 20A Tail Gate Relay, T/Turn Unlock Realy, Door Lock/Unlock Realy
ECU 6 10A ECM, PCM
DRL 10A DRL Relay
MODULE 6 10A Data Link Connector, Key Interlock Solenoid
T/SIGNAL LAMP 15A IBU (Integrated Body control Unit)
MODULE 2 10A Crash Pad Switch, Multifunction Camera Unit, Blind Spot Collision Warning Unit LH/RH SUNROOF 15A Sunroof Motor
MODULE 3 7.5A Console Switch, ATM Shift Lever Indicator, A/C Control Module, Audio, Front Seat Warmer Control Module
WIPER RR 15A E/R Junction Block (Wiper RR Relay), Rear Wiper Motor
WASHER 15A Multifunction Switch
A/BAG IND 7.5A Center Facia Switch, Instrument Cluster
IBU 2 7.5A IBU
ABS3 7.5A E/R Junction Block (Multipurpose Check Connector), ESC Module
WIPER FRT 25A E/R Junction Block (Wiper FRT Low Relay), Front Wiper Motor
A/C 2 7.5A E/R Junction Block (Blower Relay), A/C Control Module
HEATED STEERING 15A Not Used
CLUSTER 7.5A Instrument Cluster
MODULE 7 10A Power Outlet Relay, Power Outside Mirror Switch, IBU, Audio, A/V & Navigation Head Unit
MDPS 2 7.5A MDPS Unit
MODULE 5 10A IBU, Front Seat Warmer Control Module
MODULE 4 7.5A IBU
A/C 3 7.5A Blower Motor, A/C Control Module
Engine compartment fuse panel
 |
| Engine compartment fuse panel |
Inside the fuse/relay box cover, you can find the fuse/relay label describing fuse/ relay names and ratings.
Information
Not all fuse panel descriptions in this manual may be applicable to your vehicle;
the information is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
 |
| Engine compartment fuse panel Diagram |
Engine compartment fuse Table
Fuse Name ... (Amp) ... Circuit Protected
MULTI FUSE
ALT 125A Alternator, Multi Fuse - MDPS 1, Fuse - Rear Heated, Blower, ABS 1, ABS 2
MDPS 1 80A MDPS Unit
ALT 125A Alternator, Multi Fuse - MDPS 1, Fuse - Rear Heated, Blower, ABS 1, ABS 2
MDPS 1 80A MDPS Unit
FUSE
REAR HEATED 40A ICU Junction Block (Rear Heated Relay)
ABS 1 40A Multipurpose Check Connector, ESC Module
ABS 2 40A ESC Module
BLOWER 40A Blower Relay
WIPER 10A Wiper FRT LO Realy, IBU
ECU2 15A ECM/PCM
ECU4 15A ECM/PCM
ECU5 15A ECM/PCM
IGN COIL 20A Ignition Coil #1~#4
INJECTOR 15A ECM/PCM, Injector #1~#4, Fuel Pump Relay
PTC HEATER 50A PTC (Positive Temperature Coefficient) Heater Relay
B+3 50A ICU Junction Block (Fuse - DOOR LOCK, S/HEATER, SAFETY P/WINDOW, SUNROOF, Power Window Relay)
IG2 40A Start Relay, PDM Relay Box (IG2 Relay), Ignition Switch
COOLING FAN 40A Cooling Fan 1/2 Relay
B+4 40A ICU Junction Block (Fuse - MODULE 6, BRAKE SWITCH, T/SIGNAL LAMP, DRL, IBU 1, Leak Current Autocut Device)
ECU1 30A Main Relay, Fuse - ECU 4, ECU 5
A/C 1 10A A/C Relay
FUEL PUMP 20A Fuel Pump Relay
HORN 15A Horn Relay
B+2 30A ICU Junction Block (IPS (5CH) E-SWITCH, IPS (2CH))
IG1 30A [With Smart Key] PDM Relay Box (IG1 Relay) [W/O Smart Key] Ignition Switch
POWER OUTLET 1 40A ICU Junction Block (Power Outlet Relay)
B+1 30A ICU Junction Block (IPS (5CH) E-SWITCH, IPS (1CH))
