2021 Acura TLX Fuse Table

Fuse Locations

If any electrical devices are not working, set the power mode to VEHICLE OFF (LOCK) and check to see if any applicable fuse is blown.



Engine Compartment Fuse Box Type A



Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.
Located at the engine compartment on the left side. Push the tabs to open the box.

Engine Compartment Fuse Type A

Circuit protected and fuse rating

#  ... Circuit Protected  ... Amps
1
FUSE BOX MAIN 60 A
PREMIUM AMP* (40 A)
BASE AMP* (30 A)
FET MODULE 1 30 A
ST MAGNET SW 30 A
WIPER MOTOR 30 A
− −
2
− (70 A)
FUSE BOX OPTION 1 30 A
− (40 A)
DR SEAT 60 A
IG MAIN 30 A
FET MODULE 2 30 A
3
− (40 A)
−*1
RFC 2*2
(30 A)*1
30 A*2
ABS/ VSA (Vehicle Stability Assist) MOTER 40 A
− (40 A)
− (40 A)
BLOWER MOTER 40 A

4
FET MODULE 3 60 A
VST 1 (Vehicle Safety Technology ) (30 A)
VST 2 (30 A)
SUB FAN*1
RFC 1*2 30 A

5 R H/L LO 10 A  (Right Head Lamp Low)
12 TCU 2 10 A
6 IG COIL 15 A
7 DBW*1 (Drive by wire) 15 A*1
8 DR P/SEAT 2 30 A
9 INJECTOR
20 A*1
15 A*2
10 TCU 3 10 A
11 L H/L LO 10 A  (Left Head Lamp Low)
12 TCU 2 10 A
13 TCU ( Transmission Control Unit) 15 A
14 MAIN RLY
15 A*1
20 A*2
15 VBS/VBU 10 A
16 BRAKE LT 5 A
17 BACK UP 10 A
18 WASHER 15 A
19 − −
20 − −
21 RR H/SEAT*1 (20 A)*1
22 − −
23 RFC RLY*2 10 A*2
24 AVC*2 20 A*2
25 − −
26 − −
27 − −
28 − −
29 − −
30 − −
31 FUEL PUMP 15 A
32 STARTER CUT 10 A
33 VSA (Vehicle Stability Assist) / ABS (Anti-lock brake system) 10 A
34 DR P/SEAT 1 30 A
35 DR P/SEAT 3 30 A
36 FR DEICER* (15 A)
37 STRLD 7.5 A
38 − −
39 MISS SOL 2*1 IG FI-ECU*2 10 A
40 IGPS (LAF)*1 ; IGPS (PCS)*2 10 A
41 IGPS SUB*1 ; IGPS (ABV)*2 10 A
42 VBACT*1 10 A*1
46 ACC (VST) 10 A
47 METER (VST) 10 A
48 BACK UP (VST) 10 A
49 IDAS (VST) 10 A
50 BCM (Body Control Module)  (VST) 10 A
51 − −
52 − −
53 − −
54 − −
55 − −
56 − −
57 − −

*1:2.0 L engine models
*2:3.0 L engine models

* Not available on all models

Engine Compartment Fuse Box Type B



Located near the fuse box type A.
Push the tabs to open the box.



Engine Compartment Fuse Box Type B

Locate the fuse in question by the fuse number and box cover number.



Circuit protected and fuse rating

#  .. Circuit Protected  ... Amps
1 MAIN FUSE 150 A*1 , 250 A*2
2 R/B ACG 125 A*1 , 200 A*2
3 EPS 80 A
4 VSA  40 A
5 ESB 40 A
6 − (30 A)*1 , (60 A)*2
7
FAN1*1 30 A*1
−*2 (60 A)*

*1:2.0 L engine models
*2:3.0 L engine models

Driver’s Side Interior Fuse Box

Located under the dashboard.

Driver’s Side Interior Fuse Box

Fuse locations are shown on the label on the under panel.
Locate the fuse in question by the fuse number and label number.

Circuit protected and fuse rating

#  ... Circuit Protected  ... Amps
1 − −
2 L SIDE DOOR UNLOCK 10 A
3 R SIDE DOOR UNLOCK 10 A
4 ACC 10 A
5 − −
6 SRS (Supplemental restraint system) 10 A
7 − −
8 R H/L HI 10 A
9 SMART 10 A
10 POWER DISTRIBUTION MODULE 10 A
11 L SIDE DOOR LOCK 10 A
12 DR DOOR LOCK (10 A)
13 R SIDE DOOR LOCK 10 A
14 A/C (Air Conditioner) 10 A
15 DRL (Daytime running light) 10 A
16 CTR ACC SOCKET 20 A
17 HAZARD 10 A
18 L H/L HI 10 A (Left Head Lamp High)
19 HORN 15 A
20 IMG 10 A
21 DR DOOR UNLOCK (10 A)
22 − −
23 − −
24 − −
25 − −
26 − −
27 − −
28 − −
29 FUSE BOX ENGINE COMPARTMENT 20 A
30 − −

31 − −
32 RADIO 15 A
33 − −
34 − −
35 ACG 10 A
36 METER 10 A
37 OPTION 10 A
38 MOONROOF 20 A
39 − −
40 − −
41 − −
42 HEATED STEERING WHEEL* (10 A)
43 − −
44 − −
45 TCU 10 A
46 SRS 10 A
47 − −
48 SBW 10 A
49 DOOR LOCK 20 A
50 FRONT ACC SOCKET 20 A
51 REAR R P/W 20 A
52 RR L P/W 20 A
53 AS P/W 20 A
54 DRIVER P/W 20 A  (Driver Power Window)
55 − −

* Not available on all models



Rear Fuse Box

Located on the left side of cargo area.
Remove the cover by pushing on the tab.

Rear Fuse Box



Fuse locations are shown on the cover.
Locate the fuse in question by the fuse number and box cover number

Circuit protected and fuse rating

#  ... Circuit Protected  ... Amps
1 PASSENGER P/SEAT 2 30 A
2 BMS 10 A
3 ACTIVE EXHAUST VALVE* (15 A)
4 4WD* (10 A)
5 PASSENGER P/SEAT 1 30 A
6 PASSENGER P/SEAT 3 30 A
7 ACTIVE DAMPER SYSTEM* (15 A)
8 − −
9 − −
10 − −
11 − −
12 FUEL PUMP 30 A
13 − −
14 REAR DEFROSTER 40 A
15 4WD* (30 A)
16 − −
17 IG MAIN 2 30 A
18 − −
19 − −

* Not available on all models

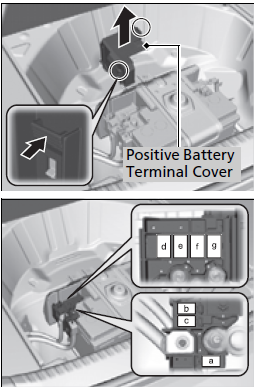

Trunk Room Fuse Box

Located under the trunk room near the + terminal on the battery.



Trunk Room Fuse Box

Models without optional spare tire



Pull up on the trunk floor lid strap, and remove the tool case.
Getting Ready to Temporarily Repair the Flat Tire.


Models with optional spare tire



Pull up on the trunk floor lid strap, unscrew the wing bolt, and remove the tool case.
Then, remove the compact spare tire and battery cover.
Checking the Battery.


All models



Remove the cover on the + terminal (as shown).
Replacement of this fuse should be done by a dealer.

Circuit protected and fuse rating

# .. Circuit Protected  ... Amps
a Battery 450 A
b − 150 A
c Jump Start Box 200 A
d − 80 A
e Rear Box 1 70 A
f Fuse Box 2 60 A
g Rear Box 2 70 A

Inspecting and Changing Fuses





Blown Fuse

1. Set the power mode to VEHICLE OFF (LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine compartment.
- If the fuse is blown, use a Phillips-head screwdriver to remove the screw and replace it with a new one.
4. Inspect the small fuses in the engine compartment and the vehicle interior.

- If there is a blown fuse, remove it with the fuse puller and replace it with a new one.

5. Check the fuses on the battery in the trunk room.
If the fuse is blown, have it replaced by a dealer.

NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system. Use the charts to locate the fuse in question and confirm the specified amperage on the fuse label.

Replace fuse with a spare fuse of the same specified amperage.

There is a Fuse Puller on the back of the cover of the engine compartment fuse box type A.
