2015 - 2020 Acura TLX Fuse Box

2020 Acura TLX



Fuses



If any electrical devices are not working, set the power mode to VEHICLE OFF (LOCK) and check to see if any applicable fuse is blown.

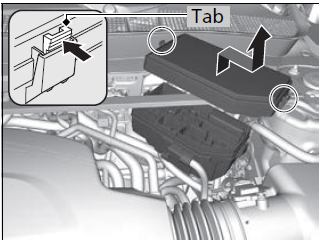

Engine Compartment Fuse Box Type A

Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.
Located near the brake fluid reservoir. Push the tabs to open the box.

Engine Compartment Fuse Type A



Circuit protected and fuse rating

# .. Circuit Protected .. Amps
1
EPS 70 A
Sub Fuse Box 60 A
ABS (Anti-lock brake system) / VSA (Vehicle Stability Assist) Motor 40 A
ABS/VSA FSR 20 A
Main Fan*2, *3 30 A
Main Fuse 125 A
2
IG Main 30 A
F/B Main 60 A
F/B Main 2 60 A
Headlight Main 30 A
IG Main 2 30 A
Starter Cut 1 40 A
Injector*2, *3    Sub Fan*1   20 A
Rear Defroster 40 A
Main Fan*1   Sub Fan*2, *3  30 A
Wiper 30 A
Heater Motor 40 A
3
Headlight Washer*2, *3 (30 A)
Left Electric Parking Brake 30 A
Right Electric Parking Brake 30 A
Driver Thigh Support* (30 A)  (2015 - 2017 Models - SH-AWD*3  20A)

4 − −
5 − −
6 − −
7 − −
8 STRLD*1, *2 7.5 A
9 Interior Lights*1, *2 5 A
10 Headlight Low/High Main 20 A
11 Oil Level 7.5 A
12 Front Fog Lights* (7.5 A)
13 Passenger’s Power Seat Reclining 20 A
14 Hazard 15 A
15 IGP2 15 A
16 IG Coil 15 A
17
Stop*1, *2 10 A
SH-AWD* 20A (2015 - 2017 Model - Empty)

18 Horn 10 A
19
Audio*1, *2 20 A
Interior Light*3 5 A

20 ACM*2, *3    Injector*1  20 A

21 FI Main 15 A
22 DBW (Drive by wire) 15 A
23 TCU (Transmission Control Unit) / SBW (Shift By Wire) *2, *3 10A
24 Premium AMP 30 A
25 MG (Magnetic) Clutch 7.5 A
26 Passenger’s Power Seat Sliding 20 A
27 Parking Lights*1, *2 15 A
28 BMS 7.5 A
29 Back Up 10 A

*1:4-cylinder models
*2:6-cylinder models with 2WD
*3:6-cylinder models with AWD



* Not available on all models

Engine Compartment Fuse Box Type B



Located near the washer fluid cap. Push the tabs to open the box.

Engine Compartment Fuse Type B

Circuit protected and fuse rating

# .. Circuit Protected  ... Amps
1 Left Headlight Low Beam 7.5 A
2 Right Headlight Low Beam 7.5 A
3 Right Headlight High Beam 7.5 A
4 Left Headlight High Beam 7.5 A



Driver’s Side Interior Fuse Box Type A

Located under the dashboard.

 Driver’s Side Interior Fuse Box Type A

Fuse locations are shown on the label on the under panel.
Locate the fuse in question by the fuse number and label number.

Circuit protected and fuse rating

# .. Circuit Protected ..  Amps
1 A/C (Air conditioner) 7.5 A
2 DRL (Daytime running light) 7.5 A
3 ST Motor (7.5 A)
4 − −
5 Meter*1 ,  Auto Dimming Mirror*2   7.5 A
6 SRS (Supplemental restraint system) (7.5 A)
7 Option 7.5 A
8 MISS SOL*3 (15 A)
9 Fuel Pump 20 A
10 ABS/VSA*1  Smart*2   (7.5 A)
11 Spare Fuse 30 A
12 Wiper 7.5 A
13 ACG 15 A
14 Accessory Power Socket (Console Compartment) 20 A
15 Driver’s Power Seat Reclining 20 A
16 Moonroof 20 A
17 AVS/Seat Heaters 20 A
18 − −
19 Passenger’s Side Door Unlock 10 A
20 Driver’s Side Rear Door Unlock 10 A
21 Driver’s Side Door Lock (10 A)
22 Passenger’s Side Door Lock 10 A
23 Driver’s Side Door Unlock (10 A)
24 SRS (Supplemental restraint system) 10 A
25 Instrument Panel Lights 7.5 A
26 ACC ( Adaptive Cruise Control) Key Lock 7.5 A

27 Parking Lights 7.5 A
28 Lumbar Support 10 A
29 Right DRL 7.5 A
30 Washer 20 A
31 SMART 10 A
32 Driver’s Side Power Window 20 A
33 Passenger’s Side Power Window 20 A
34 Rear Driver’s Side Power Window 20 A
35 Rear Passenger’s Side Power Window 20 A
36 Driver’s Power Seat Sliding 20 A
37 ACCESSORY 7.5 A
38 − −
39 Left DRL 7.5 A
40 Accessory Power Socket (Center Pocket) 20 A
41 Rear Driver’s Side Door Lock 10 A
42 Door Lock 20 A

Rear Seat Heater* (15 A)
Heated Steering Wheel* (10 A)

A − −
B − −
C Meter*2 7.5 A
D Back Up*2 10 A
E Stop*2 7.5 A
F Parking Lights*2 15 A
G

Audio ACC*2 7.5 A
Rear Seat Heater*, *1, *2, *3 (15 A)
A ABS/ VSA (Vehicle Stability Assist)  *2 7.5 A
B MICU*2 7.5 A
C − −
D − −
E STRLD*2 7.5 A
F Audio*2 20 A
G

ACM*2 7.5 A
Heated Steering Wheel*, *1, *2, *3 (10 A)



*1:2WD models
*2:AWD models
*3:4-cylinder models


* Not available on all models



Driver’s Side Interior Fuse Box Type B


Located inside the driver’s side outer panel. When you remove the outer panel, use the following procedure.



Driver’s Side Interior Fuse Box Type B

1. Grasp the bottom edge of the outer panel.
2. Pull the panel towards you, then remove it.


Fuse locations are shown on the outer panel.


Circuit protected and fuse rating

# .. Circuit Protected ..  Amps

1 P-AWS L (40 A)
2 e-pretensioner Right* (20 A)
3 e-pretensioner Left* (20 A)
4 ACC  Radar * (10 A)
5 Idle Stop*1 (30 A)
6 P-AWS R (40 A)
7 FR DE-ICE* (15 A)
8 Idle Stop*1 (30 A)



* Not available on all models

*1:AWD models



Inspecting and Changing Fuses





1. Set the power mode to VEHICLE OFF (LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine compartment.
- If the fuse is blown, use a Phillips-head screwdriver to remove the screw and replace it with a new one.
4. Inspect the small fuses in the engine compartment and the vehicle interior.

- If there is a blown fuse, remove it with the fuse puller and replace it with a new one.

5. Check the fuses on the battery in the trunk room.
If the fuse is blown, have it replaced by a dealer.

NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system. Use the charts to locate the fuse in question and confirm the specified amperage on the fuse label.

Replace fuse with a spare fuse of the same specified amperage.

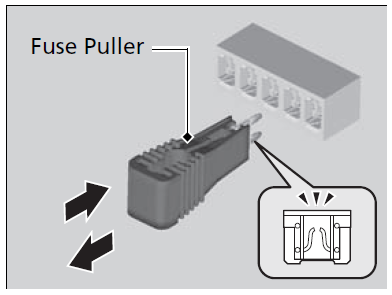

There is a Fuse Puller on the back of the engine compartment fuse box cover.
