2013 - 2015 Acura RDX Fuse Table

2015 Acura RDX

Fuse Locations

If any electrical devices are not working, set the power mode to VEHICLE OFF (LOCK) and check to see if any applicable fuse is blown.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.



Engine Compartment Fuse Box

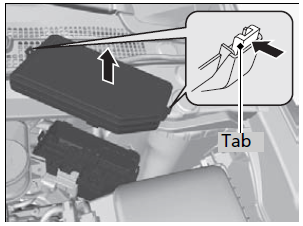

Located near the brake fluid reservoir. Push the tabs to open the box.

Engine Compartment Fuse Box

Circuit protected and fuse rating



# ... Circuit ... Protected Amps

1
EPS 70 A
Power Tailgate Motor* (40 A)
ABS/VSA FSR 20 A
ABS/VSA Motor 40 A
E-DPS 30 A
Main Fuse 120 A
2
ST CUT 50 A
Fuse Box Main 1 60 A
Fuse Box Main 2 60 A
IG Main 50 A
Headlight Washer (30 A)
Sub Fan Motor 30 A
Rear Defogger 40 A
Main Fan Motor 30 A
Headlight Main 30 A
Blower 40 A
3
Driver's Power Seat Sliding 20 A
Driver's Power Seat Reclining 20 A
Passenger's Power Seat Sliding 20 A
Passenger's Power Seat Reclining 20 A
4 − −
5 STR Diagnosis Fuse 7.5 A
6 − −
7 − −
8 − −

9 − −
10 − −
11 Oil Level 7.5 A
12 Fog Lights* (20 A)
13 Power Tailgate Closer* (20 A)
14 Hazard 10 A
15 IGP2 15 A
16 IG Coil 15 A
17 Stop 10 A
18 Horn 10 A
19 ACM 10 A
20 Right Headlight Low Beam
10 A*1
15 A*2
21 MG Clutch 7.5 A
22 DBW 15 A
23 Left Headlight Low Beam
10 A*1
15 A*2
24 ACC ( Adaptive Cruise Control) 10 A
25 FI Main (15 A)
26 Trailer (20 A)
27 Small 20 A
28 Interior Lights 7.5 A
29 Back Up 10 A

*1:Models with halogen low beam headlight bulbs
*2:Models with high voltage discharge tube bulbs

* Not available on all models

Interior Fuse Box

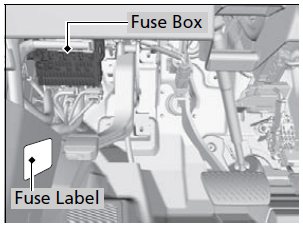

Located under the dashboard.

Interior Fuse Box

Fuse locations are shown on the label on the side panel.
Locate the fuse in question by the fuse
number and label number.

Circuit protected and fuse rating



# ... Circuit ... Protected Amps

1 − −
2 ACG 15 A
3 SRS (Supplemental restraint system) 10 A
4 Fuel Pump 15 A
5 Meter 7.5 A
6 Option 7.5 A
7 VB SOL 10 A
8 Front Right Side Door Lock Motor (Unlock) 15 A
9 Rear Left Side Door Lock Motor (Unlock) 15 A
10 Power Lumbar 7.5 A
11 Moonroof 20 A
12 Accessory Power Socket (Center Console) 15 A
13 Washer Main 15 A
14 Seat Heaters 15 A
15 Driver’s Door Lock Motor (Unlock) 10 A
16 − −
17 − −
18 − −
19 ACC 7.5 A
20 ACC Key Lock 7.5 A
21 Daytime Running Lights 7.5 A
22 A/C (Air conditioner)  7.5 A
23 Rear Wiper 10 A
24 ABS / VSA (Vehicle Stability Assist) 7.5 A
25 − −
26 Audio Amp 20 A
27 Accessory Power Socket (Front) 15 A
28 − −
29 ODS (Occupant Detection System) 7.5 A
30 Driver’s Door Lock Motor (Lock) 10 A
31 Smart 10 A
32 Front Right Side Door Lock Motor (Lock) 15 A
33 Rear Left Side Door Lock Motor (Lock) 15 A
34 Small Lights 7.5 A
35 Illumination 7.5 A
36 Rear Wiper Main 10 A
37 − −
38 Left Headlight High Beam 10 A
39 Right Headlight High Beam 10 A
40 TPMS (Tire pressure monitoring system) 7.5 A
41 Door Lock 20 A
42 Driver’s Power Window 20 A
43 Rear Right Side Power Window 20 A
44 Front Right Side Power Window 20 A
45 Rear Left Side Power Window 20 A
46 Wiper 30 A



Inspecting and Changing Fuses





1. Set the power mode to VEHICLE OFF (LOCK). Turn headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine compartment.
- If the fuse is blown, use a Phillips-head screwdriver to remove the screw and replace it with a new one.
4. Inspect the small fuses in the engine compartment and the vehicle interior.

- If there is a blown fuse, remove it with the fuse puller and replace it with a new one.

NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system. Use the charts to locate the fuse in question and confirm the specified amperage on the fuse label.

Replace fuse with a spare fuse of the same specified amperage.

There is a Fuse Puller on the back of the cover of the engine compartment fuse box type A.
