Fuse Box: 2019 - 2021 Kia Forte Fuse Box Diagram

2021 Kia Forte (Cerato)

Fuses and Relays

Left side : Normal , Right side : Blown

A vehicle’s electrical system is protected from electrical overload damage by fuses.
This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.

If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will melt.
If the electrical system does not work, first check the driver’s side fuse panel.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized Kia dealer.
Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.

WARNING - Fuse replacement
• Never replace a fuse with anything but another fuse of the same rating.
• A higher capacity fuse could cause damage and possibly a fire.
• Never install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and a possible fire.
• Do not arbitrarily modify or add-on electric wiring to the vehicle.

CAUTION
Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.

NOTICE
• When replacing a fuse, turn the ignition "OFF", turn off switches of all electrical devices, and then remove the battery (-) terminal.
• The actual fuse/relay panel label may differ from equipped items.

WARNING - Electrical Fire
Always ensure replacements fuses and relays are securely fastened when installed. Failure
to do so can result in a vehicle fire.

CAUTION
• When replacing a blown fuse or relay, make sure the new fuse or relay fits tightly into the clips. Failure to tightly install the fuse or relay may cause damage to the wiring and electric systems.
• Do not remove fuses, relays and terminals fastened with bolts or nuts.The fuses, relays
and terminals may not be fastened correctly which may cause vehicle damage.

CAUTION
• Do not input any other objects, such as a screwdriver or wiring, except fuses or relays into the fuse/relay terminals.
• Do not plug in screwdrivers or aftermarket wiring into the terminal originally designed for
fuse and relays only. The electrical system and wiring of the vehicle interior may be damaged
or burned due to contact failure.
• If you directly connect the wire on the taillight or replace the bulb which is over the regulated
capacity to install trailers etc., the inner junction block can get burned.

CAUTION
Visually inspect the battery cap to ensure it is securely closed. If the battery cap is not securely closed, moisture may enter the system and damage the electrical components.

WARNING - Electrical wiring repairs
All electrical repairs should be performed by authorized Kia dealerships using approved Kia
parts. Using other wiring components, especially when retrofitting an Infotainment system
or a theft alarm system, remote engine control, car phone or radio may cause vehicle damage
and increase the risk of a vehicle fire.

NOTICE - Remodeling Prohibited
Do not rewire your vehicle in any way as doing so may affect the performance of several safety features in your vehicle. Rewiring your vehicle may also void your warranty and cause you to be responsible for any subsequent vehicle damage which may result.

✽ NOTICE - Window tinting precaution
Window tint (especially metallic film) might cause communication errors or poor radio reception, and a malfunctioning automatic lighting system due to reflections from the mirror tint inside the vehicle. The tint installation solution used might also leak into the electronic components, causing malfunctions or damage.

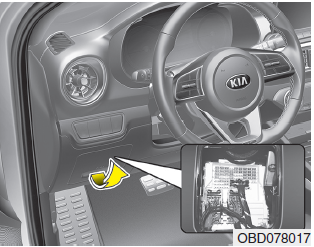

Inner panel fuse replacement

1. Turn the ignition switch and all other switches off.

2. Open the fuse panel cover.
If the switch is located in the “OFF” position, a caution indicator will be displayed in the cluster.
To identify the location of a specific fuse, please refer to the inside of the fuse panel cover and the description list in this section.

Fuse Puller Location

3. Pull the suspected fuse straight out. Use the removal tool provided on the engine compartment fuse panel cover.
4. Check the removed fuse; replace it if it is blown.
Spare fuses are provided in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, consult an authorized Kia dealer.
If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the power outlet fuse.

If the head lamp, turn signal lamp, stop signal lamp, fog lamp, Daytime Running Lights (DRL), tail lamp, High mounted stop lamp (HMSL) do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced.

✽ NOTICE
If the headlamp, fog lamp, turn signal lamp, or tail lamp malfunction even without any problem to the lamps, have the vehicle checked by an authorized Kia dealer for assistance.

Engine compartment fuse replacement

1. Turn the ignition switch and all other switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the cover up.

3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Kia dealer.

CAUTION
Always securely install the fuse panel cover in the engine compartment to protect against
electrical failure which may occur from water contact.
Listen for the audible clicking sound to ensure the fuse panel cover is securely fastened.

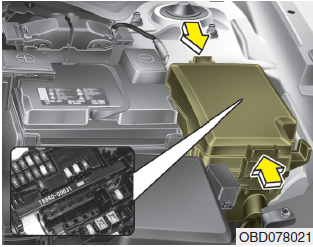

Multi fuse

✽ NOTICE
Do not disassemble nor assemble a multi fuse when it is secured with nuts and bolts. Incorrect or partial assembly torque may cause a fire.
Have the vehicle checked by an authorized Kia dealer.

Main fuse

✽ NOTICE
Do not disassemble nor assemble a main fuse when it is secured with nuts and bolts. Incorrect or partial assembly torque may cause a fire. Have the vehicle checked by an
authorized Kia dealer.

NOTICE
The electronic system may not function correctly even when the engine compartment and internal fuse box’s individual fuses are not disconnected.
If this occurs, the cause of the problem may be disconnection of the main fuse (BFT type),
which is located inside the positive battery terminal (+) cap.
Since the main fuse is designed more intricately than other parts, have the vehicle checked by an authorized Kia dealer.

Battery fuse

If the battery fuse is blown, it must be removed as follows:
1. Disconnect the negative battery cable.
2. Replace the fuse with a new one of the same rating.
3. Reinstall in the reverse order of removal.

CAUTION
Visually inspect the battery cap for secure closing. If the battery cap is not securely latched, the electrical system may be damaged due to influx of moisture into the system.

Fuse/relay panel description

Driver’s side fuse panel

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicle.

Driver’s side fuse panel Diagram

Fuse Name .. Fuse rating .. Circuit Protected
MEMORY 1 10A Driver IMS (Integrated memory system) Module,Air Conditioner Control Module, Instrument Cluster
MODULE 1 10A Key Interlock Switch,Data Link Connector, Hazard Switch, Driver/Passenger Smart Key Outside Handle, ICM (Integrated Circuit Module) Relay Box (Outside Mirror Folding/Unfolding Relay), Mood_LP_Unit TRUNK 10A Trunk Relay
POWER WINDOW RH 25A Power Window Right Handle side Relay
POWER WINDOW LH 25A Power Window Left Handle side Relay, Driver Safety Power Window Module
POWER SEAT DRIVER 25A Driver Seat Manual Switch
MODULE 4 7.5A Lane Keeping Assist Unit, IBU (Integrated Body Control Unit), Forward Collision Avoidance Assist Unit, Blind-Spot Collision Warning Unit Left Handle side/Right Handle side
SEAT HEATER REAR 15A Rear Seat Warmer Control Module
HEATED MIRROR 10A Driver/Passenger Power Outside Mirror, Air Conditioner Control Module, ECM (Engine Control Module)/PCM (Power train Control Module)
SEAT HEATER FRONT 20A Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
AMP 25A AMP (Amplifier)
MULTI MEDIA 15A Audio/Video & Navigation Head Unit

MODULE 5 10A Crash Pad Switch, Head Lamp Left Handle side/Right Handle side, Auto Transmission Shift Lever Indicator, Electro Chromic Mirror, Audio/Video & Navigation Head Unit, Air Conditioner Control Module, Rear Seat Warmer Control Module, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
DOOR LOCK 20A Door Lock/Unlock Relay, ICM (Integrated Circuit Module) Relay Box (Two Turn Unlock Relay), Driver IMS (Intergrated memory system) Module
IBU 1 15A IBU (Integrated Body Control Unit)
BRAKE SWITCH 10A IBU (Integrated Body Control Unit), Stop Lamp Switch
IG1 25A Engine Room Junction Block (Fuse - ABS 3, ECU 5, SENSOR 4, TCU 2)
WIPER (LO/HI) 10A Engine Room Junction Block (Front Wiper (Low) Relay), Front Wiper Motor, ECM (Engine Control Module)/PCM (Power train Control Module), IBU (Integrated Body Control Unit)
AIR CONDITIONER1 7.5A Engine Room Junction Block (Blower, PTC Heater), Air Conditioner Control Module
AIR BAG 2 10A SRS (Supplemental Restraint System) Control Module
WASHER 15A Multifunction Switch
MDPS 7.5A MDPS (Motor Driven Power Steering) Unit
MODULE 7 7.5A Rear Seat Warmer Control Module, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module, ESG_UNIT
SUNROOF 1 15A Sunroof Motor, ESG_UNIT
CLUSTER 7.5A Instrument Cluster
MODULE 3 7.5A Sport Mode Switch, Stop Lamp Switch
START 7.5A ICM (Integrated Circuit Module) Relay Box (Burglar Alarm Relay), Transmission Range Switch, IBU (Integrated Body Control Unit), ECM (Engine Control Module)/PCM (Power train Control Module), Engine Room Junction Block (Start)
IBU 2 7.5A IBU (Integrated Body Control Unit)

AIR BAG INDICATOR 7.5A Instrument Cluster, Air Conditioner Control Module
MODULE 6 7.5A IBU (Integrated Body Control Unit)
MODULE 2 10A Audio/Video & Navigation Head Unit, IBU (Integrated Body Control Unit), Rear USB Charger, Wireless Charger, AMP (Amplifier), Power Outside Mirror Switch, Engine Room Junction Block (Power Outlet)
AIR BAG 1 15A SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor
AIR CONDITIONER 2 10A Engine Room Junction Block (BLOWER Relay), Air Conditioner Control Module, Blower Resistor, Blower Motor
POWER OUTLET 20A Cigarette Lighter

Engine compartment fuse panel

Engine compartment fuse panel Diagram

Fuse Name .. Fuse rating .. Circuit Protected

MULTI FUSE-1
ALTERNATOR

200A ((Gasoline engine) 2.0 MPI); 150A ((Gasoline engine) 1.6 T-GDi)
Fuse : BURGLAR ALARM, ABS1, ABS2, POWER OUTLET1, Alternator

MDPS 80A MDPS (Motor Driven Power Steering) Unit

MULTI FUSE-2
B+5 60A Fuse : ECU 3, ECU 4, HORN, WIPER, A/C, Engine Control Relay
B+2 60A Instrument Panel Junction Block
B+3 60A Instrument Panel Junction Block
B+4 50A Instrument Panel Junction Block (Fuse : POWER WINDOW LH, POWER WINDOW RH, TRUNK, SUNROOF 1, SEAT HEATER FRONT, AMP, POWER SEAT DRIVER)
COOLING FAN 1 60A [(Gasoline engine) 1.6 T-GDi] Cooling Fan 1 Relay
REAR HEATED 40A Rear Heated Relay
BLOWER 40A BLOWER Relay
IG1 40A Ignition Switch, PDM #2 (ACC) Relay, PDM #3 (IG1) Relay
IG2 40A Ignition Switch, PDM #4 (IG2) Relay, START Relay

MULTI FUSE-3
PTC HEATER 50A PTC Heater Relay

FUSE
POWER OUTLET 2 20A Front Power Outlet

TCU 1 15A [(Gasoline engine) 1.6 T-GDi] TCM (Transmission Control Module)
VACUUM PUMP 20A [(Gasoline engine) 1.6 T-GDi] Vacuum Pump
FUEL PUMP 20A Fuel Pump Relay
COOLING FAN 2 30A [(Gasoline engine) 2.0 MPI] Cooling Fan 2 Relay, Cooling Fan 3 Relay
B+1 40A Instrument Panel Junction Block (Long Term Load Latch Relay, Fuse : (BRAKE SWITCH, IBU 1, AIR BAG 2, DOOR LOCK, SEAT HEATER REAR, MODULE 1))
DCT 1 40A [(Gasoline engine) 1.6 T-GDi] TCM (Transmission Control Module)
DCT 2 40A [(Gasoline engine) 1.6 T-GDi] TCM (Transmission Control Module)
ABS 1 40A ABS (Anti-lock brake system) Module, ESC (Electronic Stability Control) Module
ABS 2 30A ABS (Anti-lock brake system) Module, ESC (Electronic Stability Control) Module
POWER OUTLET 1 40A Power Outlet Relay
SENSOR 2 10A [(Gasoline engine) 2.0 MPI] Purge Control Solenoid Valve, Oil Control Valve #1/#2/#3, Canister Close Valve, Mass Air Flow Sensor, A/Con Relay, E/R Junction Block (Cooling Fan Relay 2, Cooling Fan Relay 3), Variable Intake Sensor [(Gasoline engine) 1.6 T-GDi] Purge Control Solenoid Valve, Oil Control Valve #1/#2, Canister Close Valve, RCV Control Solenoid Valve, E/R Junction Block (Cooling Fan Relay 1)

ECU 2 10A [(Gasoline engine) 1.6 T-GDi] ECM (Engine Control Module)
ECU 1 20A
[(Gasoline engine) 2.0 MPI] PCM (Power train Control Module)
[(Gasoline engine) 1.6 T-GDi] ECM (Engine Control Module)
INJECTOR 15A [(Gasoline engine) 2.0 MPI] Injector #1~#4

SENSOR 1 15A
[(Gasoline engine) 2.0 MPI] Oxygen Sensor (Up), Oxygen Sensor (Down)
[(Gasoline engine) 1.6 T-GDi] Oxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL 20A
[(Gasoline engine) 2.0 MPI] Ignition Coil #1~#4
[(Gasoline engine) 1.6 T-GDi] Ignition Coil #1~#4
ECU 3 15A
[(Gasoline engine) 2.0 MPI] PCM (Power train Control Module)
[(Gasoline engine) 1.6 T-GDi] ECM (Engine Control Module)
A/CON COMP 10A [(Gasoline engine) 2.0 MPI] A/Con Relay
ECU 5 10A
[(Gasoline engine) 2.0 MPI] PCM (Power train Control Module)
[(Gasoline engine) 1.6 T-GDi] ECM (Engine Control Module)
SENSOR 4 15A [(Gasoline engine) 1.6 T-GDi] Vacuum Pump
ABS 3 10A ABS (Anti-lock brake system) Module, ESC (Electronic Stability Control) Module
TCU 2 15A
[(Gasoline engine) 2.0 MPI] Transmission Range Switch
[(Gasoline engine) 1.6 T-GDi] Transmission Range Switch, TCM
SENSOR 3 10A
[(Gasoline engine) 2.0 MPI] Fuel Pump Relay
[(Gasoline engine) 1.6 T-GDi] Fuel Pump Relay
ECU 4 15A
[(Gasoline engine) 2.0 MPI] PCM (Power train Control Module)
[(Gasoline engine) 1.6 T-GDi] ECM (Engine Control Module)
WIPER 25A
[(Gasoline engine) 2.0 MPI] Wiper Relay
[(Gasoline engine) 1.6 T-GDi] Wiper Relay
HORN 15A
[(Gasoline engine) 2.0 MPI] Horn Relay
[G(Gasoline engine) 1.6 T-GDi] Horn Relay

Relay Name ... Type
COOLING FAN 3 Relay MICRO
COOLING FAN 2 Relay MICRO
PDM 3 (IG1) Relay MICRO
START Relay MICRO
PDM 4 (IG2) Relay MICRO
FUEL PUMP Relay MICRO
PDM 2 (ACC) Relay MICRO
COOLING FAN 1 Relay MINI
BLOWER Relay MINI
PTC HEATER Relay MICRO
REAR HEATED Relay MICRO
POWER OUTLET Relay MICRO

Engine compartment fuse panel (Battery terminal cover)

✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

Engine compartment fuse panel Diagram (Battery terminal cover)
