| 2021 Fiat 500 |
FUSES REPLACEMENT
GENERAL INFORMATION
Fuses protect the electrical system:
they intervene (blow) in the event of a failure or improper action on the system.
Check the state of the corresponding fuse when a device does not work:
the filament (A) should be intact. If it is not, replace the blown fuse with another with the same amperage (same colour).
 |
| A - Good Fuse, C -Bloawn Fuse, D- Fuse Puller |
(B) = intact fuse;
(C) = fuse with damaged filament.
To facilitate fuse replacement, use the tongs (D) hooked inside the fusebox lid on the dashboard left-hand side.
Refer to the tables on the following pages to identify the protective fuse.For fuse replacement, contact a Fiat Dealership.
The fusebox is located on the lower left side of the dashboard .
Remove the dashboard panel to access the fusebox.
(C) = fuse with damaged filament.
To facilitate fuse replacement, use the tongs (D) hooked inside the fusebox lid on the dashboard left-hand side.
Refer to the tables on the following pages to identify the protective fuse.For fuse replacement, contact a Fiat Dealership.
DASHBOARD FUSE BOX
The fusebox is located on the lower left side of the dashboard .
Remove the dashboard panel to access the fusebox.
 |
| Dashboard Fuse Box |
 |
| Dashboard Fuse Panel Diagram |
USERS ... FUSE .... AMPERE
Power supply to the climate control system, FIAT Link & Drive, USB data port, Uconnect™ display, electric parking brake control, EOBD port F36 15 A
Unlocking the tailgate F38 20 A
Windscreen washer pump F43 20 A
Front electric window (driver side) F47 20 A
Front electric window (passenger side) F48 20 A
12V socket F94 15 A (Cigarette Lighter)
MOTOR COMPARTMENT FUSE BOX
The fusebox is located behind the DC/DC converter.
 |
| Engine Compartment Fuse Box Location |
WARNING
- If the replaced fuse blows again, contact a Fiat Dealership.
- If the replaced fuse blows again, contact a Fiat Dealership.
- Never replace a faulty fuse with metal wires or anything else.
- Never replace a fuse with another with a higher amp rating; RISK OF FIRE.
- If a general fuse (MEGA-FUSE, MIDIFUSE, MAXI-FUSE) blows contact a Fiat Dealership.
- Contact Fiat Dealership if a safety system (airbags, brakes), engine system (engine, gearbox) or steering system general protection fuse blows.
- Never replace a fuse with another with a higher amp rating; RISK OF FIRE.
- If a general fuse (MEGA-FUSE, MIDIFUSE, MAXI-FUSE) blows contact a Fiat Dealership.
- Contact Fiat Dealership if a safety system (airbags, brakes), engine system (engine, gearbox) or steering system general protection fuse blows.
IMPORTANT
- If you need to wash the engine compartment, take care not to directly hit the engine compartment fusebox with the water jet.
 |

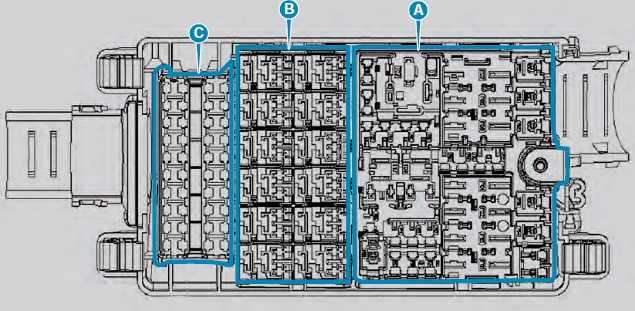

| Engine Compartment Fuse Panel |
Fuse box (A)
 |

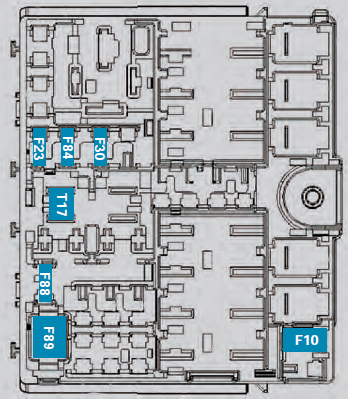

| Engine Compartment Fuse Panel A |
USERS .. FUSE .. AMPERE
Horn F10 10
Heated seats (where provided) F23 20
Heated windscreen (where provided) F30 20
12V boot power socket F84 20
Heated door mirrors (where provided) F88 7.5
Heated rear window F89 20
USERS .. RELAYS .. AMPERE
Door mirror/heated rear window defrosting T17 30
Fuse box (B)
 |
| Engine Compartment Fuse Panel B |
USERS .. RELAYS ... AMPERE
Heated seats (where provided) T02 30
Horn T03 20
Heated seats (where provided) T06 30
12V boot power socket T14 20
Heated windscreen (where provided) T90 30
Heated seats (where provided) T02 30
Horn T03 20
Heated seats (where provided) T06 30
12V boot power socket T14 20
Heated windscreen (where provided) T90 30
Fuse box (C)
 |

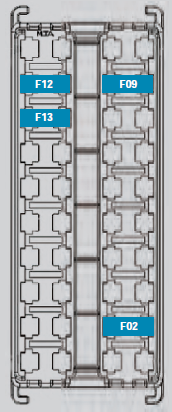

| Engine Compartment Fuse Panel C |
USERS ... FUSE ... AMPERE
Driver's side electric lock F02 10
Passenger's side electric lock F09 10
Sound system amplifier (where provided) F12 20
Sunroof movement (where provided) F13 20
