2018 - 2019 Kia Niro Hybrid / Plug-in Hybrid Fuse Box Diagram

2019 KIa Niro
2019 KIa Niro


Fuse Types


Fuse Types
Left side : Normal , Right side : Blown

A vehicle’s electrical system is protected from electrical overload damage by fuses.
This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.

If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will melt.
If the electrical system does not work, first check the driver’s side fuse panel.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized Kia dealer.
Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.

WARNING - Fuse replacement
• Never replace a fuse with anything but another fuse of the same rating.
• A higher capacity fuse could cause damage and possibly a fire.
• Never install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and a possible fire.

• Do not arbitrarily modify or add-on electric wiring to the vehicle.

CAUTION
Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.

NOTICE
• When replacing a fuse, turn the ignition "OFF", turn off switches of all electrical devices, and then remove the battery (-) terminal.
• The actual fuse/relay panel label may differ from equipped items.

WARNING - Electrical Fire
Always ensure replacements fuses and relays are securely fastened when installed. Failure
to do so can result in a vehicle fire.

Inner panel fuse replacement


Inner panel fuse replacement
Inner panel fuse replacement

1. Turn the engine start/stop button to the OFF position and all other switches off.
2. Open the fuse panel cover. If the switch is located in the “OFF” position, a caution indicator will be displayed in the cluster.


CAUTION
• When replacing a blown fuse or relay, make sure the new fuse or relay fits tightly into the clips. Failure to tightly install the fuse or relay may cause damage to the wiring and electric systems.
• Do not remove fuses, relays and terminals fastened with bolts or nuts.The fuses, relays
and terminals may not be fastened correctly which may cause vehicle damage.

CAUTION
• Do not input any other objects except fuses or relays into fuse/relay terminals, such as a
driver or wiring. It may cause contact failure and system malfunction.
• Do not plug in screwdrivers or aftermarket wiring into the terminal originally designed for
fuse and relays only. The electrical system and wiring of the vehicle interior may be damaged
or burned due to contact failure.
• If you directly connect the wire on the taillight or replace the bulb which is over the regulated
capacity to install trailers, etc., the inner junction block can get burned.

Fuse Puller Location
Fuse Puller Location

3. Pull the suspected fuse straight out. Use the removal tool provided on the engine compartment fuse panel cover.
4. Check the removed fuse; replace it if it is blown.
Spare fuses are provided in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

If it fits loosely, consult an authorized Kia dealer.
If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the power outlet fuse.
If the head lamp, turn signal lamp, stop signal lamp, fog lamp, DRL, tail lamp, HMSL do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced.

NOTICE
If the headlamp, fog lamp, turn signal lamp, or tail lamp malfunction even without any problem to the lamps, have the vehicle checked by an authorized Kia dealer for assistance.

CAUTION - Fuse Panel Covers
• Set all switches to ON before driving.
• If the vehicle is going to be unused for over 1 month, set all switches to OFF to prevent the batteries from draining.
• The contact points of the switches may wear out with excessive use. Please refrain from excessive use of the switches (except for long-term parking for over 1 month).


Fuse switch


Fuse Switch
Fuse Switch

Always set the fuse switch to the ON position before using the vehicle.
If you move the switch to the OFF position, some items such as audio and digital clock must be reset and transmitter (or smart key) may not work properly. When the switch is Off, the caution indicator will be displayed on the instrument cluster.
Always place the fuse switch in the ON position while driving the vehicle.
If the switch is located in the “OFF” position, a caution indicator will be displayed in the cluster.

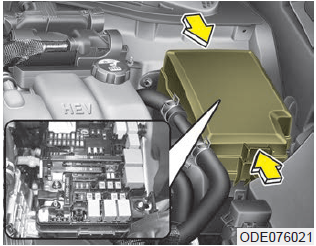

Engine Compartment Fuse Replacement


Engine compartment fuse replacement
Engine compartment fuse replacement

1. Turn the engine start/stop button to the OFF position and all other switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the cover up. When the blade type fuse is disconnected, remove it by using the clip designed for changing fuses located in the engine compartment fuse box. Upon removal, securely insert reserve fuse of the same rating.

3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult  an authorized Kia dealer.

CAUTION
After checking the fuse panel in the engine compartment, securely install the fuse panel
cover to protect against any electrical failure which may occur from water contact. Listen for the audible clicking sound to ensure the fuse panel cover is securely fastened.

Multi fuse


Multi fuse
Multi fuse

If the multi fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one  of the same rating.
5. Reverse these steps to reinstall the multi fuse.


NOTICE
Do not disassemble nor assemble the multi fuse when it is secured with nuts and bolts. Incorrect or partial assembly torque may cause a fire.
Have the vehicle checked by an authorized Kia dealer.

Main fuse (Plug-in Hybrid)


Main fuse (Plug-in Hybrid)
Main fuse (Plug-in Hybrid)

If the multi fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.
5. Reverse these steps to reinstall the multi fuse.

NOTICE
The electronic system may not function correctly even when the engine compartment and internal fuse box’s individual fuses are not disconnected.
In such case the cause of the problem may be disconnection of the main fuse (BFT type), which is located inside the positive battery terminal (+) cap.
Since the main fuse is designed more intricately than other parts, have the vehicle checked by an authorized Kia dealer.

CAUTION
Visually inspect the battery cap to ensure it is securely closed. If the battery cap is not securely closed, moisture may enter the system and damage the electrical components.

WARNING - Random wiring prohibited when retrofitting equipment
Use of random wiring in the vehicle might cause danger due to failure and damage of the
vehicle’s performance.
Using random wires especially when retrofitting AVN or theft alarm system, remote engine
control, car phone or radio might damage the vehicle or cause fire.


NOTICE - Remodeling Prohibited
Do not rewire your vehicle in any way as doing so may affect the performance of several safety features in your vehicle. Rewiring your vehicle may also void your warranty and
cause you to be responsible for any subsequent vehicle damage which may result.

Driver’s side fuse panel


Driver’s side fuse panel
Driver’s side fuse panel

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

Driver’s side fuse panel Diagram (Hybrid)
Driver’s side fuse panel Diagram (Hybrid)

Driver’s side fuse panel Diagram (Plug-in Hybrid)
Driver’s side fuse panel Diagram (Plug-in Hybrid)


Instrument panel (Driver’s side fuse panel) (Hybrid)


Fuse Name  ... Fuse rating  ...  Circuit Protected
MODULE 5 10A Electro Chromic Mirror, Audio/Video & Navigation Head Unit, Audio, Driver IMS (Integrated memory system) Module, VESS (Virtual Engine Sound System) Unit, Shift Lever Indicator, Air Conditioner Control Module, Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, Head Lamp Leveling Device Actuator LH/RH, Auto Head Lamp Leveling Device Module, Crash Pad Switch
MODULE 4 10A Lane Keeping Assist Control Module, Crash Pad Switch, AEB (Automatic Emergency Braking) Module, Blind Spot Detection Radar LH/RH, AFLS (Adaptive Front Lighting System) Unit
INTERIOR LAMP 10A Front Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Ignition Key ILL. & Door Warning Switch, Luggage Lamp
A/BAG 15A SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor
IG 1 25A Engine Room Junction Block (Fuse - DCT4, HPCU2, ACTIVE HYDRAULIC BOOSTER3, ECU3)
CLUSTER 10A Instrument Cluster
MODULE 3 10A BCM (Body Control Module), DCT (Dual Clutch Transmission) Shift Lever, Stop Lamp Switch, Driver Door Module, Passenger Door Module
MEMORY 2 7.5A Active Air Flap Unit
MODULE 8 10A Active Air Flap Unit, Electric Water Pump (Engine), Engine Room Junction Block (Battery C/Fan Relay), BMS (Battery Management System) Control Module
A/BAG IND 7.5A Air Conditioner Control Module, Instrument Cluster
START 7.5A [Without Smart Key & Without Immobilizer] Burglar alarm Relay [With Smart Key/With Immobilizer] Inhibitor Switch

MODULE 2 10A Engine Room Junction Block (Power Outlet Relay), Wireless Charger, BCM  (Body Control Module), USB Charger, Smart Key Control Module, Audio, BMS (Battery Management System) Control Module, Audio/Video & Navigation Head Unit, Driver Power Outside Mirror Switch, AMP (Amplifier)
PDM 3 7.5A [Without Smart Key] Immobilizer Module [With Smart Key] Smart Key Control Module
MEMORY 1 10A Instrument Cluster, Driver IMS (Integrated memory system) Module, BCM (Body Control Module), Air Conditioner Control Module, Auto Light & Photo Sensor, Driver Door Module, Passenger Door Module, ICM Relay Box (Outside Mirror Folding/Unfolding Relay), Wireless Charger
MULTI MEDIA 15A Audio, Audio/Video & Navigation Head Unit
EEWP 10A Electric Water Pump (HEV - [Hybrid Electric Vehicle])
MDPS 7.5A MDPS (Motor Driven Power Steering) Unit
TAIL GATE 10A Tail Gate Relay, ICM Relay Box (Fuel Filler Door Relay), Fuel Filler Switch
PDM 1 15A Smart Key Control Module
MODULE 7 7.5A Front Seat Warmer Control Module, AC Inverter (220V), Front Air Ventilation Seat Control Module, Rear Seat Warmer Module, AC Inverter Module
WIPER (REAR) 15A Engine Room Junction Block (Wiper RR Relay), Rear Wiper Motor
HEATED STEERING 15A BCM (Body Control Module)
SUNROOF 20A Sunroof Motor

P/WINDOW RH 25A Power Window (RH) Relay, Passenger Safety Power Window Module
P/WINDOW LH 25A Power Window (LH) Relay, Driver Safety Power Window Module
PDM 2 7.5A [Without Smart Key] Immobilizer Module [With Smart Key] Smart Key Control Module, Start/Stop Button Switch
BRAKE SWITCH 7.5A Stop Lamp Switch, Smart Key Control Module
A/CON 7.5A Air Conditioner Control Module, Electronic Air Conditioner Compressor, Ionizer, Engine Room Junction Block (Blower Relay, PTC Heater1 Relay, PTC Heater2 Relay)
WASHER 15A Multifunction Switch
S/HEATER (FRT) 25A Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
BATTERY MANAGEMENT 10A BMS (Battery Management System) Control Module
P/SEAT (DRV) 30A [Without IMS] Driver Seat Manual Switch [With IMS] Driver Seat Manual Switch, Driver IMS (Integrated memory system) Module
AMP 30A AMP (Amplifier)
AMS 10A Not Used
MODULE 1 10A Data Link Connector, AEB Module, Hazard Switch, Driver/Passenger Door Module, Driver/Passenger Smart Key Outside Handle, Key Interlock, Natural Vacuum Leak Detection

DOOR LOCK 20A Door Lock/Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)
WIPER 2 (FRT) 10A Wiper Motor, Engine Room Junction Block (Front Wiper (Low) Relay), ECM (Engine Control Module), BCM (Body Control Module)
MODULE 6 7.5A BCM (Body Control Module), Smart Key Control Module
S/HEATER (REAR) 25A Rear Seat Warmer Control Module
HEATED MIRROR 10A Driver Power Outside Mirror, Passenger Power Outside Mirror, Air Conditioner Control Module
WIPER1 (FRT) 30A Wiper Motor, Engine Room Junction Block (Front Wiper (Low) Relay)


Instrument panel (Driver’s side fuse panel) (Plug-in Hybrid)


Fuse Name  ... Fuse rating  ... Circuit Protected
MODULE 5 10A Electro Chromic Mirror, Audio/Video & Navigation Head Unit, Audio, Driver IMS (Integrated memory system) Module, VESS (Virtual Engine Sound System) Unit, Air Conditioner Control Module, Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, Head Lamp Leveling Device Actuator LH/RH, Auto Head Lamp Leveling Device Module, Crash Pad Switch
MODULE 4 10A Lane Keeping Assist Control Module, Crash Pad Switch, AEB Module, Blind Spot Detection Radar Left Handle side/Right Handle side
INTERIOR LAMP 10A Front Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Ignition Key ILL. & Door Warning Switch, Luggage Lamp, Wireless Charger
A/BAG 15A SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor
IG 1 25A Engine Room Junction Block (Fuse - DCT4, HPCU2, ACTIVE HYDRAULIC BOOSTER3)
CLUSTER 10A Instrument Cluster
MODULE 3 10A BCM (Body Control Module), DCT (Dual Clutch Transmission) Shift Lever, Stop Lamp Switch, Driver Door Module, Passenger Door Module
IG3 2 10A Fuel Filler Door & Battery Charger Switch, Instument Cluster, Audio, Charger Indicator, Integrated Gateway Power control Module, Audio/Video & Navigation Head Unit
MEMORY 2 7.5A Active Air Flap Unit
MODULE 8 10A Active Air Flap Unit, Electric Water Pump (Engine)
A/BAG IND 7.5A Air Conditioner Control Module, Instrument Cluster

START 7.5A SMK UNIT, IGN SW, INHIBITOR SW
MODULE 2 10A Engine Room Junction Block (Power Outlet Relay), Wireless Charger, BCM (Body Control Module), USB Charger, Smart Key Control Module, Audio, Audio / Video & Navigation Head Unit, Power Outside Mirror Switch, AMP (Amplifier)
PDM3 7.5A Immobilizer Module, Smart Key Control Module
MEMORY 1 10A Instrument Cluster, Driver IMS (Integrated memory system) Module, BCM (Body Control Module), Air Conditioner Control Module, Auto Light & Photo Sensor, Driver Door Module, Passenger Door Module, ICM Relay Box (Outside Mirror Folding/Unfolding Relay)
MULTI MEDIA 15A Audio, Audio / Video & Navigation Head Unit
IG3 4 10A OBC (On-Board Charger) Unit, TCM (Transmission Control Module), ECM (Engine Control Module), HPCU (Hybrid Power Control Unit)
IG3 3 10A Electric Water Pump (PHEV)
IG3 5 15A Transaxle Range Switch, BMS (Battery Management System) Control Module, Engine Room Junction Block (Battery C/Fan Relay)
IG3 1 20A ICM Relay Box (IG3 #1, IG3 #2, IG3 #3 Relay)
MDPS 7.5A MDPS (Motor Driven Power Steering) Unit
TAIL GATE OPEN 10A Tail Gate Relay, ICM Relay Box (Fuel Filler Door Relay, Charger Connector Lock/Unlock Relay), Fuel Filler & Battery Charger Switch, Charge Connector Lamp
PDM 1 15A Smart Key Control Module

MODULE 7 7.5A Front Seat Warmer Control Module, AC Inverter (220V), Front Air Ventilation Seat Control Module, Rear Seat Warmer Module, AC Inverter Module, C_FAN_BLDC
WIPER (REAR) 15A Engine Room Junction Block (Wiper RR Relay), Rear Wiper Motor
HEATED STEERING 15A BCM (Body Control Module)
SUNROOF 20A Sunroof Motor
P/WINDOW RH 25A Power Window (RH) Relay, Power Window Main Switch, Passenger Power Window Switch, Rear Power Window Switch RH, Passenger Safety Power Window Module P/WINDOW LH 25A Power Window (LH) Relay, Power Window Main Switch, Rear Power Window Switch LH,  Driver Safety Power Window Module
PDM 2 7.5A Immobilizer Module, Smart Key Control Module, Start/Stop Button Switch
BRAKE SWITCH 7.5A Stop Lamp Switch, Smart Key Control Module
OBC 10A OBC (On-Board Charger) Unit
A/CON 7.5A Air Conditioner Control Module, Electronic Air Conditioner Compressor, Ionizer, Engine Room Junction Block (Blower Relay, PTC (Positive Temperature Coefficient)  Heater1 Relay, PTC Heater2 Relay)
WASHER 15A Multifunction Switch
S/HEATER (FRT) 25A Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module

BATTERY MANAGEMENT 10A BMS (Battery Management System) Control Module
P/SEAT (DRV) 30A Driver Seat Manual Switch, Driver IMS (Integrated memory system) Module
AMP 30A AMP (Amplifier)
AMS 10A Battery Sensor
MODULE 1 10A Data Link Connector, AEB (Automatic emergency braking) Module, Hazard Switch, Driver/Passenger Door Module, Driver/Passenger Smart Key Outside Handle
DOOR LOCK 20A Door Lock/Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)
WIPER2 (FRT) 10A Wiper Motor, Engine Room Junction Block (Front Wiper (Low) Relay), ECM (Engine Control Module), BCM (Body Control Module)
MODULE 6 7.5A BCM (Body Control Module), Smart Key Control Module
S/HEATER (REAR) 25A Rear Seat Warmer Control Module
HEATED MIRROR 10A Driver Power Outside Mirror, Passenger Power Outside Mirror, Air Conditioner Control Module
WIPER 1 (FRT) 30A Wiper Motor, Engine Room Junction Block (Front Wiper (Low) Relay)

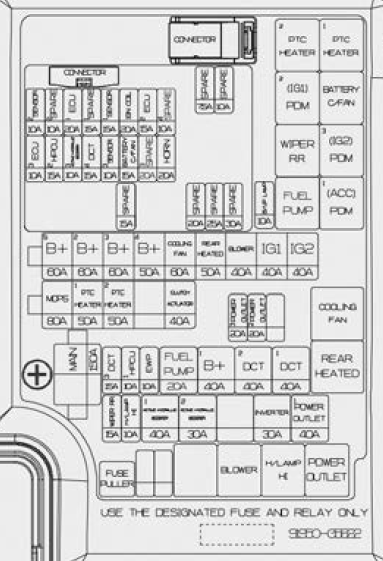

Engine compartment fuse panel


Engine compartment fuse panel
Engine compartment fuse panel

Engine compartment fuse panel Diagram
Engine compartment fuse panel Diagram

Engine room compartment fuse panel (Hybrid)


Fuse Name  .. Fuse rating  .. Circuit Protected

MULTI FUSE
B+ 5 60A Fuse - BATTERY C/FAN, HORN, B/ALARM HORN, ECU2, Engine Control Relay
B+ 2 60A Instrument Panel Junction Block (Fuse - S/HEATER (REAR))
B+ 3 60A Instrument Panel Junction Block
B+ 4 50A Instrument Panel Junction Block (Fuse - BATTERY MANAGEMENT, P/WINDOW (LH), P/WINDOW (RH), TAIL GATE OPEN, SUNROOF, AMP, S/HEATER (FRT), P/SEAT (DRV))
COOLING FAN 60A Cooling Fan Relay REAR HEATED 50A Rear Heated Relay
BLOWER 40A Blower Relay
IG 1 40A [Without Smart Key] Ignition Switch, [With Smart Key] PDM1 (ACC) Relay, PDM2 (IG1) Relay
IG 2 40A [Without Smart Key] Ignition Switch, [With Smart Key] PDM3 (IG2) Relay
MDPS 80A MDPS (Motor Driven Power Steering) Unit
PTC HEATER 1 50A PTC Heater 1 Relay
PTC HEATER 2 50A PTC Heater 2 Relay
CLUTCH ACTUATOR 40A Clutch Actuator (HEV)
MAIN 150A Fuse - POWER OUTLET1, H/LAMP HI, INVERTER, ACTIVE HYDRAULIC BOOSTER1, ACTIVE HYDRAULIC BOOSTER2, WIPER RR, Low Voltage DC-DC Converter

FUSE
POWER OUTLET 3 20A Power Outlet #2
POWER OUTLET 2 20A Power Outlet #1
DCT 3 15A TCM (Transmission Control Module)
HPCU 1 10A HPCU (Hybrid Power Control Unit)
EWP 10A Electric Water Pump (Engine)
FUEL PUMP 20A Fuel Pump Relay
B + 1 40A Instrument Panel Junction Block (Fuse - BRAKE SWITCH, PDM1, PDM2, MODULE1, DOOR LOCK, Leak Current Autocut Device)
DCT 2 40A TCM (Transmission Control Module)
DCT 1 40A TCM (Transmission Control Module)
WIPER RR 15A Wiper RR Relay
H/LAMP HI 10A H/Lamp HI Relay
ACTIVE HYDRAULIC BOOTER 1 40A Integrated Brake Actuation Unit, Multipurpose Check Connector

ACTIVE HYDRAULIC BOOTER 2 30A Integrated Brake Actuation Unit INVERTER 30A AC Inverter Module
POWER OUTLET 1 40A Power Outlet Relay
B/UP LAMP 10A Electro Chromic Mirror, Back-Up Lamp LH/RH
ECU 3 10A ECM (Engine Control Module)
HPCU 2 15A HPCU (Hybrid Power Control Unit), Clutch Actuator (HEV)
ACTIVE HYDRAULIC BOOTER 3 10A Integrated Brake Actuation Unit, Multipurpose Check Connector
DCT 4 15A DCT (Dual clutch transmission) Shift Lever, TCM (Transmission Control Module), Inhibitor Switch
SENSOR 3 10A Fuel Pump Relay, Oil Control Valve #1/#2 (Intake/Exhaust), Camshaft Position Sensor #1/#2 (Intake/Exhaust)
BATTERY C/FAN 15A Battery C/Fan Relay
HORN 20A Horn Relay
SENSOR 2 10A Purge Control Solenoid Valve, Cooling Fan Relay, Canister Close Valve,  Mass Air Flow Sensor
ECU 1 20A ECM (Engine Control Module)

SENSOR 1 15A Oxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL 20A Ignition Coil #1/#2/#3/#4
ECU 2 15A ECM (Engine Control Module)
B/ALARM HORN 10A Burglar Alarm Horn Relay

Engine room compartment fuse panel (Plug-in Hybrid)


Fuse Name  ... Fuse rating  ... Circuit Protected

MULTI FUSE
B+ 5 60A Fuse - BATTERY C/FAN, HORN, B/ALARM HORN, ECU2, Engine Control Relay
B+ 2 60A Instrument Panel Junction Block (Fuse - S/HEATER (REAR))
B+ 3 60A Instrument Panel Junction Block
B+ 4 50A Instrument Panel Junction Block (Fuse - BATTERY MANAGEMENT, P/WINDOW (LH), P/WINDOW (RH), TAIL GATE OPEN, SUNROOF, AMP, S/HEATER (FRT), P/SEAT (DRV), IG3 1, OBC, AMS)
COOLING FAN 60A Cooling Fan Relay
REAR HEATED 50A Rear Heated Relay
BLOWER 40A Blower Relay
IG 1 40A [Without Smart Key] Ignition Switch, [With Smart Key] PDM1 (ACC) Relay, PDM2 (IG1) Relay
IG 2 40A [Without Smart Key] Ignition Switch, [With Smart Key] PDM3 (IG2) Relay
MDPS 80A MDPS (Motor Driven Power Steering) Unit
PTC HEATER 1 50A PTC Heater 1 Relay
PTC HEATER 2 50A PTC Heater 2 Relay
CLUTCH ACTUATOR 40A Clutch Actuator (PHEV)
MAIN 150A Fuse - POWER OUTLET1, H/LAMP HI, INVERTER, ACTIVE HYDRAULIC BOOSTER1, ACTIVE HYDRAULIC BOOSTER2, WIPER RR, Low Voltage DC-DC Converter

FUSE
POWER OUTLET 3 20A Power Outlet #2
POWER OUTLET 2 20A Power Outlet #1
DCT 3 15A TCM (Transmission Control Module)
HPCU 1 10A HPCU (Hybrid Power Control Unit)
EWP 10A Electric Water Pump (Engine)
FUEL PUMP 20A Fuel Pump Relay
B + 1 40A Instrument Panel Junction Block (Fuse - BRAKE SWITCH, PDM1, PDM2, MODULE1, DOOR LOCK, Leak Current Autocut Device)
DCT 2 40A TCM (Transmission Control Module)
DCT 1 40A TCM (Transmission Control Module)
WIPER RR 15A Wiper RR Relay
H/LAMP HI 10A H/Lamp HI Relay
ACTIVE HYDRAULIC BOOTER 1 40A Integrated Brake Actuation Unit, Multipurpose Check Connector

ACTIVE HYDRAULIC BOOTER 2 30A Integrated Brake Actuation Unit INVERTER 30A AC Inverter Module
POWER OUTLET 1 40A Power Outlet Relay
B/UP LAMP 10A Electro Chromic Mirror, Back-Up Lamp LH/RH
ECU 3 10A ECM (Engine Control Module)
HPCU 2 15A HPCU (Hybrid Power Control Unit), Clutch Actuator (PHEV)
ACTIVE HYDRAULIC BOOTER 3 10A Integrated Brake Actuation Unit, Multipurpose Check Connector
DCT 4 15A DCT(Dual clutch transmission) Shift Lever, TCM (Transmission Control Module), Inhibitor Switch
SENSOR 3 10A Fuel Pump Relay, Oil Control Valve #1/#2 (Intake/Exhaust), Camshaft Position Sensor #1/#2 (Intake/Exhaust)
BATTERY C/FAN 15A Battery C/Fan Relay
HORN 20A Horn Relay
SENSOR 2 10A Purge Control Solenoid Valve, Cooling Fan Relay, Canister Close Valve, Mass Air Flow Sensor
ECU 1 20A ECM (Engine Control Module)

SENSOR 1 15A Oxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL 20A Ignition Coil #1/#2/#3/#4
ECU 2 15A ECM (Engine Control Module)
B/ALARM HORN 10A Burglar Alarm Horn Relay

Relay (Hybrid)


Relay Name Type
PTC Heater #2 Relay MICRO
PTC Heater #1 Relay MICRO
PDM2 (IG1) Relay MICRO
Battery C/FAN Relay MICRO
Rear Wiper Relay MICRO
PDM3 (IG2) Relay MICRO
Fuel Pump Relay MICRO
PDM1 (ACC) Relay MICRO
Cooling Fan Relay MINI
Rear Heated Relay MINI
Blower Relay MICRO
H/LAMP HI RELAY MICRO
Power Outlet Relay MICRO

Relay (Plug-in Hybrid)


Relay Name  .. Type
PTC Heater #2 Relay MICRO
PTC Heater #1 Relay MICRO
PDM2 (IG1) Relay MICRO
Battery C/FAN Relay MICRO
Rear Wiper Relay MICRO
PDM3 (IG2) Relay MICRO
Fuel Pump Relay MICRO
PDM1 (ACC) Relay MICRO
Cooling Fan Relay MINI
Rear Heated Relay MINI
Blower Relay MICRO
H/LAMP HI RELAY MICRO
Power Outlet Relay MICRO

Battery terminal cover


Battery terminal cover
Battery terminal cover

✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

Battery terminal cover Diagram
Battery terminal cover Diagram

No comments:

Post a Comment
