Fuses and Circuit Breakers
The wiring circuits in the vehicle are protected from short circuits by a combination of fuses and circuit breakers.
This greatly reduces the chance of damage caused by electrical problems.
Danger
Fuses and circuit breakers are marked with their ampere rating. Do not exceed the specified amperage rating when replacing fuses and circuit breakers. Use of an oversized fuse or circuit breaker can result in a vehicle fire. You and others could be seriously injured or killed.
Warning
Installation or use of fuses that do not meet GM’s original fuse specifications is dangerous. The fuses could fail, and result in a fire. You or others could be injured or killed, and the vehicle could be damaged.
Installation or use of fuses that do not meet GM’s original fuse specifications is dangerous. The fuses could fail, and result in a fire. You or others could be injured or killed, and the vehicle could be damaged.
To check a fuse, look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse. Be sure to replace a bad fuse with a new one of the identical size and rating.
Fuses of the same amperage can be temporarily borrowed from another fuse location, if a fuse goes out. Replace the fuse as soon as possible.
Engine Compartment Fuse Block
The underhood fuse block is in the engine compartment, on the driver side of the vehicle.
 |

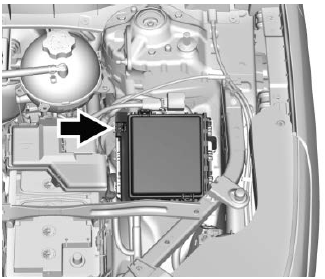

| Engine Compartment Fuse Block |
Caution
Do not pull the engine compartment fuse block lever, since it is intended only for service purposes. If pulled, vehicle malfunction may occur.
Caution
Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component.
To remove the fuse block cover, press the clips on the cover and lift it straight up. The vehicle may not be equipped with all of the fuses, relays, and features shown.
 |

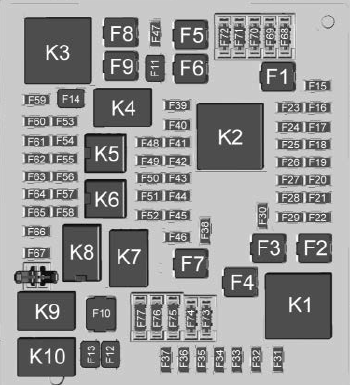

| Engine Compartment Fuse Panel Diagram |
Fuses .. Usage
F1 Antilock brake system (ABS)
F2 Starter 1
F3 DC DC transformer 1
F4 –
F5 --- (2020 - 2022 Models - DC DC transformer 2)
F6 --- (2020 - 2022 Models -Amplifier 1)
F7 Front blower
F8 Starter 3
F9 –
F10 –
F11 –
F12 Front wiper
F13 Starter 2
F14 LED/Automatic headlamp leveling
F15 Rear wiper 1
F16 –
F17 –
F18 Automatic headlamp leveling module
F19 –
F20 –
F21 –
F22 Electronic brake control module
F23 Parking/Trailer lamps
F24 Right trailer stoplamp/ Turn lamp
F25 Steering column lock
F26 –
F27 Left trailer stoplamp/ Turn lamp
F28 –
F29 –
F30 Washer pump
F31 –
F32 –
F33 Fog lamps
F34 Horn
F35 –
F36 Headlamp high-beam left
F37 Headlamp high-beam right
F38 Automatic headlamp leveling motor
F39 Transmission control module 1/Battery 1
F40 Left rear bus electrical center/Ignition
F41 Instrument cluster
F42 Heating, ventilation, and air conditioning
F43 Head-up display/ Reflective light alert display
F44 Electronic brake control module electric brake booster/Run/Crank
F45 –
F46 –
F47 –
F48 Rear wiper 2
F49 Interior rearview mirror/ Trailer
F50 Fuel system control module
F51 Heated steering wheel
F52 Air conditioning clutch
F53 Coolant pump
F54 –
F55 –
F56 –
F57 Engine control module/ Ignition
F58 Transmission control module/Ignition
F59 Engine control module battery
F60 – (2018 -2019 Models - Transmission control module 2)
F61 O2 sensor 1/Aeroshutter
F62 Engine control module – odd
F63 O2 sensor 2
F64 Engine control module – even
F65 Engine control module powertrain 1
F66 Engine control module powertrain 2
F67 Engine control module powertrain 3
F68 –
F69 –
F70 –
F71 –
F72 –
F73 –
F74 –
F75 –
F76 –
F77 –
Relays .. Usage
K1 Starter 1
K2 Run/Crank
K3 Starter 3
K4 LED/Automatic headlamps
K5 –
K6 – (2018 - 2020 Models - Coolant pump)
K7 Engine control module
K8 Air conditioning (A/C)
K9 –
K10 Starter 2
Instrument Panel Fuse Block
 |
| Instrument panel fuse block Location |
The instrument panel fuse block is inside the center console on the passenger side of the
vehicle. See the fuse block cover for specific fuse information.
Open the fuse panel door, or remove the panel from the passenger side by pulling it out.
See your dealer for additional assistance.
vehicle. See the fuse block cover for specific fuse information.
Open the fuse panel door, or remove the panel from the passenger side by pulling it out.
See your dealer for additional assistance.
 |
| Instrument panel fuse block |
To reinstall the door, push the door back into its original location.
 |
| Instrument Fuse Panel Diagram |
The vehicle may not be equipped with all of the fuses, relays, and features shown.
Fuses .... Usage
F1 Body control module 6
F2 Diagnostic link/Central gateway module
F3 Electric steering column lock
F4 –
F5 Logistics
F6 Heating, ventilation, and air conditioning (HVAC)
F7 Body control module 3
F8 Park aid/Electronic range select hybrid
F9 Front passenger heated seat
F10 Airbag/Seat belt
F11 –
F12 Amplifier
F13 Body control module 7
F14 Driver heated seat
F15 Instrument panel switch bank
F16 Sunroof
F17 Body control module 1
F18 Instrument cluster/Head up display
F19 –
F20 Rear seat entertainment
F21 Body control module 4
F22 Infotainment USB data/ Aux jack
F23 Body control module 2
F24 USB charger/Wireless charging
F25 Park aid/Electronic transmission range system
F26 CIM
F27 Video/Night vision module
F28 Heating, ventilation, and air conditioning display
F29 Radio
F30 Steering wheel adjustment controls
F31 Electronic brake control module electric brake booster
F32 DC AC inverter
F33 Driver power seat
F34 Passenger power seat
F35 Battery IEC 1 feed
F36 Electric power steering
F37 Rear seat entertainment/USB charge/Wireless charging module
F38 Body control module 8
F39 –
Circuit Breakers/ Minifuse ... Usage
F40 –
F41 –
F42 Auxiliary power outlet (CB)/Lighter (minifuse) (Cigerette Ligher)
Rear Compartment Fuse Block
 |
| Rear Compartment Fuse Block Location |
The rear compartment fuse block is behind a trim panel on the driver side of the rear storage compartment.
 |
| Rear Compartment Fuse Block |
Remove the side bin, load floor, and foam.
Remove the trim plate to access the fuse block.
The label for this fuse block is in the spare tire area, on the foam under the cargo floor. See your dealer for additional assistance.
Remove the trim plate to access the fuse block.
The label for this fuse block is in the spare tire area, on the foam under the cargo floor. See your dealer for additional assistance.
 |

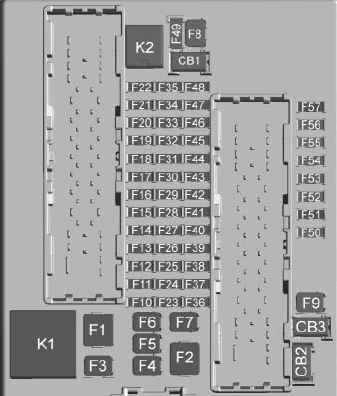

| Rear Compartment Fuse Panel Diagram |
Fuses ... Usage
F1 –
F2 Trailer battery 1
F3 Driver seat belt motor
F4 Rear blower
F5 Rear drive control
F6 Passenger seat belt motor
F7 Right window
F8 Rear defogger
F9 Left window
F10 –
F11 Trailer reverse
F12 –
F13 –
F14 –
F15 –
F16 –
F17 – (2018 - 2020 Models - Camera/Spare)
F18 Trailer module/ Accessory power module rechargeable energy storage system ignition
F19 Ventilated seats
F20 –
F21 Trailer connector
F22 –
F23 –
F24 Passenger window switch
F25 –
F26 Trailer brake
F27 Driver ventilated seat/ Lumbar
F28 Passive entry/Passive start
F29 –
F30 Canister vent
F31 -- (2021 Model - Rechargeable energy storage system)
F32 Heated mirror
F33 –
F34 Liftgate module
F35 Fuel system control module
F36 Passenger ventilated seat/Lumbar
F37 External amplifier hybrid
F38 Window module
F39 Rear closure
F40 Memory seat module
F41 Automatic occupancy sensor
F42 Trailer battery 2
F43 Blower console
F44 –
F45 Liftgate motor
F46 Rear heated seats
F47 –
F48 Glass break sensor
F49 –
F50 –
F51 –
F52 Active dampening system module
F53 –
F54 External object calculating/Side blind zone alert
F55 –
F56 Universal remote system/Rain sensor
F57 Theft deterrent
Circuit Breakers .. Usage
CB1 –
CB2 –
CB3 Rear auxiliary power outlet
Relays .. Usage
K1 –
K2 –
