2020 - 2021 Honda CR-V Fuse Box

2020 Honda CR-V

Fuse Locations


If any electrical devices are not working, turn the ignition switch to LOCK (0*1 and check to see if any applicable fuse is blown.
Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.

Engine Compartment Fuse Box

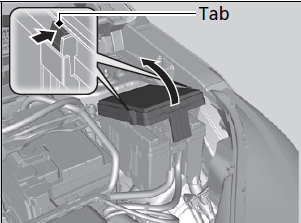

Located near the brake fluid reservoir. Push the tabs to open the box.

Circuit protected and fuse rating

Engine Compartment Fuse Box Location



Circuit Protected  .... Amps

1
VST 1 (30 A)
Electric Brake Booster 40 A
Main Fan Motor 30 A
Relay Module 1 30 A
IG Main 2*2 30 A
−*3 −
Relay Module 2 30 A
Battery 125 A
2
EPS 70 A
IG Main 1 30 A*2 , 50 A*3
Fuse Box Option 40 A
Fuse Box 1 60 A
Front Wiper Motor 30 A
Sub Fan Motor 30 A
3
Rear Defroster 40 A
Starter Motor 30 A
Fuse Box 2 40 A
ABS (Anti-lock brake system) / VSA (Vehicle Stability Assist) Motor 40 A
ABS/ VSA FSR 40 A
Blower Motor 40 A

4
Option Block 1*2 (40 A)
−*3 −
Option Block 2*2 (40 A)
−*3 −
VST 2 (30 A)
Power Tail Gate*2 (40 A)
−*3 −
5 VB ACT 7.5 A
6 Washer 15 A
7 FI Main 15 A
8 FI Sub 15 A
9 Stop Lights 10 A
10 Injector 20 A
11 LAF 7.5 A

*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
*2:Models with smart entry system
*3:Models without smart entry system

 * Not available on all models

Circuit Protected ....  Amps

12 FI ECU 10 A
13 Front Wiper Deicer*1 (15 A)
−*2 −
14 Hazard 10 A
15 IG Coil 15 A
16 Transmission 15 A
17 − −
18 Back Up 10 A
19 − −
20 E-DPS* (20 A)
21 Rear Seat Heater*1 (20 A)
−*2 −
22 Front Fog Lights*/Lower Shutter Grille (10 A)
23

Magnetic Clutch/Upper , Shutter Grille*3   10 A
VMP MAIN*4 (20 A)
24 Horn 10 A
25 Cooling Fan 7.5 A
26 − −
27 Back Up 2 (30 A)
28 ST Magnetic Switch (7.5 A)
29 − −
30 − −
31 VMP*4 (10 A)
32 −*4 −
33 −*4 −

34 USB Charger*4 (7.5 A)
35 −*4 −
36 −*4 −
*1:Models with smart entry system
*2:Models without smart entry system
*3:Models without navigation system

*4:Models with navigation system

* Not available on all models

Interior Fuse Box

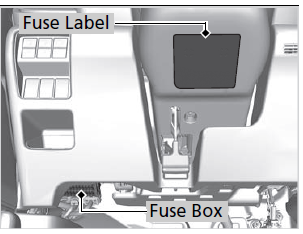

Located under the dashboard.

Interior Fuse Box Location

Fuse locations are shown on the label on the steering column lower cover.
Locate the fuse in question by the fuse number and label number.

Circuit protected and fuse rating

Circuit Protected ... Amps
1 Accessory 10 A
2 Key Lock 5 A
3 Option 3 10 A
4 Option 2*1 5 A , Transmission*2 (10 A)
5 Option 10 A
6 SRS Indicator 10 A
7 Meter 10 A
8 Fuel Pump 15 A
9 A/C 10 A
10 Accessory Power Socket, (Center Console) .... (20 A)
11 Engine Control 5 A
12 Passenger's Side Door Lock 10 A
13 Driver's Side Door Unlock 10 A
14 Rear Driver's Side Power Window .... 20 A
15 Front Passenger's Side, Power Window .... 20 A
16 Door Lock 20 A
17 Transmission*1 - (10 A) , Option 2*2  5A

18 Front Driver's Lumber support* (10 A)
19 Moonroof* (20A)  (Sunroof)
20 Starter 10 A
21 ACG 10 A
22 Daytime Running Light 10 A
23 Steering Wheel Heater* (10 A)
24 Option 5 A
25 Driver's Door Lock (10 A)
26 Passenger's Side Door Unlock 10 A
27 Rear Passenger's Side Power Window 20 A
28 Driver's Power Window 20 A
29 Front Accessory Power Socket 20A (cigarette Lighter)
30 Smart Entry*1 - 10A , STS*2 5A
31 Driver's Power Seat Reclining* (20 A)
32 Front Seat Heater* (20 A)
33 Driver's Power Seat Sliding* (20 A)
34 ABS/VSA 10 A
35 SRS (Supplemental restraint system)  10 A
36 HAC Option* 20 A
37 Trailer* 15 A
38 Driver's Side Door Lock 10 A

Circuit Protected ... Amps
39 Driver's Door Unlock (10 A)
a Power Tailgate Closer* (20 A)
b Passenger's Power Seat Sliding* (20 A)
c Passenger's Power Seat Reclining* (20 A)
d Panorama Shade Motor (20 A)
e Rear Blower (20 A)
f EPT L (20 A)
g EPT R (20 A)
h Accessory Power Socket (Cargo Area) (20 A)

Comments
*1:Models with smart entry system
*2:Models without smart entry system
* Not available on all models

Inspecting and Changing Fuses


1. Turn the ignition switch to LOCK (0*1. Turn headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine compartment.
- If the fuse is blown, use a Phillips-head screwdriver to remove the screw and replace it with a new one.
4. Inspect the small fuses in the engine compartment and the vehicle interior.
- If there is a blown fuse, remove it with  the fuse puller, and replace it with a new one.

Blown Fuse , Combined Fuse , Fuse Puller

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an  ignition switch.
