Fuses
What you should be mindful of:
NOTICE
Fire hazard and risk of damage to the electrical system.
▶ Do not repair fuses or replace them with stronger fuses.
▶ Replace the defective fuse with a new fuse with the same amperage.
▶ We recommend using replacement fuses from the ŠKODA Genuine Accessories range. These guarantee reliable and safe consumer protection.
▶ If a newly inserted fuse blows again, seek the help of a specialist garage.
One fuse may belong to several consumers. One consumer may have several fuses.
 |
| Blown Fuse |
Conditions for the replacing a fuse:
✓ Ignition switched off.
✓ Driver door opened.
✓ All consumers switched off.
Replacing a fuse
 |
| Fuse Puller |
› Replace the fuse with the clip (Fuse Puller) located under the cover of the fuse box in the engine compartment.
› Use the appropriate end of the clamp according to the fuse dimensions.
› Use the appropriate end of the clamp according to the fuse dimensions.
Fuses in the dash panel
Access to fuses – left-hand drive
› Open the storage compartment on the driver's side.
› Press the button and open the tray.
› Change the fuse.
› Close the storage compartment.
 |
| Access to fuses – left-hand drive |
Access to fuses – right-hand drive
 |
| Loosen the brake rod of the storage compartment. |
 |
| Press the locking lugs, the storage compartment folds down |
› Open the storage compartment on the passenger's side.
› Loosen the brake rod of the storage compartment.
› Press the locking lugs, the storage compartment folds down.
› Change the fuse.
› Insert and lock the brake rod.
› Close the storage compartment.
› Loosen the brake rod of the storage compartment.
› Press the locking lugs, the storage compartment folds down.
› Change the fuse.
› Insert and lock the brake rod.
› Close the storage compartment.
 |

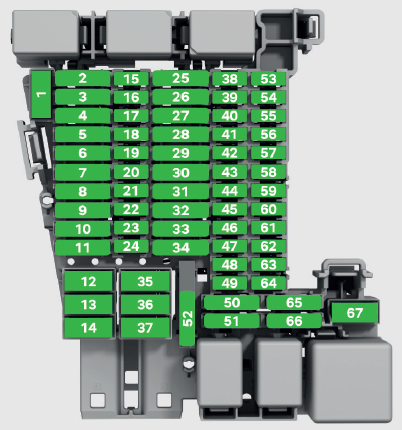

| Dashboard Fuse Panel Diagram |
Fuse number ... Consumer
1 Not used
2 Not used
3 Tow hitch
4 SCR (AdBlue®)
5 Selector lever (automatic transmission)
6 Interior lighting
7 Heating of the front seats
8 Tilting/sliding sunroof
9 Window operation - left vehicle side
10 Not used
11 Tow hitch
12 Light - right side
13 Central locking (doors and boot lid, fuel filler flap), windscreen washer system, headlight cleaning system
14 Music amplifier
15 Not used
16 Airbags
17 SCR - Selective Catalytic Reduction (AdBlue®)
18 Steering column lock, KESSY (keyless start system)
19 Instrument cluster, emergency call, online services
20 Phonebox, USB connections
21 Rear view camera, Top View
22 Seat ventilation at the front
23 Interior lighting in front, microphone, operation of the sliding/tilting sunroof
24 All-wheel drive
25 Belt tensioner - front left
26 Window operation - right vehicle side
27 Belt tensioner - front right
28 Not used
29 Tow hitch
30 Infotainment
31 Tow hitch
32 Seat heating - rear
33 Not used
34 230 volt socket
35 Light - left side
36 Air Conditioning
37 Electric boot lid
38 Not used
39 Heated steering wheel
40 Not used
41 Databus
42 Automatic transmission, gear display
43 Front air conditioning, rear air conditioning, auxiliary heater (auxiliary heating), rear window heating
44 Lane change assist system (Side Assist), diagnostic connection, rain and light sensor, automatic headlamp levelling, parking brake, alarm system, light switch, buttons in the centre console
45 Steering column electronics
46 Infotainment screen, Head-up display
47 Adaptive Chassis Control (DCC)
48 Not used
49 Not used
50 Not used
51 Not used
52 12 volt socket in the luggage compartment
53 Non-contact operation of boot lid
54 Not used
55 Not used
56 Not used
57 Not used
58 Parking assistance, Park Assist, front radar sensor, front camera for assistance systems
59 Parking brake, air conditioning, reverse gear sensor, interior rearview mirror
60 Diagnostic connection
61 Clutch pedal switch, engine start
62 USB rear, USB on interior rearview mirror
63 Not used
64 Not used
65 Not used
66 Rear window wiper
67 Heated rear window
Engine compartment Fuse Box
1 Not used
2 Not used
3 Tow hitch
4 SCR (AdBlue®)
5 Selector lever (automatic transmission)
6 Interior lighting
7 Heating of the front seats
8 Tilting/sliding sunroof
9 Window operation - left vehicle side
10 Not used
11 Tow hitch
12 Light - right side
13 Central locking (doors and boot lid, fuel filler flap), windscreen washer system, headlight cleaning system
14 Music amplifier
15 Not used
16 Airbags
17 SCR - Selective Catalytic Reduction (AdBlue®)
18 Steering column lock, KESSY (keyless start system)
19 Instrument cluster, emergency call, online services
20 Phonebox, USB connections
21 Rear view camera, Top View
22 Seat ventilation at the front
23 Interior lighting in front, microphone, operation of the sliding/tilting sunroof
24 All-wheel drive
25 Belt tensioner - front left
26 Window operation - right vehicle side
27 Belt tensioner - front right
28 Not used
29 Tow hitch
30 Infotainment
31 Tow hitch
32 Seat heating - rear
33 Not used
34 230 volt socket
35 Light - left side
36 Air Conditioning
37 Electric boot lid
38 Not used
39 Heated steering wheel
40 Not used
41 Databus
42 Automatic transmission, gear display
43 Front air conditioning, rear air conditioning, auxiliary heater (auxiliary heating), rear window heating
44 Lane change assist system (Side Assist), diagnostic connection, rain and light sensor, automatic headlamp levelling, parking brake, alarm system, light switch, buttons in the centre console
45 Steering column electronics
46 Infotainment screen, Head-up display
47 Adaptive Chassis Control (DCC)
48 Not used
49 Not used
50 Not used
51 Not used
52 12 volt socket in the luggage compartment
53 Non-contact operation of boot lid
54 Not used
55 Not used
56 Not used
57 Not used
58 Parking assistance, Park Assist, front radar sensor, front camera for assistance systems
59 Parking brake, air conditioning, reverse gear sensor, interior rearview mirror
60 Diagnostic connection
61 Clutch pedal switch, engine start
62 USB rear, USB on interior rearview mirror
63 Not used
64 Not used
65 Not used
66 Rear window wiper
67 Heated rear window
Engine compartment Fuse Box
Access to the fuses
› Simultaneously press the locking buttons on the fuse box cover and remove the cover.
› Change the fuse.
› Fit the cover and click into place.
NOTICE
Danger of water entering the fuse box.
▶ Fit the cover correctly and click into place securely.
 |
| Engine Compartment Fuse Box Location |
 |
| Engine compartment Fuse Panel Diagram |
Fuse number .. Consumer
1 Power steering The fuse can only be changed by a specialist company!
2 Assistance system ESC,, engine control system, engine components
3 Ignition , natural gas drive (applies to G-TEC-vehicles)
4 Left headlight
5 Right headlight
6 Alarm system
7 Automatic gearbox
8 Brake servo
9 Horn
10 Windscreen wiper
11 Databus
12 Automatic gearbox
13 ESC (Electronic Stability Control)
14 Auxiliary heating
15 ESC (Electronic Stability Control)
16 Not used
17 Heating
18 Heating
19 Not used
20 Front differential lock (VAQ)
21 Engine control system
22 Starter
23 Engine control system
24 Engine components
25 Engine components
26 Engine components
27 Lambda sensors, particle filter, NOx sensor
28 Engine components
29 Fuel pump
30 Engine components (2022 Model - Not Used)
31 Not used
32 Heated windscreen
33 Heating
1 Power steering The fuse can only be changed by a specialist company!
2 Assistance system ESC,, engine control system, engine components
3 Ignition , natural gas drive (applies to G-TEC-vehicles)
4 Left headlight
5 Right headlight
6 Alarm system
7 Automatic gearbox
8 Brake servo
9 Horn
10 Windscreen wiper
11 Databus
12 Automatic gearbox
13 ESC (Electronic Stability Control)
14 Auxiliary heating
15 ESC (Electronic Stability Control)
16 Not used
17 Heating
18 Heating
19 Not used
20 Front differential lock (VAQ)
21 Engine control system
22 Starter
23 Engine control system
24 Engine components
25 Engine components
26 Engine components
27 Lambda sensors, particle filter, NOx sensor
28 Engine components
29 Fuel pump
30 Engine components (2022 Model - Not Used)
31 Not used
32 Heated windscreen
33 Heating
