2016 - 2020 Acura MDX Fuse Table

2017 Acura MDX

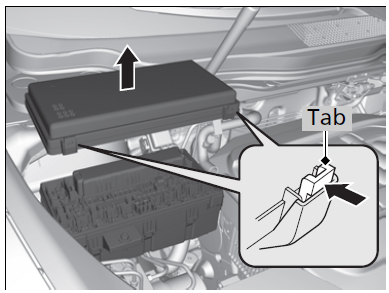

Engine Compartment Fuse Box Type A



Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.
Located near the brake fluid reservoir. Push the tabs to open the box.

 Engine Compartment Fuse Box Type A

Circuit protected and fuse rating



Circuit Protected  ... Amps
1 STRLD*2 7.5 A
2 − −
3 ACG FR 15 A
4 Washer 15 A
5 IG1 OP*1 (7.5 A)
6 ECU FR 7.5 A
7 VBSOL*1 (10 A) , Starter*2 7.5 A
8 FI Sub 15 A
9 DBW 15 A
10 FI Main 15 A
11 IG Coil 15 A
12 DRL (Daytime running light) R 10 A
13 DRL L 10 A
14 Injector 20 A
15 Radio*1 20 A (2020 Model - --)

16 Back Up 10 A
17 MG Clutch (7.5 A)
18 FR Fog* 7.5 A
19 − −
20 H/L HI R 7.5 A
21 − −
22 Small*1 10 A
23 − −
24 H/L HI L 7.5 A
25 SBW (Shift By Wire) 15 A
26 H/L LO R 10 A
27 H/L LO L 10 A
28 Oil LVL 7.5 A
29 Main Fan 30 A
30 Sub Fan 30 A
31 Wiper Main 30 A

*1:Models without Auto Idle Stop
*2:Models with Auto Idle Stop

* Not available on all models


Engine Compartment Fuse Box Type B

Fuse locations are shown on the fuse box cover. Locate the fuse in question by the fuse number and box cover number.
Located near the battery. Push the tabs to open the box.



Engine Compartment Fuse Box Type B

Circuit protected and fuse rating

Circuit Protected ... Amps
1 Main Fuse 150 A
2
VSA MTR 40 A
VSA FSR 20 A
Stop&Horn Hazard*  ,   Hazard*  30 A
RR BLOWER&BMS 30 A
DC/DC 3* 60 A
RR F/B-2 60 A
AS F/B-2 60 A
EPS 60 A
3
H/L Washer* (30 A)
IG1B Main 30 A
R/B Main 60 A
DR F/B-1 50 A
AS F/B-1 50 A
RR F/B-1 60 A
IG1A Main 30 A
DR F/B-2 50 A

4 FI Main 40 A
5 FR Blower 40 A
6 RR DEF 40 A
7 IG1 Main ST 30 A
8 Stop & Horn* 20 A  ,  Stop* 10 A (2020 Model - -- )
9 Hazard 10 A
10 BMS 7.5 A
11 Small LT* 7.5 A (2020 Model - -- )

* Not available on all models

Engine Compartment Fuse Box Type C

Located near the + terminal on the battery.

Engine Compartment Fuse Box Type C

Pull up the cover.
Replacement of this fuse should be done by a dealer.
Fuse location is shown on the back of the positive battery terminal cover.

Circuit protected and fuse rating

Circuit Protected .. Amps
Fan Main ...  60 A

Driver’s Side Interior Fuse Box Type A

Located under the dashboard.

 Driver’s Side Interior Fuse Box Type A



Fuse locations are shown on the label on the outer side of the side panel cover.
Locate the fuse in question by the fuse number and label number.

Circuit protected and fuse rating

Circuit Protected  ... Amps
1 AS Door Lock 10 A
2 RR DR Door Lock 7.5 A
3 DR Door Lock 7.5 A
4 FR AS Door Unlock 10 A
5 RR DR Door Unlock 7.5 A
6 DR Door Unlock (7.5 A)
7 D/L Main 20 A
8 − −
9 ETS TELE 20 A
10 IG1 RR 15 A
11 Meter*  ,  Shifter*  ..  7.5 A
12 IG1 FR 20 A
13 ACC 7.5 A
14 − −
15 DR P/Seat (SLI) 20 A
16 S/R 20 A

17 RR DR P/W 20 A
18 Smart 10 A
19 FR DR P/W 20 A
20 − −
21 Fuel Pump 20 A
22 IG1 AS 15 A
23 ABS/VSA*  ,  Smart* 7.5 A
24 ACG AS 7.5 A
25 STRLD* 7.5 A (2020 Model - -- )
26 IG2 HAC 7.5 A
27 DRL (Daytime running light) 7.5 A
28 ACC Key Lock 7.5 A
29 DR P/Seat (LUM) 7.5 A
30 INT Lights 7.5 A
31 ETS TILT 20 A
32 DR P/Seat (REC) 20 A
33 − −
34 − −

* Not available on all models

Driver’s Side Interior Fuse Box Type B*



Located under the type A driver’s side interior fuse box. Take off the cover to open.


Driver’s Side Interior Fuse Box Type B*

Fuse locations are shown on the label on the back side of the side panel cover.
Locate the fuse in question by the fuse number and label number.

Circuit protected and fuse rating

Circuit Protected .. Amps
1 VST 1 30 A
2 Horn 10 A
3 VST 2 30 A
4 − −
5 − −
6 − −
7 − −
8 − −
9 Meter 10 A
10 RES* (7.5 A)
11 MICU 7.5 A
12 EPS/VSA 7.5 A
13 Audio/TCU 7.5 A
14 Back Up 10 A
15 Audio/ANC 20 A

* Not available on all models

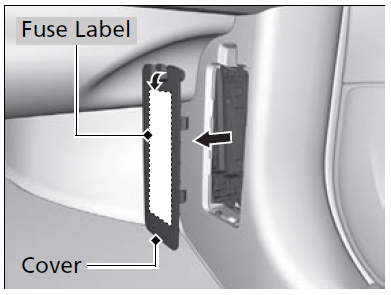

Passenger’s Side Interior Fuse Box

Located on the lower side panel. Take off the cover to open.


Passenger’s Side Interior Fuse Box



Fuse locations are shown on the cover.

Circuit protected and fuse rating

Circuit Protected ..  Amps
1 EPTR* (30 A)
2 RR AS P/W 20 A
3 ACM 20 A
4 FR DEF* (15 A)
5 AVS Heated Seat 20 A
6 FR AS P/W 20 A
7 AS P/Seat (SLI) 20 A
8 AS P/Seat (REC) 20 A
9 AS P/Seat (LUM) (7.5 A)
10 Spare 5 A
11 Heated Steering* (10 A)
12 − −
13 − −

14 RR ACC Socket 20 A
15 FR ACC Socket 20 A
16 − −
17 − −
18 AMP 30 A
19 SRS 10 A
20 AS ECU 7.5 A
21 Option 7.5 A
22 − −
23 − −
24 OPDS 7.5 A
25 ILLUMI (INT) 5 A
26 EPTL* (30 A)
27 CTR ACC Socket 20 A (Cigarette Lighter)
28 AC INVTR (30 A)

* Not available on all models

Rear Fuse Box

Located on the left side of cargo area.
Remove the cover by prying on the edge of the cover using a flat-tip screwdriver.

Wrap the flat-tip screwdriver with a cloth to prevent scratches.



Rear Fuse Box



Fuse locations are shown on the cover.
Locate the fuse in question by the fuse number and box cover number.

Circuit protected and fuse rating

Circuit Protected .. Amps
1 PTG Closer 20 A
2 − − (2016 Model - Trailer Small LT* (20 A) )
3 USB CHARGE 15 A
4 Fuel Lid 7.5 A
5 Seat Slide 20 A
6 − −
7 RR Heat Seat* (20 A)
8 − −
9 − − (2016 Model - Trailer Charge* (20 A) )
10 − − (2016 Model - Trailer Back LT* (7.5 A) )
11 − − (2016 Model - Trailer Hazard* (7.5 A) )
12 Rear Wiper 10 A
13 Rear ECU 7.5 A
14 SH-AWD* (20 A)
15 EPB-R 30 A
16 EPB-L 30 A
17 − − (2016 Model - Trailer E-Brake* (20 A) )
18 PTG MTR 40 A

* Not available on all models

Inspecting and Changing Fuses

1. Set the power mode to VEHICLE OFF (LOCK). Turn headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine compartment.
If the fuse is blown, use a Phillips-head screwdriver to remove the screw and replace it with a new one.
4. Inspect the small fuses in the engine compartment and the vehicle interior.
If there is a burned out fuse, remove it with the fuse puller and replace it with a new one.

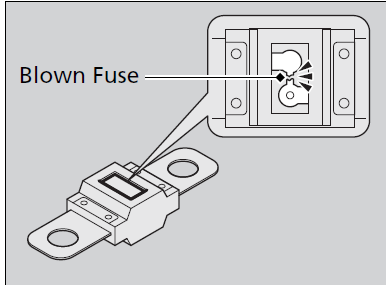

Blown Fuse

NOTICE
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system.
Replace fuse with a spare fuse of the same specified amperage.

There is a fuse puller in the engine compartment fuse box.
If the radio fuse is removed, the audio system will disable itself.
