Fuses
Individual electrical circuits are protected by fuses.
Switch off the ignition and the corresponding power consuming device before replacing a fuse.
Find out which fuse belongs to the component that is not operating.
Electrically adjustable seats are protected by automatic circuit breakers, which switch on again automatically after a few seconds after the overload has been eliminated.
Switch off the ignition and the corresponding power consuming device before replacing a fuse.
Find out which fuse belongs to the component that is not operating.
Electrically adjustable seats are protected by automatic circuit breakers, which switch on again automatically after a few seconds after the overload has been eliminated.
Fuse colour ... Maximum amperage
light brown 5
dark brown 7.5
red 10
blue 15
yellow/blue 20
white 25
green/pink 30
orange/green 40
red 50
WARNING
Always read and observe the warnings before completing any work in the engine compartment
CAUTION
■ “Never repair” fuses, and do not replace them with fuses of a higher amperage – risk of fire! This may also cause damage at other points in the electrical system.
■ If a newly inserted fuse blows again after a short time, have the electrical system checked as quickly as possible by a specialist garage.
■ A blown fuses is recognisable by the molten metal strip. Replace the faulty fuse with a new one of the same amperage.
Always read and observe the warnings before completing any work in the engine compartment
CAUTION
■ “Never repair” fuses, and do not replace them with fuses of a higher amperage – risk of fire! This may also cause damage at other points in the electrical system.
■ If a newly inserted fuse blows again after a short time, have the electrical system checked as quickly as possible by a specialist garage.
■ A blown fuses is recognisable by the molten metal strip. Replace the faulty fuse with a new one of the same amperage.
Note
■ We recommend always carrying replacement fuses in the vehicle. A box of replacement fuses can be purchased from ŠKODA Original Accessories.
■ There can be several power consuming devices for one fuse.
■ Multiple fuses may exist for a single power consuming device.
Fuses in the dash panel – Left Hand Drive (LHD)
 |
| Storage compartment on the driver's side: LHD |
On left-hand drive vehicles, the fuse box is located behind the storage compartment in the left-hand section of the dash panel.
Replacing fuses
› Open the storage compartment.› Grab hold of the storage compartment in the area of the arrows .
› Fold out the storage compartment by pulling in the direction of arrow 1 .
› Remove the plastic clip under the cover of the fuse box in the engine room .
› Place the clip onto the respective fuse and pull the fuse out.
› Insert a new fuse.
› Replace the bracket at the original position.
› Fold back the storage compartment by pressing into the secured position in the dash panel in the direction of the arrow 2 .
› Close the storage compartment.
› Close the storage compartment.
Fuses in the dash panel – Right Hand Drive (RHD)
 |
| Storage compartment on the front passenger's side: RHD |
On right-hand drive vehicles, the fuse box is located on the front passenger's side behind the storage compartment in the left-hand section of the dash panel.
Removing the storage compartment and replacing the fuse
› Insert a screwdriver under the side cover .› Unlock the cover in the direction of the arrow 1 .
› Push the cover out in the direction of the arrow 2 .
› Open the storage compartment.
› Insert a screwdriver from the side into the dash panel in the direction of arrow 3 .
› Use the screwdriver to unlock the brake rod A of the storage compartment in the direction of arrow 4 .
› Remove the storage compartment in the direction of the arrow 5 .
› Remove the plastic clip under the cover of the fuse box in the engine room .
› Place the clip onto the respective fuse and pull the fuse out.
› Insert a new fuse.
› Replace the bracket at the original position.
Installing the storage compartment
› Move the stop buffer B of the storage compartment behind the brackets C .› Push in the storage compartment in the opposite direction of the arrow 5 .
› Insert the brake rod and lock it against the arrow 4 with a screwdriver.
› Push in the side cover against the direction of the arrow 2 .
› Press the side cover fully against the direction of the arrow 1 .
› Close the storage compartment.
Assignment of the fuses in the dash panel
 |
| Dashboard Fuse Panel Diagram |
No. ... Consumer
1 Not assigned
2 Not assigned
3 Not assigned
4 Not assigned
5 Databus
6 Alarm sensor
7 Air conditioning, heating, recipient of the wireless remote control for auxiliary heating, selector lever of the automatic transmission
2 Not assigned
3 Not assigned
4 Not assigned
5 Databus
6 Alarm sensor
7 Air conditioning, heating, recipient of the wireless remote control for auxiliary heating, selector lever of the automatic transmission
8 Light switch, rain sensor, diagnostic socket
9 Haldex clutch
10 Touchscreen
11 Heated rear seats
12 Radio
13 Belt tensioner - driver's side
14 Air blower for air conditioning,heating
15 Electric steering lock
16 Signal amplifier for telephone, telephone preinstallation
17 Instrument cluster
18 Not assigned
19 KESSY
20 Operating lever underneath the steering wheel
21 Not assigned
22 Towing hitch - contact in the socket
23 Light - right
24 Panorama roof
25 Central locking front door - left, power windows - left
26 Heated front seats
27 Music amplifier
28 Towing hitch - left light
29 CNG relay
30 Not assigned
31 Headlight - left
32 Parking aid (Park Assist)
33 Airbag switch for hazard warning lights
34 TCS, ESC button, tyre control display, pressure sensor for air-conditioning, reverse light switch, interior mirror with automatic dimming, START-STOP button, telephone preinstallation, control for heating of rear seats, sensor for air-conditioning, 230 V power socket, sport-sound generator
35 Headlight, headlamp beam adjustment, diagnostic connector, camera, radar
36 Headlight right
37 Headlight left
38 Towing hitch - right light
39 Central locking front door - right, power windows - front and rear right
40 12-Volt power socket (Cigarette Lighter)
41 Not assigned
42 Central locking rear door - left, right, headlight washer system, windscreen washer system
43 Visor for gas discharge bulbs, interior lighting
44 Towing hitch - contact in the socket
45 Operating the seat adjustment
46 230-Volt power socket
47 Rear window wiper
48 Not assigned
49 Coil on starter relay, clutch pedal switch
50 Opening the boot lid
51 Belt tensioner - front passenger side
52 Not assigned
53 Relay for rear window heater
9 Haldex clutch
10 Touchscreen
11 Heated rear seats
12 Radio
13 Belt tensioner - driver's side
14 Air blower for air conditioning,heating
15 Electric steering lock
16 Signal amplifier for telephone, telephone preinstallation
17 Instrument cluster
18 Not assigned
19 KESSY
20 Operating lever underneath the steering wheel
21 Not assigned
22 Towing hitch - contact in the socket
23 Light - right
24 Panorama roof
25 Central locking front door - left, power windows - left
26 Heated front seats
27 Music amplifier
28 Towing hitch - left light
29 CNG relay
30 Not assigned
31 Headlight - left
32 Parking aid (Park Assist)
33 Airbag switch for hazard warning lights
34 TCS, ESC button, tyre control display, pressure sensor for air-conditioning, reverse light switch, interior mirror with automatic dimming, START-STOP button, telephone preinstallation, control for heating of rear seats, sensor for air-conditioning, 230 V power socket, sport-sound generator
35 Headlight, headlamp beam adjustment, diagnostic connector, camera, radar
36 Headlight right
37 Headlight left
38 Towing hitch - right light
39 Central locking front door - right, power windows - front and rear right
40 12-Volt power socket (Cigarette Lighter)
41 Not assigned
42 Central locking rear door - left, right, headlight washer system, windscreen washer system
43 Visor for gas discharge bulbs, interior lighting
44 Towing hitch - contact in the socket
45 Operating the seat adjustment
46 230-Volt power socket
47 Rear window wiper
48 Not assigned
49 Coil on starter relay, clutch pedal switch
50 Opening the boot lid
51 Belt tensioner - front passenger side
52 Not assigned
53 Relay for rear window heater
Fuses in the engine compartment
 |
| Removing the fuse box cover/fuses |
 |

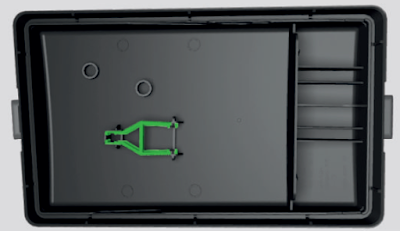

| Cover for the fuse box in the engine compartment: Plastic clip (Fuse Puller) for fuses |
Replacing fuses
› Press together the interlocks of the cover simultaneously in the direction of the arrow 1 .› Remove the cover in the direction of the arrow 2 .
› Replace the appropriate fuse.
› Place the cover on top of the fusebox.
› Push in the interlocks on the cover and lock.
CAUTION
The cover for the fuse box in the engine compartment must always be applied correctly. Water may get into the fuse box if the cover is not replaced properly - there is a risk of damage to the vehicle.
Assignment of fuses in the engine compartment
 |
| Engine Compartment Fuse Panel Diagram |
No. Consumer
1 ESC, ABS
2 ESC, ABS
3 Engine control unit
4 Radiator fan, oil temperature sensor, air volume sensor, control valve for fuel pressure, relay for electrical auxiliary heating, engine components
5 Coil of the relay for the ignition system, coil of the CNG relay, engine components
6 Brake sensor
7 Coolant pump, radiator shutter, engine components
8 Lambda probe
9 Ignition, glow plug system, engine components
10 Fuel pump, ignition
11 Electrical auxiliary heating system
12 Electrical auxiliary heating system
13 Automatic gearbox
14 Windscreen heater - right
15 Horn
16 Ignition, fuel pump
17 ABS, ESC, motor control unit, relay coil for the heated windscreen
18 Databus, battery data module
19 Windscreen wipers
20 Alarm
21 Windscreen heater - left
22 Engine control unit
23 Starter
24 Electrical auxiliary heating system
31 Not assigned
32 Not assigned
33 Not assigned
34 Haldex clutch
35 Not assigned
36 Not assigned
37 Aux. heating
38 Not assigned
2 ESC, ABS
3 Engine control unit
4 Radiator fan, oil temperature sensor, air volume sensor, control valve for fuel pressure, relay for electrical auxiliary heating, engine components
5 Coil of the relay for the ignition system, coil of the CNG relay, engine components
6 Brake sensor
7 Coolant pump, radiator shutter, engine components
8 Lambda probe
9 Ignition, glow plug system, engine components
10 Fuel pump, ignition
11 Electrical auxiliary heating system
12 Electrical auxiliary heating system
13 Automatic gearbox
14 Windscreen heater - right
15 Horn
16 Ignition, fuel pump
17 ABS, ESC, motor control unit, relay coil for the heated windscreen
18 Databus, battery data module
19 Windscreen wipers
20 Alarm
21 Windscreen heater - left
22 Engine control unit
23 Starter
24 Electrical auxiliary heating system
31 Not assigned
32 Not assigned
33 Not assigned
34 Haldex clutch
35 Not assigned
36 Not assigned
37 Aux. heating
38 Not assigned
