| 2016 GMC Sierra |
Fuses and Relays
The wiring circuits in the vehicle are protected from short circuits by fuses. This greatly reduces the chance of fires caused by electrical problems.
Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse. Be sure you replace a bad fuse with a new one of the ide ntical size and rating.
Fuses of the same amperage can be temporarily borrowed from another fuse location, if a fuse goes out. Replace the fuse as soon as you can.
Engine Compartment Fuse Block
 |
| Engine Compartment Fuse Block Location |
If the vehicle has a diesel engine, see the Duramax diesel supplement.
The engine compartment fuse block is in the engine compartment, on the driver side of the vehicle. Lift the cover to access the fuse block.
The engine compartment fuse block is in the engine compartment, on the driver side of the vehicle. Lift the cover to access the fuse block.
Caution
Spilling liquid on any electrical component on the vehicle may damage it. Always keep the
covers on any electrical component.
A fuse puller is available in the left instrument panel fuse block.
The vehicle may not be equipped with all of the fuses, relays, and features shown.
 |

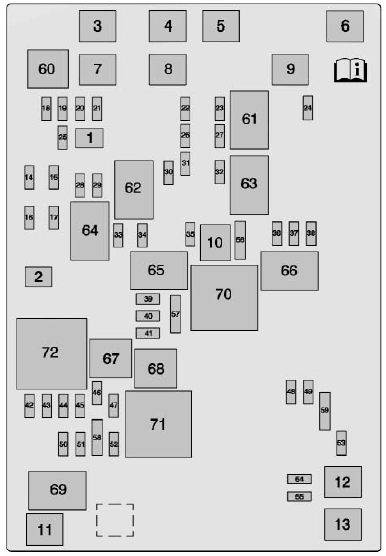

| Engine Compartment Fuse Panel Diagram |
Fuses ... Usage
1 Trailer brake
2 Trailer battery
3 Antilock Brake System (ABS) pump
4 Instrument panel BEC 1
5 MSB passenger (2015 Model - Spare)
6 4WD transfer case electronic control
7 Electronic park brake (2015 Model - Spare)
8 Instrument panel BEC 2
9 MSB driver (2015 Model - Spare)
10 Rear window defogger
11 Starter
12 Cooling fan 1
13 Cooling fan 2
14 Left trailer stop/ Turn lamps
15 Trailer parking lamps
16 Trailer reverse lamps
17 Right trailer stop/ Turn lamps
18 Fuel pump
19 Integrated chassis control module
20 Electronic suspension control module
21 Fuel pump power module
22 Upfitter 1
23 Upfitter 2
24 Front wiper
25 Antilock Brake System (ABS) Valves
26 Upfitter 2
27 Upfitter 3
28 Right parking lamps
29 Left parking lamps
30 Upfitter 3
31 Upfitter 4
32 Upfitter 4
33 Reverse lamps
34 Engine control module/Ignition
35 A/C clutch
36 Heated mirrors
37 Upfitter 1
38 Center high-mount stoplamp
39 Miscellaneous/ Ignition
40 Transmission/ Ignition
41 Fuel pump 2
42 Cooling fan clutch
43 Engine
44 Fuel injectors A-odd
45 Fuel injectors B-even
46 O2 Sensor B
47 Throttle control
48 Horn
49 Fog lamps
50 Oxygen (O2) Sensor A
51 Engine control module
52 Interior heater
53 Accessory power module/TPM pump (2015 Model - Spare)
54 Front washer
55 A/C/Battery regulated voltage control
56 A/C module/ Battery pack (
57 Transmission control module/ Engine control module
58 Headlamps
1 Trailer brake
2 Trailer battery
3 Antilock Brake System (ABS) pump
4 Instrument panel BEC 1
5 MSB passenger (2015 Model - Spare)
6 4WD transfer case electronic control
7 Electronic park brake (2015 Model - Spare)
8 Instrument panel BEC 2
9 MSB driver (2015 Model - Spare)
10 Rear window defogger
11 Starter
12 Cooling fan 1
13 Cooling fan 2
14 Left trailer stop/ Turn lamps
15 Trailer parking lamps
16 Trailer reverse lamps
17 Right trailer stop/ Turn lamps
18 Fuel pump
19 Integrated chassis control module
20 Electronic suspension control module
21 Fuel pump power module
22 Upfitter 1
23 Upfitter 2
24 Front wiper
25 Antilock Brake System (ABS) Valves
26 Upfitter 2
27 Upfitter 3
28 Right parking lamps
29 Left parking lamps
30 Upfitter 3
31 Upfitter 4
32 Upfitter 4
33 Reverse lamps
34 Engine control module/Ignition
35 A/C clutch
36 Heated mirrors
37 Upfitter 1
38 Center high-mount stoplamp
39 Miscellaneous/ Ignition
40 Transmission/ Ignition
41 Fuel pump 2
42 Cooling fan clutch
43 Engine
44 Fuel injectors A-odd
45 Fuel injectors B-even
46 O2 Sensor B
47 Throttle control
48 Horn
49 Fog lamps
50 Oxygen (O2) Sensor A
51 Engine control module
52 Interior heater
53 Accessory power module/TPM pump (2015 Model - Spare)
54 Front washer
55 A/C/Battery regulated voltage control
56 A/C module/ Battery pack (
57 Transmission control module/ Engine control module
58 Headlamps
59 Fuel pump
Relays ... Usage
60 Upfitter 2
61 Upfitter 3
62 Upfitter 4
63 Trailer parking lamps
64 Run/Crank
65 Upfitter 1
66 Fuel pump 2
67 A/C control
68 Starter
69 Rear window defogger
70 Engine control module
71 Cooling fan clutch
72 CKT 95
73 CKT 92
60 Upfitter 2
61 Upfitter 3
62 Upfitter 4
63 Trailer parking lamps
64 Run/Crank
65 Upfitter 1
66 Fuel pump 2
67 A/C control
68 Starter
69 Rear window defogger
70 Engine control module
71 Cooling fan clutch
72 CKT 95
73 CKT 92
Instrument Panel Fuse Block (Right)
 |
| Instrument Panel Fuse Block Location - Right |
The right instrument panel fuse block access door is on the passenger side edge of the
instrument panel. Pull off the cover to access the fuse block
 |
| Instrument Panel Fuse Panel Diagram- Right |
The vehicle may not be equipped with all of the fuses, relays, and features shown.
Fuses ... Usage
1 Accessory power outlet 3
2 Accessory power outlet 4
7 Body control module 4
8 Body control module 8
9 Rear seat entertainment
10 Cargo lamp
15 Steering wheel controls
18 Radio
19 –
20 Sunroof
23 Airbag/Info
26 Export/Power take off/ SEO battery 1
27 Obstacle detection/ USB ports
28 Body control module 2
32 SEO battery 2
35 AC inverter
36 Amplifier
37 –
39 Rear sliding window
42 Right door window motor
43 Front blower
44 SEO
45 Body control module 6
46 Body control module 7
47 Passenger seat
50 Retained accessory power
51 Rear sliding window open
52 Rear sliding window close
1 Accessory power outlet 3
2 Accessory power outlet 4
7 Body control module 4
8 Body control module 8
9 Rear seat entertainment
10 Cargo lamp
15 Steering wheel controls
18 Radio
19 –
20 Sunroof
23 Airbag/Info
26 Export/Power take off/ SEO battery 1
27 Obstacle detection/ USB ports
28 Body control module 2
32 SEO battery 2
35 AC inverter
36 Amplifier
37 –
39 Rear sliding window
42 Right door window motor
43 Front blower
44 SEO
45 Body control module 6
46 Body control module 7
47 Passenger seat
50 Retained accessory power
51 Rear sliding window open
52 Rear sliding window close
Instrument Panel Fuse Block (Left)
 |
| Instrument Panel Fuse Block Location - Left |
The left instrument panel fuse block access door is on the driver side edge of the instrument panel. Pull off the cover to access the fuse block.
 |
| Instrument Panel Fuse Panel Diagram- Left |
The vehicle may not be equipped with all of the fuses, relays, and features shown.
Number ... Usage
1 Accessory power outlet 2
2 SEO/Retained accessory power
3 Universal garage door opener/Interior rearview mirror
6 Body control module 3
7 Body control module 5
8 Driver window switch/ Mirror switch
9 –
10 Accessory power outlet/Retained accessory power
11 Accessory power outlet battery
12 Accessory power outlet 1/Cigarette lighter
13 Discrete logic ignition switch
14 Switch backlighting
17 Body control module 1
19 –
20 –
22 Heater, Ventilation, and Air Conditioning/ Auxiliary Heater, Ventilation and Air Conditioning Ignition ( HVAC/Auxiliary HVAC/Ignition)
23 Instrument cluster/ Ignition sensing diagnostic module/ Ignition
24 –
25 Data link connector/ Driver seat module
26 Passive entry/Passive start/HVAC
27 –
28 –
29 Park enable/ Electrically adjustable pedals
30 SEO
31 Accessory/Run/Crank
32 Heated steering wheel
33 –
34 Instrument cluster
36 –
37 –
38 4WD TREC
40 Left doors
41 Driver power seat
43 Left heated, cooled or ventilated seats (if equipped)
44 Right heated, cooled or ventilated seats (if equipped)
45 –
49 Retained accessory power
50 Run/Crank
24 –
25 Data link connector/ Driver seat module
26 Passive entry/Passive start/HVAC
27 –
28 –
29 Park enable/ Electrically adjustable pedals
30 SEO
31 Accessory/Run/Crank
32 Heated steering wheel
33 –
34 Instrument cluster
36 –
37 –
38 4WD TREC
40 Left doors
41 Driver power seat
43 Left heated, cooled or ventilated seats (if equipped)
44 Right heated, cooled or ventilated seats (if equipped)
45 –
49 Retained accessory power
50 Run/Crank
