2015 Subaru Legacy Fuse Box Diagram

2015 Subaru Legacy

Fuses and Relays

CAUTION
Never replace a fuse with one having a higher rating or with material other than a fuse because serious damage or a fire could result.

The fuses are designed to melt during an overload to prevent damage to the wiring harness and electrical equipment. The fuses are located in two fuse boxes.

Instrument Fuse Box Location

One is located under the instrument panel behind the fuse box cover on the driver’s seat side. To remove the cover, pull it out.

Engine Compartment Fuse Block

The other one (main fuse box) is housed in the engine compartment.



Spare Fuses



The spare fuses are stored in the main fuse box cover in the engine compartment.


Fuse Puller Location

The fuse puller is stored in the main fuse box in the engine compartment. To pick up the fuse puller, pull it out while pinching the puller head with your fingers.

1) Good  Fuse  ,  2) Blown Fuse

If any lights, accessories or other electrical controls do not operate, inspect the corresponding fuse. If a fuse has blown, replace it.
1. Turn the ignition switch to the “LOCK”/ “OFF” position and turn off all electrical accessories.
2. Remove the fuse box cover.
3. Determine which fuse may be blown.

Fuse Puller

4. Pull out the fuse with the fuse puller.
5. Inspect the fuse. If it has blown, replace it with a spare fuse of the same rating.
6. If the same fuse blows again, this indicates that its system has a problem. Contact your SUBARU dealer for repairs.

Fuse panel located in the passenger compartment

Passenger Compartment Fuse Panel Diagram

Fuse panel .. Fuse rating .. Circuit
1 7.5A START1
2 20A 12V SOCKET
3 7.5A IG1-1
4 15A AUDIO NAVI
5 15A UNIT IG2-2
6 20A P/W R.LH
7 10A CIGAR (Cigarette Lighter)
8 15A A/C IG
9 7.5A ACC
10 7.5A UNIT IG2-1
11 30A P/W MAIN1
12 7.5A START2
13 Empty
14 7.5A UNIT+B
15 7.5A METER IG
16 20A P/W R.RH
17 7.5A MIR
18 7.5A LAMP IG
19 7.5A IG1-2
20 10A SRS AIR BAG
21 20A P/W PASS1
22 15A SEAT HTR R

23 10A DRL (Daytime Running Lights)
24 20A P/W MAIN2
25 Empty
26 10A BACK UP
27 20A WIPER DEICER
28 20A TRAIL R.FOG
29 20A P/W PASS2  (Power Seat Passenger 2)
30 Empty
31 7.5A SMT
32 15A SEAT HTR F (Seat Heater Front)
33 7.5A KEY SW
34 7.5A D_OP+B
35 20A SUN ROOF
36 Empty
37 7.5A STOP
38 7.5A EYE SIGHT

Fuse panel located in the Engine Compartment

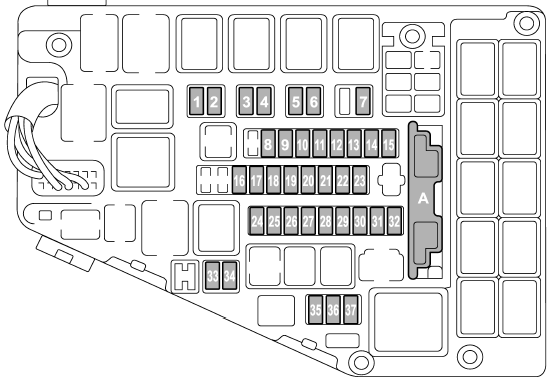

Engine Compartment Fuse Panel Diagram - A) Main Fuse



Fuse panel .. Fuse rating .. Circuit
1 7.5A HORN RH
2 7.5A HORN LH
3 10A ILLUMI
4 10A TAIL
5 15A H/L LO RH  (Head Light Low Right Hand)
6 15A H/L LO LH  (Head Light Low Let Hand)
7 10A H/L HI LH  (Head Light High Left  Hand)
8 15A D/L
9 10A H/L HI RH (Head Light High Right Hand)
10 7.5A ALT-S
11 20A FUEL
12 15A HAZARD
13 30A IG2
14 7.5A PU B/UP
15 7.5A OBD
16 20A*1  O2 HTR , 25A*2
17 15A E/G2
18 15A ETC
19 15A E/G1

20 15A AVCS
21 15A INJ
22 7.5A CVT SSR
23 20A TCU
24 30A BACKUP
25 7.5A ACTGS
26 25A SUB FAN
27 25A MAIN FAN
28 30A ABS SOL
29 20A AUDIO
30 25A R.DEF
31 15A BLOWER
32 15A BLOWER
33 10A F.FOG RH
34 10A F.FOG LH
35 15A R.WIPER
36 15A F.WASH
37 30A F.WIPER

*1: 2.5 L models
*2: 3.6 L models
