| 2013 Skoda Octavia |
Fuses and Relays
Individual electrical circuits are protected by fuses.
› Switch off the ignition and the appropriate consumer before changing a fuse.
› Find out which fuse belongs to the component that is not operating
› Take the plastic clip located under the cover of the fuse box in the engine compartment,
insert into the fuse and remove it
› A blown fuses is recognisable by the molten metal strip. Replace the faulty fuse
with a new one of the same amperage.
The plastic clip can be found underneath the cover of the fuse box in the engine
compartment.
Electrically adjustable seats are protected by automatic circuit breakers, which switch on again automatically after a few seconds after the overload has been eliminated.
with a new one of the same amperage.
The plastic clip can be found underneath the cover of the fuse box in the engine
compartment.
Electrically adjustable seats are protected by automatic circuit breakers, which switch on again automatically after a few seconds after the overload has been eliminated.
Colour coding of fuses
light brown 5
dark brown 7.5
red 10
blue 15
yellow/blue 20
white 25
green/pink 30
orange/green 40
red 50
WARNING
Always read and observe the warnings before completing any work in the engine compartment.
CAUTION
■ Have the electrical system checked as quickly as possible by a ŠKODA specialist garage if a newly inserted fuse blows again after a short time.
■ The cover for the fuse box in the engine compartment must always be applied correctly. If the cover is not replaced properly, water may get into the fuse box - risk of vehicle damage!
■ Never repair fuses and also do not replace them with a fuse of a higher amperage - risk of fire! A different electrical system could be damaged.
Note
■ We recommend always carrying replacement fuses in the vehicle. A box of replacement
fuses can be purchased from ŠKODA Original Accessories.
■ Multiple fuses may exist for a single power consuming device.
■ Multiple power consuming devices can share a single fuse.
Fuses in the Dash Panel
 |
| Storage compartment in the dash panel |
 |
| Schematic diagram of the fuse box |
The fuse box can be found behind the stowage compartment in the left-hand part of the dash panel.
Replacing fuses
› Opening the stowage compartment .
› Grab hold of the stowage compartment in the area of the arrows.
› Fold out the stowage compartment by pulling in the direction of arrow 1 .
› Replace the appropriate fuse.
› Fold back the stowage compartment by pressing into the secured position in the dash panel in the direction of arrow 2 .
› Close the stowage compartment.
Replacing fuses
› Opening the stowage compartment .
› Grab hold of the stowage compartment in the area of the arrows.
› Fold out the stowage compartment by pulling in the direction of arrow 1 .
› Replace the appropriate fuse.
› Fold back the stowage compartment by pressing into the secured position in the dash panel in the direction of arrow 2 .
› Close the stowage compartment.
Fuse assignment in the dash panel
No. .. Power consumer
1 Not assigned
2 Not assigned
3 Not assigned
4 Not assigned
5 Data bus control unit
6 Alarm sensor
7 Control unit for the air conditioning system, heating, receiver for remote control for the auxiliary heating, selector lever for the automatic gearbox, relay for the rear window heater, replay for the windscreen heater
8 Light switch, rain sensor, diagnostic socket
9 Haldex clutch
10 Touchscreen
11 Heated rear seats
12 Radio
13 Heated rear seats
14 Air blower for air conditioning,heating
15 Electric steering lock
16 Signal amplifier for telephone, telephone preinstallation
17 Instrument cluster
18 Not assigned
19 KESSY control unit
20 Steering wheel module
21 Radio accessories
22 Luggage compartment door opening
23 Light - right
24 Panorama roof
25 Control unit for central locking front door right, power windows - left
26 Heated front seats
27 Music amplifier
28 Towing device
29 Not assigned
30 Belt tensioner - driver's side
31 Headlight - left
32 Parking aid (Park Assist)
33 Airbag
34 TCS button, ESC, tyre control display, pressure sensor for air-conditioning, reverse light switch, dimming rear view mirror, START-STOP button, telephone preinstallation, control for heating of rear seats, sensor for air-conditioning, 230 V power socket, sound actuator
35 Headlight, headlamp beam adjustment, diagnostic connector, camera, radar
36 Headlight right
37 Headlight left
38 Towing device
39 Control unit for central locking front door - right, power windows - front and rear right
40 12-Volt power socket (Cigar Lighter)
41 CNG relay
42 Control unit for central locking rear door - left, right, headlight cleaning system, windscreen wipers
43 Visor for gas discharge bulbs, interior lighting
44 Towing device
45 Control unit for control of seat adjustment
46 230-Volt power socket
47 Rear window wiper
48 Not assigned
49 Coil on starter relay, clutch pedal switch
50 Not assigned
51 Belt tensioner - front passenger side
52 Not assigned
53 Relay for rear window heater
Note
On right-hand drive vehicles, the fuse box is located on the front passenger's side behind the stowage compartment in the left-hand section of the dash panel.
Engine compartment Fuse Box
 |

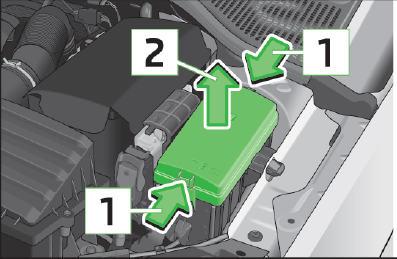

| Fuse box cover in engine compartment |
 |
| Schematic diagram of the fuse box |
 |
| Cover for the fuse box in the engine compartment: Plastic clip for fuses (Fuse Puller) |
Replacing fuses
› Press together the interlocks of the cover simultaneously in the direction of the arrow 1 .
› Remove the cover in the direction of the arrow 2 .
› Replace the appropriate fuse.
› Place the cover on top of the fusebox.
› Push in the interlocks on the cover and lock.
› Press together the interlocks of the cover simultaneously in the direction of the arrow 1 .
› Remove the cover in the direction of the arrow 2 .
› Replace the appropriate fuse.
› Place the cover on top of the fusebox.
› Push in the interlocks on the cover and lock.
Fuse assignment in engine compartment
No. .. Power consumer
F1 Control unit for ESC (2014 Model - Control unit for ESC, ABS)
F2 Control unit for ESC, ABS
F3 Engine control unit
F4 Engine control unit, relay for electric auxiliary heating
F5 Engine components
F6 Brake sensor, engine components
F7 Coolant pump, engine components
F8 Lambda probe
F9 Ignition, control unit for glow plug system, engine components
F10 Control unit for fuel pump, ignition
F11 Electrical auxiliary heating system
F12 Electrical auxiliary heating system
F13 Control unit for automatic gearbox
F14 Windscreen heater - left
F15 Horn
F16 Ignition
F17 Control unit for ABS, ESC, engine control unit
F18 Data bus control unit
F19 Windscreen wipers
F20 Alarm
F21 ABS (2014 Model - Windscreen heater - left)
F22 Engine control unit
F23 Starter
F24 Electrical auxiliary heating system
F31 Not assigned
F32 Not assigned
F33 Not assigned
F34 Windscreen heater - right
F35 Not assigned
F36 Not assigned
F37 Control unit for auxiliary heating
F38 Not assigned
