2015 - 2019 Vauxhall / Opel Corsa Fuse Box Diagram

2016 Vauxhall Corsa

Fuses



Data on the replacement fuse must match the data on the defective fuse. There are two fuse boxes in the vehicle:
● in the front left of the engine compartment
● in left-hand drive vehicles, behind the light switch, or, in right-hand drive vehicles, behind the glovebox

Before replacing a fuse, turn off the respective switch and the ignition.

There are different kinds of fuses in the vehicle.



Blown Fuse

Depending on the type of fuse, a blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.

Some functions are protected by several fuses. Fuses may also be inserted without existence of a function.

Fuse extractor

A fuse extractor may be located in the fuse box in the engine compartment.

Fuse Extractor

Place the fuse extractor on the various types of fuse from the top, and withdraw fuse.


Engine compartment fuse box

Engine compartment fuse box

The fuse box is in the front left of the engine compartment.
Disengage the cover and fold it upwards until it stops. Remove the cover vertically upwards.

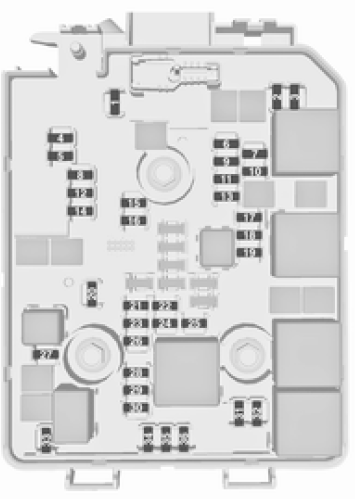

Engine compartment Fuse Panel Diagram

Fuse Table

No. .. Circuit
1 Trailer interface module, rear carrier system  (2019 Model - --)
2 -
3 Battery sensor
4 Chassis control module fuel pump
5 ABS
6 Low beam and Daytime running light left, Xenon high beam shutter left and right
7 –
8 MTA Transmission control module, LPG control module
9 Body control module voltage detection
10 Headlamp levelling
11 Rear wiper
12 Heated rear window
13 Low beam and Daytime running light right

14 Heated exterior mirror
15 –
16 Brake booster kit
17 Ignition, crank power supply
18 Engine control module
19 Fuel pump
20 –
21 Engine solenoids, engine sensors
22 –
23 Injection system
24 Washer system
25 –
26 Engine sensors
27 Heater shut off valve
28 Engine control module
29 Engine control module

30 Engine control module
31 High beam left, Xenon low beam left
32 High beam right, Xenon low beam right
33 Engine control module
34 Horn
35 Air condition compressor clutch
36 Front fog lights

Engine compartment Fuse Panel Diagram 2

No. .. Circuit
1 ABS pump
2 Front wiper
3 Blower
4 Instrument panel (2019 Model - Seat heating)
5 – (2019 Model - Cooling fan)
6 Diesel fuel heater
7 Transmission
8 Cooling fan low
9 Cooling fan high
10 Cooling fan
11 Starter

After having changed defective fuses close the fuse box cover and press until it engages.
If the fuse box cover is not closed correctly, malfunction may occur.

Instrument panel fuse box

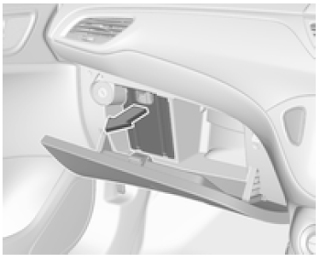

Right-hand drive vehicles - The fuse box is located behind a cover in the glovebox. Open the glovebox, then open the cover and fold it down.

Right-hand drive vehicles - Instrument panel fuse box Location

Left-hand drive vehicles - The fuse box is behind the light switch in the instrument panel. Hold the handle, then pull and fold down the light switch.

Left-hand drive vehicles - Instrument panel fuse box Location

Instrument  Fuse Panel Diagram

No. .. Circuit
1 –
2 –
3 Power windows
4 Voltage transformer
5 Body control module 1
6 Body control module 2
7 Body control module 3
8 Body control module 4
9 Body control module 5
10 Body control module 6
11 Body control module 7
12 Body control module 8
13 –
14 Tailgate
15 Airbag system
16 Data link connection
17 Ignition

18 Air conditioning system
19 Sunroof
20 Parking assist/Rain sensor/ Front camera
21 Brake switch
22 Audio system
23 Display
24 –
25 Auxiliary jack
26 Instrument panel
27 Seat heating, driver  (2019 Model - --)
28 –
29 –
30 Instrument panel/Seat heating/ FlexDock  (2019 Model - --)
31 Horn
32 Seat heating, passenger (2019 Model - --)
33 Heated steering wheel

34 –
35 Tyre repair kit
36 –
37 Rear wiper
38 Cigarette lighter
39 Power windows/Sunroof/Automatic transmission display
40 –
