2020 - 2022 Kia Sportage Fuse Panel Diagram

2020 Kia Sportage
2020 Kia Sportage


Fuse Replacement

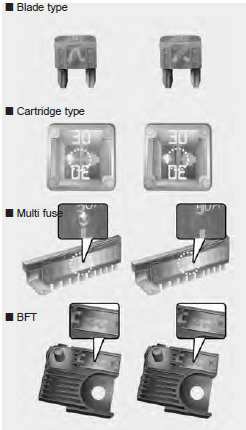

Fuses Types
Fuses Types

A vehicle’s electrical system is protected from electrical overload damage by fuses.
This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will melt.
If the electrical system does not work, first check the driver’s side fuse panel.
Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized Kia dealer.
Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.


Fuses – Frequently Asked Questions


When do I need to check a fuse?
If electrical components in the vehicle are not working.
When do I need to replace a fuse?
If a fuse has blown.
How do I identify a blown fuse?
You can identify a blown fuse by a broken wire within the fuse.


WARNING - Fuse replacement

• Never replace a fuse with anything but another fuse of the same rating.
• A higher capacity fuse could cause damage and possibly a fire.
• Never install a wire or aluminum foil instead of the proper fuse - even as a temporary
repair. It may cause extensive wiring damage and a possible fire.

• Do not arbitrarily modify or add-on electric wiring to the vehicle.


CAUTION
Do not use a screwdriver or any other metal object to remove fuses because it may cause a  short circuit and damage the system.

NOTICE
• When replacing fuse, turn the ignition “OFF” and turn off switches of all electrical devices
then remove battery (-) terminal.
• The actual fuse/relay panel label may differ from equipped items.

WARNING - Electrical Fire
Always ensure replacements fuses and relays are securely fastened when installed. Failure to do so can result in a vehicle fire.


Inner panel fuse replacement



Inner panel fuse replacement
 Inner panel fuse replacement

1. Turn the ignition switch and all other switches off.
2. Open the fuse panel cover.
If the switch is located in the “OFF” position, a caution indicator will be displayed in the cluster.

CAUTION
• When replacing a blown fuse or relay, make sure the new fuse or relay fits tightly into the clips. Failure to tightly install the fuse or relay may cause damage to the wiring and electric systems.
• Do not remove fuses, relays and terminals fastened with bolts or nuts.The fuses, relays and terminals may not be fastened correctly which may cause vehicle damage.

Engine compartment Fuse Box
Engine compartment Fuse Box

3. Pull the suspected fuse straight out. Use the removal tool provided on the engine compartment fuse panel cover.
4. Check the removed fuse; replace it if it is blown. Spare fuses are provided in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Kia dealer.
If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the power outlet fuse.
If the head lamp, turn signal lamp, stop signal lamp, fog lamp, DRL, tail lamp, HMSL do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse
is blown, it must be replaced.

✽ NOTICE
If the headlamp, fog lamp, turn signal lamp, or tail lamp malfunction even without any problem to the lamps, have the vehicle checked by an authorized Kia dealer for assistance.

CAUTION - Fuse Panel Covers
• Set all switches to ON before driving.
• If the vehicle is going to be unused for over 1 month, set all switches to OFF to prevent the batteries from draining.
• The contact points of the switches may wear out with excessive use. Please refrain from excessive use of the switches (except for long-term parking for over 1 month).

Fuse Switch


Fuse Switch
Fuse Switch

Always set the fuse switch to the ON position before using the vehicle.
If you move the switch to the OFF position, some items such as audio and digital clock must be reset and transmitter (or smart key) may not work properly. When the switch is Off, the caution indicator will be displayed on the instrument cluster.
Always place the fuse switch in the ON position while driving the vehicle.
If the switch is located in the “OFF” position, a caution indicator will be displayed in the cluster.

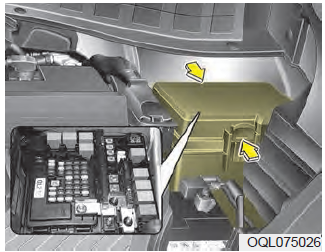

Engine compartment fuse replacement


Engine compartment Fuse Box Location
Engine compartment Fuse Box Location


1. Turn the ignition switch and all other switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the cover up. When the blade type fuse is disconnected, remove it by using the clip designed for changing fuses located in the engine compartment fuse box. Upon removal, securely insert reserve fuse of the same rating.
3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Kia dealer.

CAUTION
After checking the fuse panel in the engine compartment, securely install the fuse panel cover through the audible clicking sound. If not, electrical failures may occur from water contact.

Multi Fuse


Multi fuse
Multi fuse

If the multi fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.
5. Reverse these steps to reinstall the multi fuse.

✽ NOTICE
Do not disassemble nor assemble the multi fuse when it is secured with nuts and bolts. Incorrect or partial assembly torque may cause a fire. Have the vehicle checked by an  authorized Kia dealer.

Main fuse


Main fuse
Main fuse

If the main fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.
5. Reverse these steps to reinstall the main fuse.

✽ NOTICE
The electronic system may not function correctly even when the engine compartment and internal fuse box’s individual fuses are not disconnected.
In such case the cause of the problem may be disconnection of the main fuse (BFT type), which is located inside the positive battery terminal (+) cap.
Since the main fuse is designed more intricately than other parts, have the vehicle checked by an authorized Kia dealer.

CAUTION

Visually inspect the battery cap to ensure it is securely closed.
If the battery cap is not securely closed, moisture may enter the system and damage the electrical components.

Driver’s side fuse panel



Driver’s side fuse panel Cover
 Driver’s side fuse panel Cover

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

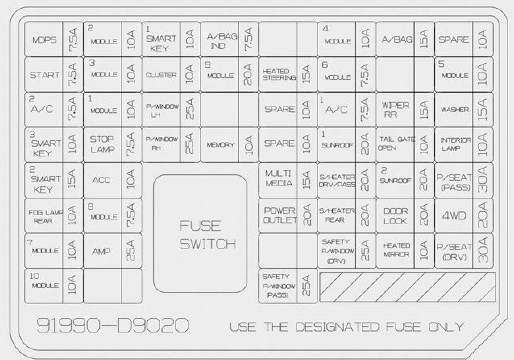

Driver’s side fuse panel Diagram
Driver’s side fuse panel Diagram

Instrument panel (Driver’s side fuse panel)



Fuse Name  ... Fuse rating ... Circuit Protected

MDPS 7.5A MDPS Unit
MODULE 2 10A Cooling Fan Unit
SMART KEY 1 10A Smart Key Control Module/Immobilizer Module
A/BAG IND 7.5A Instrument Cluster [Audio & Manual A/C] Hazard Switch [Audio & Auto A/C] A/C Control Module [Navigation] Center Facia Lamp
MODULE 4 10A Console Switch, Blind Spot Detection Radar LH/RH, AWD ECM, BCM, Lane Departure Warning Control Module
AIR BAG 15A SRS Control Module, Passenger seat Occupant Detection Unit
START 7.5A [W/O Smart Key & IMMO.] ICM Relay Box (Burglar Alarm Relay), Ignition  Switch  [With Smart Key / IMMO.] Transmission Range Switch, ECM, Smart Key Control Module
MODULE 3 10A Front/Rear Seat Warmer Control Module, ATM Shift Lever ILL., Front Air Ventilation Seat Control Module, A/V & Navigation Head Unit, Electro Chromic Mirror, Audio, A/C Control Module, Multipurpose Check Connector, Adaptive Front Lighting Module, Crash Pad Switch, Console Switch
CLUSTER 10A Instrument Cluster
MODULE 9 20A PCB Block (Fuse - ABS 3, VACUUM PUMP 2, ECU 6, AEB, TCU 2,  MODULE)
HEATED STEERING 15A BCM
MODULE 6 7.5A Front/Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module
MODULE 5 10A BCM, Smart Key Control Module
A/C 2 7.5A A/C Control Module
MODULE 1 10A BCM, ATM Shift Lever
P/ WINDOW LH 25A Power Window Main Switch
A/C 1 7.5A A/C Control Module, Cluster Ionizer, E/R Junction Block (Blower Relay)
WIPER RR 15A Rear Wiper Motor, ICM Relay Box (Rear Wiper Relay)
WASHER 15A Multifunction Switch
SMART KEY 3 10A [W/O Smart Key] Immobilizer Module [With Smart Key] Smart Key Control Module, Start/Stop Button Switch
STOP LAMP 7.5A Smart Key Control Module, Stop Lamp Switch
P/ WINDOW RH 25A Power Window Main Switch, Passenger Power Window Switch
MEMORY 10A Instrument Cluster, BCM, ICM Relay Box (Outside Mirror Folding/Unfolding Relay), Electro Chromic Mirror, A/C Control Module, Console Switch, Crash Pad Switch
SUN ROOF 1 20A Panorama Sunroof
TAIL GATE OPEN 10A Tail Gate Relay
INTERIOR LAMP 10A Ignition Key Ill.& Door Warning Switch, Room Lamp, Overhead Console Lamp, Front Vanity Lamp LH/RH, Rear Personal Lamp LH/RH, Luggage Lamp, Glove Box Lamp, Wireless Charger
SMART KEY 2 15A Smart Key Control Module
ACC 10A Rear USB Charger, AMP, Power Outside Mirror Switch, PCB Block(Power Outlet Relay), Smart Key Control Module, Audio, A/V & Navigation Head Unit, BCM, Wireless Charger
MULTI MEDIA 15A Audio, A/V & Navigation Head Unit, Rear USB Charger
S/HEATER DRV/PASS 20A Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
SUN ROOF 2 20A Panorama Sunroof
P/SEAT (PASS) 30A Passenger Seat Manual Switch
MODULE 8 7.5A Key Solenoid, On Board Diagnostic Module
POWER OUTLET 20A Front Power Outlet #1 (Front Cigarette Lighter)
S/HEATER REAR 20A Rear Seat Warmer Control Module
DOOR LOCK 20A Door Lock/Unlock Relay
4WD 20A AWD ECM
MODULE 7 10A Hazard Switch, Driver/Passenger Smart Key Outside Handle, AEB Sensor
AMP 25A AMP SAFETY
P/ WINDOW (DRV) 25A Driver’s seat Safety Power Window Module
HEATED MIRROR 10A Driver/Passenger Power Outside Mirror, A/C Control Module
P/SEAT (DRV) 30A Driver Seat Manual Switch
MODULE 10 10A BCM
SAFETY  P/WINDOW (PASS) 25A Passenger’s seat Safety Power Window Module

Engine compartment fuse panel



Engine compartment fuse panel Cover
Engine compartment fuse panel Cover



Engine compartment fuse panel Diagram
Engine compartment fuse panel Diagram


Engine room compartment fuse panel


Fuse Name .. Fuse rating .. Circuit Protected


MULTI FUSE

COOLING FAN 3 80A Cooling Fan Motor
MDPS 80A MDPS Unit
B+ 1 60A Smart Junction Block (IPS 2 (5CH), IPS 3 (2CH), IPS 4 (2CH), IPS 5 (2CH), IPS 6 (1CH), Fuse - AMP), Module 10
B+ 2 60A Smart Junction Block (IPS 1 (5CH), Fuse - MODULE 7, SMART KEY 2, SMART KET 3, STOP LAMP)
B+ 3 50A Smart Junction Block (Fuse - SUNROOF 1, SUNROOF 2, S/HEATER DRV/PASS, S/HEATER REAR, SAFETY P/WINDOW, Power Window Relay)
BLOWER 40A Blower Relay
REAR HEATED 40A Rear Heated Relay
IG1 40A [W/O Smart Key] Ignition Switch, [With Smart Key] PCB Block (PDM (IG1)/PDM (ACC) Relay)
IG2 30A Start Relay, [W/O Smart Key] Ignition Switch, [With Smart Key] PCB Block (PDM (IG2) Relay)

FUSE

B+ 4 50A Smart Junction Block (Fuse - AWD, P/SEAT (DRV), P/SEAT (PASS), TAIL GATE OPEN, DOOR LOCK, Leak Current Autocut Device Relay), Module 8 COOLING FAN 1 50A Cooling Fan 1 Relay
ABS 1 40A ESC Control Module, Multipurpose Check Connector
POWER LIFTGATE 40A Power Liftgate Module
ABS 2 40A ESC Module
COOLING FAN 2 40A Cooling Fan 1 Relay
WIPER FRT 2 10A BCM
E-CVVT 2 20A PCM
E-CVVT 1 20A PCM
WIPER FRT 1 30A [W/O Smart Key] Ignition Switch, [With Smart Key] PDM (IG2) Relay
TCU 1 15A PCM
A/C 10A Air Control Unit Relay
ECU 3 20A PCM
HORN 15A Horn Relay
BATTERY MANAGEMENT 10A Battery Sensor
SENSOR 2 10A Oil Control Valve, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, RCV Control Solenoid
SENSOR 1 15A Oxygen Sensor (Up/Down)
ECU 2 20A Ignition Coil #1/#2/#3/#4
ECU 4 15A PCM
SENSOR 3 10A E/R Junction Block (Cooling Fan 1 Relay), Canister Close Valve, E/R Junction Block (Air Control Unit
MODULE 2 10A E/R Junction Block (Fuel Pump Relay)
VACUUM PUMP 1 20A Vacuum Pump
DEICER 15A E/R Junction Block (Deicer Relay)
FUEL PUMP 20A Fuel Pump Relay
MODULE 1 7.5A Stop Lamp Switch
B/ALARM HORN 15A E/R Junction Block (B/Alarm Horn Relay)
H/LAMP HI 10A BI-Function H/LP Relay
FCA 10A Forward Collision-avoidance Assist (FCA) Sensor
ABS 3 10A ESC Module
VACUUM PUMP 2 15A Vacuum Pump, Vacuum Switch
POWER OUTLET 1 20A Front Power Outlet #2
ECU 6 10A PCM
TCU 2 15A Transmission Range Switch
B/UP LAMP 10A Rear Bumper Lamp LH/RH, Electro Chromic Mirror
POWER OUTLET 2 20A Rear Power Outlet
ECU 1 30A Engine Control Relay

Relay

Relay Name ... Type

Cooling Fan 1 Relay   MINI
Rear Defogger Relay  MICRO
A/C Relay                    MICRO
B/Alarm Horn Relay    MICRO
Deicer Relay               MICRO
Cooling Fan 2 Relay   MICRO
Start Relay                  MICRO
Blower Relay               MICRO
Fuel pump Relay         MICRO

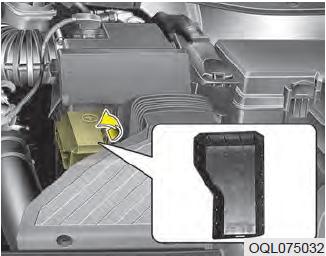

Engine compartment fuse panel (Battery terminal cover)



Battery terminal cover
Battery terminal cover


✽ NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

Battery terminal cover
Battery terminal cover
