2020 Hyundai i10
|
Fuse Types
 |
Fuses Types - Blade, Cartridge and Multi Fuse
|
Information
Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.
WARNINGNEVER replace a fuse with anything but another fuse of the same rating.
NOTICE
Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.
A fuse puller is in the engine compartment fuse block.
Instrument panel fuse replacement
 |
Instrument panel fuse Loocation
|
Fuse switch
 |
Fuse Switch Location
|
 |
Turn On Fuse Switch
|
 |
Driver's side fuse panel Diagram
|
 |
2020 Hyundai i10 - Driver Fuse Panel Cover
|
 |
Driver's Side Fuse Box
|

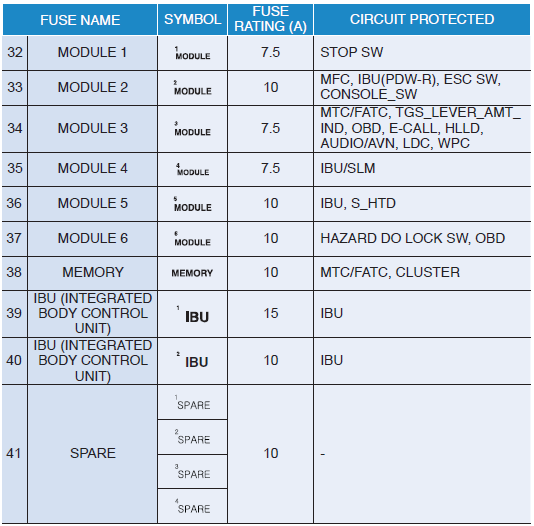

Fuse Specification Chart
 |
Driver's Side Fuse Panel
|
 |
| Driver Side Fuse Panel |
Engine compartment fuse panel
 |

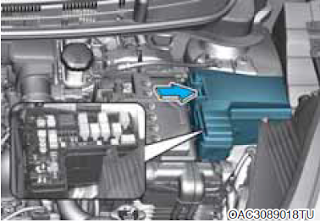

Engine compartment Fuse Box Location
|
Multi fuse (Main fuse)
If the main fuse is blown, it must be removed as follows:
1. Disconnect the negative battery cable.
2. Remove the nuts shown in the picture above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.
 |
Engine compartment fuse panel Diagram
|
 |
Engine compartment fuse panel Diagram
|
 |
| Engine compartment fuse panel Diagram |
|
