2018 - 2022 Kia Rio - Fuse Box Diagram

2018 Kia Rio
2018 Kia Rio

Fuses and Relays

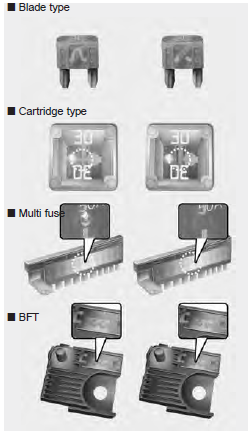

Fuses Type : Blade, Cartridge, Multi Fuse, BFT - Normal, Blown
Fuses Type : Blade, Cartridge, Multi Fuse, BFT - Normal, Blown

A vehicle’s electrical system is protected from electrical overload damage by fuses.
This vehicle has 2 (or 3) fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will melt.
If the electrical system does not work, first check the driver’s side fuse panel.
Always replace a blown fuse with one of the same rating.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized Kia dealer.

Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.
• Do not arbitrarily modify or add-on electric wiring to the vehicle.

WARNING - Fuse replacement
• Never replace a fuse with anything but another fuse of the same rating.
• A higher capacity fuse could cause damage and possibly a fire.
• Never install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and a possible fire.

CAUTION
Do not use a screwdriver or any other metal object to remove fuses because it may cause a
short circuit and damage the system.

NOTICE
• When replacing fuse, turn the ignition “OFF” and turn off switches of all electrical devices
then remove battery (-) terminal.
• The actual fuse/relay panel label may differ from equipped items.

WARNING - Electrical Fire
Always ensure replacements fuses and relays are securely fastened when installed. Failure
to do so can result in a vehicle fire.

CAUTION
• When replacing a blown fuse or relay, make sure the new fuse or relay fits tightly into the clips. Failure to tightly install the fuse or relay may cause damage to the wiring and electric systems.
• Do not remove fuses, relays and terminals fastened with bolts or nuts.The fuses, relays
and terminals may not be fastened correctly which may cause vehicle damage.

CAUTION
• Do not input any other objects except fuses or relays into fuse/relay terminals such as a
driver or wiring. It may cause contact failure and system malfunction.
• Do not plug in screwdrivers or aftermarket wiring into the terminal originally designed for
fuse and relays only. The electrical system and wiring of the vehicle interior may be damaged
or burned due to contact failure.
• If you directly connect the wire on the taillight or replace the bulb which is over the regulated
capacity to install trailers etc., the inner junction block can get burned.

Inner panel fuse replacement


Inner panel fuse replacement
Inner panel fuse replacement

1. Turn the ignition switch and all other switches off.
2. Open the fuse panel cover.
If the switch is located in the “OFF” position, a caution indicator will be displayed in the cluster.

Fuse Puller Location
Fuse Puller Location

3. Pull the suspected fuse straight out. Use the removal tool provided on the engine compartment fuse panel cover.
4. Check the removed fuse; replace it if it is blown.
Spare fuses are provided in the engine compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, consult an authorized Kia dealer.
If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the power outlet fuse.
If the head lamp, turn signal lamp, stop signal lamp, fog lamp, DRL, tail lamp, HMSL do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced.

✽ NOTICE
If the headlamp, fog lamp, turn signal lamp, or tail lamp malfunction even without any problem to the lamps, have the vehicle checked by an authorized Kia dealer for assistance.

CAUTION - Fuse Panel Covers
The contact points of the switches may wear out with excessive use. Please refrain from excessive use of the switches (except for long-term parking for over 1 month).

✽ NOTICE
• Set all switches to ON before driving.
• If the vehicle is going to be unused for over 1 month, set all switches to OFF to prevent the batteries from draining.

Memory fuse


Memory Fuse Location
Memory Fuse Location


Your vehicle is equipped with the memory fuse to prevent battery discharge if your vehicle is parked without being operated for prolonged periods. Use the following procedures before parking the vehicle for prolonged periods.
1. Turn off the engine.
2. Turn off the headlights and tail lights.
3. Open the driver’s side panel cover and pull up the memory fuse.
If the memory fuse is pulled up from the fuse panel, the warning chime, audio, clock and interior lamps, etc.,
will not operate. Some items must be reset after replacement. Refer to “Battery” in this  section.
Even though the memory fuse is pulled up, the battery can still be discharged by operation of the headlights or other electrical devices.

Engine compartment fuse replacement


1. Turn the ignition switch and all other switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the cover up. When the blade type fuse is disconnected, remove it by using the clip designed for changing fuses located in the engine compartment fuse box. Upon removal, securely insert reserve fuse of the same rating.
3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Kia dealer.

CAUTION
After checking the fuse panel in the engine compartment, securely install the fuse panel
cover through the audible clicking sound. If not, electrical failures may occur from water contact.

Multi fuse



Multi Fuse Location
Multi Fuse Location

If the multi fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.
5. Reverse these steps to reinstall the multi fuse.

 ✽ NOTICE
Do not disassemble nor assemble the multi fuse when it is secured with nuts and bolts. Incorrect or partial assembly torque may cause a fire. Have the vehicle checked by an
authorized Kia dealer.

CAUTION
Visually inspect the battery cap to ensure it is securely closed. If the battery cap is not securely closed, moisture may enter the system and damage the electrical components.


NOTICE - Random wiring prohibited when retrofitting equipment
Use of random wiring in the vehicle might cause danger due to failure and damage of the vehicle’s performance.
Using random wires especially when retrofitting AVN or theft alarm system, remote engine control, car phone or radio might damage the vehicle or cause fire.

✽ NOTICE - Remodeling Prohibited
Do not try remodeling the vehicle in any way. It is illegal, and may affect the vehicle’s   performance, durability, and safety. Warranty is also not provided for problems caused by
remodeling.
Be aware of safety problems caused by remodeling the vehicle with unauthorized electrical devices(lamp, black box, electrical equipment, diagnostic device, communication device, etc.). It might cause malfunction of the vehicle, wiring damage, battery discharge, connector damage, or fire. the vehicle or cause fire.

Window tinting precaution
Window tint(especially metallic film) might cause communication disorder or poor radio reception, and malfunction of the automatic lighting system due to excessive change of illumination inside the vehicle. The solution used might also flow into electric, electronic devices causing disorder and failure.

Fuse/relay panel description

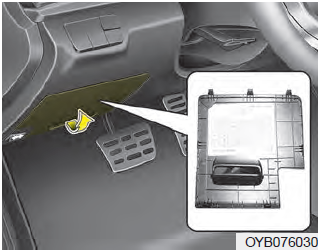

Driver’s side fuse panel

Driver’s side fuse panel Location
Driver’s side fuse panel Location

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

NOTICE
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

Driver’s side fuse panel Diagram
Driver’s side fuse panel Diagram


Instrument panel (Driver’s side fuse panel)


Fuse Name ... Fuse rating ... Circuit Protected
DOOR LOCK 20A Tail Gate Unlock Relay, Door Lock/Unlock Relay, Two Turn Unlock Relay
POWER OUTLET 20A Power Outlet
SAFETY P/WINDOW 25A Driver Safety Power Window Module
STOP LAMP 15A Stop Signal Electronic Module
T/SIGNAL LAMP 15A BCM (Body Control Module), SLM (Seat Belt & Lighting Module)
C/LIGHTER 20A Cigarette Lighter
HEATED MIRROR 10A Driver Power Outside Mirror, Passenger Power Outside Mirror, Air Conditioner Control Module, ECM (Engine Control Module)/PCM (Power train Control Module)
DRL2 10A BCM (Body Control Module)
P/WINDOW RH 25A Power Window Main Switch, Passenger Power Window Switch
S/HEATER 20A Front Seat Warmer Control Module
DRL1 10A -
START 7.5A With Immobilizer : ECM (Engine Control Module)/PCM (Power train Control Module), Engine Room , Junction Block(Start Relay), Smart Key Control Module
Without Immobilizer : Burglar Alarm Relay
TAIL LAMP RH 7.5A Head Lamp Right Handle side, Rear Combination Lamp (OUT) Right Handle side, License Lamp Right , Handle side, Rear Combination Lamp (IN) Right Handle side, Illumination (+)
MODULE2 10A AEB (Autonomous Emergency Braking) Unit, Crash Pad Switch
TCU 15A Engine Room Junction Block(Back-Up Lamp Switch), Auto Transmission Shift Lever, Transaxle Range Switch, Stop Lamp Switch
P/WINDOW LH 25A Power Window Main Switch
SPARE1 25A Spare
FOG LAMP REAR 10A -
HEATED STEERING 15A Clock Spring
TAIL LAMP LH 7.5A Head Lamp Left Handle side, License Lamp Left Handle side, Rear Combination Lamp (OUT) Left Handle side, Rear Combination Lamp (IN) Left Handle side, Glove Box Lamp
MODULE3 7.5A Front Seat Warmer Control Module, Audio, Electro Chromic Mirror, Air Conditioner Control Module, Audio/Video & Navigation Head Unit, Clock Spring, Auto Transmission Shift Lever Indicator
ABS 7.5A Engine Room Junction Block(Multipurpose Check Connector), ESC (Electronic Stability Control) Module
BRAKE SWITCH 10A Smart Key Control Module, Stop Lamp Switch
SPARE4 15A Spare
FOG LAMP FRONT 15A Front Fog Lamp Relay
A/CON1 7.5A Engine Room Junction Block(Blower Relay), Air Conditioner Control Module
MODULE5 10A Engine Room Junction Block(Head Lamp Relay, Head Lamp Hi Relay), Rain Sensor, Sunroof Motor, Front Seat Warmer Control Module, Driver Safety Power Window Module
MODULE7 10A TPMS (Tire Pressure Monitoring System) Unit
ECU 10A ECM (Engine Control Module)/PCM (Power train Control Module), Immobilizer Module, Smart Key Control Module
SUNROOF 15A Sunroof Motor
IMMO 10A Immobilizer Module
MODULE6 10A Key Solenoid, Center Facia Switch
SPARE2 10A Spare
MODULE4 7.5A SLM (Seat Belt & Lighting Module), BCM (Body Control Module), Smart Key Control Module
SPARE5 10A Spare
AIR BAG 10A ACU (Airbag Control Unit), Passenger Occupant Detection Sensor
MODULE1 7.5A BCM (Body Control Module), SLM (Seat Belt & Lighting Module), Key Interlock
SMART KEY 25A Smart Key Control Module
A/CON2 7.5A -
WIPER RR 15A Multifunction Switch, Rear Wiper Motor, Rear Wiper Relay
WIPER FRT 25A Multifunction Switch, Front Wiper Motor, Engine Room Junction Block(Wiper Low Relay)
ACC 10A Power Outlet Relay, BCM (Body Control Module), SLM (Seat Belt & Lighting Module), Audio, Key Interlock, Audio/Video & Navigation Head Unit, USB Charging Connector, Power Outside Mirror Switch, Smart Key Control Module
SPARE3 20A Spare
A/BAG IND 7.5A Instrument Cluster
CLUSTER 7.5A Instrument Cluster
MDPS 7.5A MDPS (Motor Driven Power Steering) Unit
AUDIO 20A Audio, Audio/Video & Navigation Head Unit
ROOM LP 10A Room Lamp Relay, Glove Box Lamp, Air Conditioner Control Module, SLM (Seat Belt & Lighting Module), BCM (Body Control Module), Auto Light & Photo Sensor, TPMS (Tire Pressure Monitoring System) Unit, Instrument Cluster, Data Link Connector, Room Lamp, Trunk Room Lamp

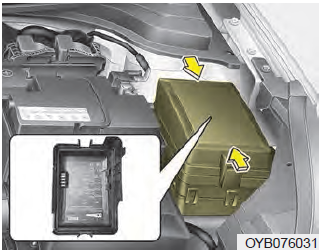

Engine compartment fuse panel


Engine compartment fuse panel Location
 Engine compartment fuse panel


Engine compartment fuse panel Diagram
Engine compartment fuse panel Diagram

Engine room compartment fuse panel


Fuse Name .. Fuse rating .. Circuit Protected
MDPS 80A MDPS (Motor Driven Power Steering) Unit
ALT 150A Fuse - ABS1, BAS2, BLOWER, REAR HEATED
REAR HEATED 40A Instrument Panel Junction Block (Rear Defogger Relay)
ABS1 40A ESC (Electronic Stability Control) Module, Multipurpose Check Connector
ABS2 40A ESC (Electronic Stability Control) Module
BLOWER 40A Blower Relay
WIPER 10A Front Wiper Motor, Multifunction Switch, Wiper Low Relay
ECU4 15A ECM (Engine Control Module)/PCM (Power train Control Module)
SENSOR 10A Oil Control Valve #1/#2, Cooling Fan1/2 Relay, Oxygen Sensor (Up), Oxygen Sensor (Down), Variable , Intake Solenoid Valve, Air Conditioner Relay, Purge Control Solenoid Valve,  Canister Close Valve
ECU2 15A ECM (Engine Control Module)/PCM (Power train Control Module)
ECU3 20A ECM (Engine Control Module)/PCM (Power train Control Module)
HEAD LAMP RH 10A Head Lamp Right Handle side
HEAD LAMP LH 10A Head Lamp Left Handle side
IGN COIL 20A Ignition Coil #1~#4, Condenser
ECU5 15A ECM (Engine Control Module)/PCM (Power train Control Module), Fuel Pump Relay
B/UP LAMP 10A Back-Up Lamp Switch
B+1 40A Instrument Panel Junction Block (Fuse - DRL2, FOGLAMP FRONT, STOP LAMP, MODULE6, Power Connector (AUDIO, ROOM LAMP))
B+2 50A Instrument Panel Junction Block (Fuse - IMMO, SMART KEY, BRAKE SWITCH, SAFETY P/WINDOW, S/HEATER, SUNROOF, Power Window Relay)
IG2 40A Ignition Switch, IG2 Relay, Start Relay
COOLING FAN 40A Cooling Fan1/2 Relay (Radiator Fan)
ECU1 30A Fuse - ECU3, ECU4, Main Relay
HEAD LAMP 20A Head Lamp Relay
H/LAMP HI 20A With CANADA DRL : SLM(Seat Belt & Lighting Module) or BCM(Body Control Module) Without CANADA DRL : Head Lamp HI Relay
FUEL PUMP 20A Fuel Pump Relay
HORN 15A Horn Relay/ Burglar Alarm Horn Relay
A/CON 10A Air Conditioner Relay
AMS 10A Battery Sensor
B+3 40A Instrument Panel Junction Block (Fuse - T/SIGNAL LAMP, DOOR LOCK, Tail Lamp Relay)
IG1 40A Ignition Switch, IG1 Relay, ACC Relay
POWER OUTLET 40A Instrument Panel Junction Block (Power Outlet Relay)

Relay


Relay .. Name Type
Main Relay MINI
Start Relay MICRO
Fuel Pump Relay MICRO
Wiper HI Relay MICRO
H/Lamp HI Relay MICRO
Cooling Fan2 Relay MICRO
B/Alarm Horn Relay MICRO
Blower Relay MICRO
Cooling Fan1 Relay MICRO
Wiper LO Relay MICRO
Head Lamp Relay MICRO
Horn Relay MICRO
A/Con Relay MICRO
