2009 - 2010 Ford F-150 Fuse Box Diagram

2010 Ford F-150

CHANGING A FUSE

Blown Fuse



 WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing  any electrical components.

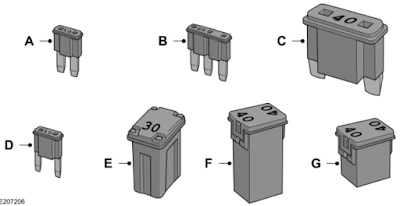

Fuse Types

Fuse Types

Callout	Fuse Type
A	Micro 2
B	Micro 3
C	Maxi
D	Mini
E	M Case
F	J Case
G	J Case Low Profile

Standard Fuse Amperage Rating and Color



COLOR
Fuse link cartridge	Cartridge maxi fuses	Maxi fuses	Standard fuses	Mini fuses	Fuse rating
- -	- -	- -	Grey	Grey	2A
- -	- -	- -	Violet	Violet	3A
- -	- -	- -	Pink	Pink	4A
- -	- -	- -	Tan	Tan	5A
- -	- -	- -	Brown	Brown	7.5A
- -	- -	- -	Red	Red	10A
- -	- -	- -	Blue	Blue	15A
Blue	Blue	Yellow	Yellow	Yellow	20A
Natural	Natural	- -	Natural	Natural	25A
Pink	Pink	Green	Green	Green	30A
Green	Green	Orange	- -	- -	40A
Red	Red	Red	- -	- -	50A
Yellow	Yellow	Blue	- -	- -	60A
Brown	- -	Tan	- -	- -	70A
Black	Black	Natural	- -	- -	80A



Fuses – Frequently Asked Questions


When do I need to check a fuse?

If electrical components in the vehicle are not working.

When do I need to replace a fuse?

If a fuse has blown.

How do I identify a blown fuse?

You can identify a blown fuse by a broken wire within the fuse.



Passenger compartment fuse panel

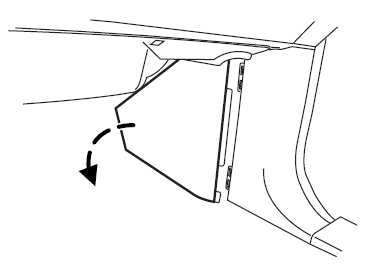

Passenger compartment fuse panel Location



The fuse panel is located under the right-hand side of the instrument panel.
To remove the trim panel for access to the fuse box, pull the panel toward you and swing it out away from the side and remove it. To reinstall it, line up the tabs with the grooves on the  Panel, then push it shut.

To remove the fuse box cover, press in the tabs on both sides of the cover, then pull the cover off.
To reinstall the fuse box cover, place the top part of the cover on the fuse panel, then push the bottom part of the cover until you hear it click shut. Gently pull on the cover to make sure it is seated properly.

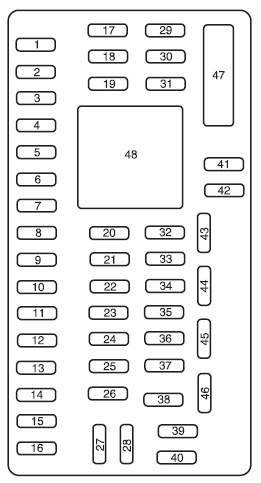

Fuse Panel Diagram

Fuse / Relay Table



The fuses are coded as follows.

Fuse/Relay Location ...  Fuse Amp Rating ... Protected Circuits
1 30A Moonroof
2 15A Not used (spare)
3 15A Not used (spare)
4 30A Not used (spare)
5 10A Keypad illumination, Brake Shift Interlock (BSI), SJB microprocessor power
6 20A Turn signals, Stop lamps
7 10A Low beam headlamps (left)
8 10A Low beam headlamps (right)
9 15A Interior courtesy lights, Cargo lamps
10 15A Backlighting, Puddle lamps
11 10A GPS module
12 7.5A Power mirror switch, Memory seat module microprocessor power, Steering column switch
13 5A SYNC
14 10A Ambient lighting module
15 10A Climate control
16 15A Ignition switch feed
17 20A All lock motor feeds
18 20A Driver memory seat switch
19 25A Not used (spare)
20 15A Adjustable pedals, Datalink
21 15A Fog lamps, Fog lamp indicator
22 15A Park lamps, Side marker lamps
23 15A High beam headlamps
24 20A Horn
25 10A Interior demand lamps, Mid box power feed
26 10A Instrument panel cluster, Key out inhibit solenoid, Radio info display (CID), Radio buttons, Key-in chime
27 20A Not used
28 5A Radio muting
29 5A Instrument panel cluster
30 5A Passenger airbag disable indicator
31 10A Restraints control module
32 10A Non-integrated compass module, Heated-only seat module
33 10A Trailer brake controller
34 5A Electronic locking differential indicator
35 10A Reverse sensing system
36 5A Passive anti-theft system transceiver
37 10A Upfitter relay coils
38 20A Subwoofer
39 20A Radio, Navigation display
40 20A Rear heated seats module
41 15A Auto dimming rear view mirror, Door lock switch illumination, Radio accessory delay
42 10A Not used (spare)
43 10A Heated mirror/backlight relay, Rain sensor, Reverse camera
44 10A Not used (spare)
45 5A Front wiper logic, Blower motor relay
46 7.5A Occupant classification sensor (OCS)
47 30A Circuit Breaker , Power windows, Moon roof, Power sliding backlight
48 15A Delayed accessory relay (Feeds fuse 41 and circuit breaker 47)

Power distribution box



Fuse Box Location



7. Power distribution Fuse Box Location

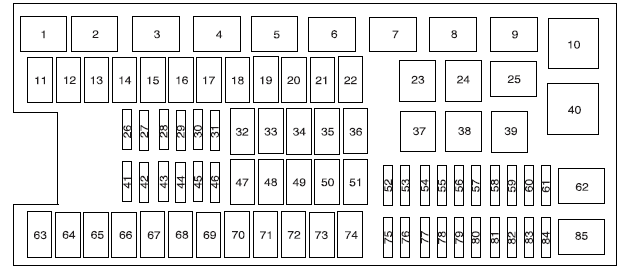

Fuse Box Diagram

The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.

WARNING: Always disconnect the battery before servicing high current fuses.
WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.



Fuse / Relay Table

The high-current fuses are coded as follows:

Fuse/Relay Location .. Fuse Amp Rating ... Protected Circuits
1 — Powertrain control module (PCM) power relay
2 — Starter relay
3 — Blower motor relay
4 — Heated backlite relay
5 — Not used (2010 Model -  Electric fan relay (high speed))
6 — Trailer tow park lamp relay
7 — Not used (2010 Model -  Upfitter 1 relay)
8 — Fuel pump
9 — Trailer tow battery charger
10 — Not used (2010 Model -  Upfitter 2 relay)

11 30A** Power running board motors
12 40A** Not used (2010 Model -  Electric fan)
13 30A** Starter relay
14 30A** Passenger power seats
15 40A** Not used (2010 Model -  Electric fan)
16 — Not used
17 30A** Trailer brake
18 30A** Not used (2010 Model -  Upfitter 1)
19 30A** Not used (2010 Model -  Upfitter 2)
20 20A** 4x4 module (ESOF)
21 30A** Trailer tow battery charge
22 20A** Cigar lighter (Cigarette Lighter)
23 — A/C clutch relay
24 — Not used (2010 Model -  Upfitter 4 relay)
25 — Not used (2010 Model -  Heated mirror relay)
26 10A* PCM – keep alive power, Canister vent solenoid, Transmission, PCM relay
27 20A* Fuel pump relay
28 10A* Upfitter 4
29 10A* 4x4
30 10A* A/C clutch
31 20A* Trailer tow park lamp relay
32 40A** Heated backlite
33 — Not used
34 40A** PCM relay
35 — Not used
36 30A** Roll stability control module (RSC)
37 — Trailer tow left hand stop/turn relay
38 — Trailer tow right hand stop/turn relay

39 — Back up lamps relay
40 — Not used (2010 Model -  Electric fan relay)
41 15A* Not used (2010 Model -  Heated mirror)
42 — Not used
43 20A* Backup lamp relay
44 15A* Upfitter 3
45 20A* Trailer tow stop turn relay feed
46 15A* Brake on/off (BOO) switch
47 60A** RSC module
48 — Not used
49 30A** Wiper motor, washer pump
50 — Not used
51 40A** Blower motor relay
52 — Not used
53 5A* PCM, 6R80 transmission
54 5A* 4x4 module, Back up lamp, RSC, Trailer tow battery charge relay

55 5A* Electronic  compass mirror (6R transmission only)
56 — Not used
57 — Not used
58 15A* Trailer tow backup lamps
59 — Not used
60 — One-touch Start diode
61 — Fuel pump diode
62 — Upfitter 3 relay
63 25A** Electric fan
64 30A** Amplifier
65 20A** Auxiliary power point (instrument panel)
66 20A** Auxiliary power point (inside center console)

67 — Not used
68 20A** 4x4 module
69 30A** Passenger heated/cooled seats
70 — Not used
71 — Not used
72 20A** Auxiliary power point (Rear)
73 — Not used
74 30A** Driver power seat
75 15A* PCM – voltage power 1
76 20A* Voltage power 2, Voltage - battery voltage, Mass air flow/Intake air temp, CMS 12 and 22 with 6R80 transmission, Brake on/off switch (BOO)
77 10A* Voltage power 3, Electric fan clutch, A/C clutch relay coil, Floor shifter (4–speed transmission)
78 15A* Ignition coils, Voltage power 4

79 10A* CMS 4–speed transmission, 12 and 22 with 4–speed transmission
80 5A* Steering wheel illumination
81 — Not used
82 10A* Trailer brake control module (TBCM), After market center high mounted stop lamp (CHMSL)
83 — Not used
84 — Not used
85 — Electric fan relay (low speed)

*Mini fuse

**Cartridge fuse
