2015 - 2018 Volvo S60 Fuse panel Diagram

2015 Volvo S60



Replacing fuses



 There are relay/ fuse boxes located in the engine compartment, the passenger compartment, and the trunk.
If an electrical component fails to function, this may be due to a blown fuse. The easiest way to see if a fuse is blown is to remove it.

To do so:
1. Pull the fuse straight out. If a fuse is difficult to remove, a special fuse removal tool is  located on the inside of the engine compartment fuse box cover.
2. From the side, examine the curved metal wire in the fuse to see if it is intact. If the wire is broken, insert a new fuse of the same color and amperage (written on the fuse). If fuses burn out repeatedly, have the electrical system inspected by a trained and qualified Volvo service technician.

WARNING

Never use metal objects or fuses with higher amperage than those stated on the following pages. Doing so could seriously damage or overload the vehicle's electrical system.

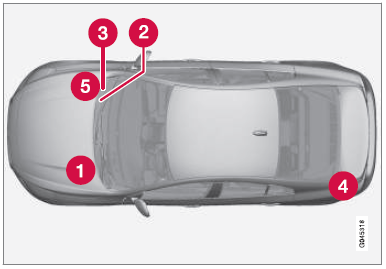

Location of the fuse boxes

 Location of the fuse boxes

1 Engine compartment
2 Under the glove compartment
3 Under the glove compartment
4 Trunk
5 Engine compartment cold zone (Start/ Stop only)

Engine compartment Fuse Box



A - Engine compartment, upper

B - Engine compartment, front

C - Engine compartment, lower

Positions

These fuses are all located in the engine compartment box. Fuses in C are located under A

.NOTE

• Fuses 16 – 33 and 35 – 41 may be changed at any time when necessary.

• Fuses 1 – 15, 34 and 42 – 44 are relays/circuit breakers and should only be removed or replaced by a trained and qualified Volvo service technician.

• There is a special fuse removal tool on (Fuse Extractor, Puller) the underside of the cover.

Engine compartment Fuse box - Location and Schematic view

Fuse Coding table

Pos .. Function ... Amperage

1 Circuit breaker: central electrical module under the glove compartmentA 50

2 Circuit breaker  central electrical module under the glove compartment 50

3 Circuit breaker: central electrical module in the trunkA 60

4 Circuit breaker: central electrical module under the glove compartmentA

5 Circuit breaker: central electrical module under the glove compartmentA 60

6 –

7 –

8 Headed windshield*, driver's side 40

9 Windshield wipers 30

10 –

11 Climate system blower A 40

12 Headed windshield*, passenger's side 40

13 ABS pump 40

14 ABS valves 20

15 Headlight washers 20

16 Active Bending Lightsheadlight leveling* 10

17 Central electrical module (under the glove compartment) 20

18 ABS 5

19 Adjustable steering force* 5

20 Engine Control Module (ECM), transmission, SRS 10

21 Heated washer nozzles* 10

22 --

23 Lighting panel 5

24 -

25 -

26 -

27 Relay Coils 5

28 Auxiliary lights* 20

29 Horn 15

30 Engine Control Module (ECM) 10

31 Control module - automatic transmission 15

32 A/C compressor (not 4-cyl. engines) 15

33 Relay-coils A/C, relay coils in engine compartment cold zone for Start/Stop 5

34 Starter motor relay 30

35 Engine control module (4-cyl. engines) , Ignition coils (5-/6-cyl. engines), condenser (6-cyl. engines) 20

36 Engine Control Module (4-cyl. engines) 20
Engine Control Module (5-cyl. & 6-cyl. engines) 10

37 4-cyl. engines: mass air meter, thermostat, EVAP valve 10
5-/6-cyl. engines: Injection system, mass air meter (6-cyl. engines only), engine control module 15

38 A/C (Air Condition) compressor (5-/6- cyl. engines), engine valves, engine control module (6-cyl. engines), solenoids (6- cyl. non-turbo only), mass air meter (6-cyl. only) 10

Engine valves/oil pump/center heated oxygen sensor (4-cyl. engines) 15

39 Front/rear heated oxygen sensors (4-cyl. engines), EVAP valve (5-/6-cyl. engines), heated oxygen sensors (5-/6-cyl. engines) 15

40 Oil pump (automatic transmission)/crankcase ventilation heater (5-cyl. engines) 10

Ignition coils 15

41 Fuel leakage detection (5-/6-cyl. engines), control module for radiator shutter (5-cyl.
engines) 5
Fuel leakage detection, A/C relay (4-cyl. engines) 15

42 Coolant pump (4-cyl. engines) 50

43 Cooling fan 60 (5- cyl. engine), 80 (6-cyl engine)

44 Power steering 100



A This position is not used on vehicles with the optional Start/ Stop function, refer to the table "Engine compartment cold zone" in Fuses – engine compartment cold zone (Start/Stop only)



* Option/accessory

Cargo area Fuse Box



Cargo Area Fuse Box Location and Diagram

Pos Rear fuse box Amperage



Pos ... Function ...  Amperage

1 Electric parking brake (left side) 30

2 Electric parking brake (right side) 30

3 Heated rear window 30

4 Trailer socket 2* 15

5 -

6  12-volt socket in trunk 15

7 -

8 -

9 -

10 -

11 Trailer socket 1* 40

12 -

NOTE

department for the most up-to-date specifications.

Under the glove compartment

Under the glove compartment Fold aside the upholstery covering the fuse boxes.

1. Press the cover's lock and fold it up.
2. The fuses are accessible.



 Under the glove compartment Fuse Panel Location and Diagram A



 Under the glove compartment Fuse Panel Location and Diagram B

Positions-fuse Panel A

Pos .. Function .. Amperage

1 Circuit breaker for the infotainment system and for fuses 16-20 40

2 Windshield washers 25

3 -

4 -

5 -

6 Keyless drive* (door handles) 5

7 -

8 Controls in driver's door 20

9 Controls in front passenger's door 20

10 Controls in right rear passenger's door 20

11 Controls in left rear passenger's door 20

12 Keyless drive* 7.5

13 Power driver's seat* 20

14 Power front passenger's seat* 20

15 Folding rear seat head restraints 15

16 Infotainment control module 5

17 Infotainment system, SiriusXM satellite radio* 10

18 Infotainment system 15

19 Bluetooth hands-free system 5

20 -

21 Power moonroof* Courtesy lighting, climate system sensor 5

22 12-volt sockets 15

23 Heated rear seat* (passenger's side) 15

24 Heated rear seat* (driver's side) 15

25 -

26 Heated front passenger's seat* 15

27 Heated driver's seat* 15

28 Park assist*, trailer hitch control module*, park assist camera* Blind Spot Information System (BLIS)* 5

29 All Wheel Drive* control module 5

30 Active chassis system* 10



* Option/accessory

Positions: fuse box B


Pos ...  Function  ... Amperage
1 -

2-
3 Front courtesy lighting, driver's door power window controls, power seat(s)*, Home- LInk® Wireless Control System* 7.5
4 Instrument panel 5
5 Adaptive cruise control/collision warning* 10
6 Courtesy lighting, rain sensor* 7.5
7 Steering wheel module 7.5
8 Cental locking: fuel filler door 10
9 Electrically heated steering wheel* 15
10 Electrically heated windshield* 15
11 Trunk open 10
12 Electrical folding rear seat outboard head restraints* 10
13 Fuel pump 20
14 Climate system control panel 5
15 -
16 Alarm, On-board diagnostic system 5
17 -
18 Airbag system, occupant weight sensor 10
19 Collision warning system* 5
20 Accelerator pedal, auto-dim mirror function, heated rear seats* 7.5
21 -
22 Brake lights 5
23 Power moonroof* 20
24 Immobilizer 5

Engine compartment cold zone (Start/Stop only) *1

*1 Option on 4-cyl. engines



Engine compartment cold zone (Start/Stop only) - Fuse Box Location

Positions

• Fuses A1, A2 and 1–11 are relays/circuit breakers and should only be removed or replaced by a trained and qualified Volvo service technician.
• Fuse 12 may be changed at any time when necessary.

Pos Function A
A1 Circuit breaker: central electrical module in the engine compartment 175
A2 Circuit breaker: fuseboxes under the glove compartment, central electrical module in the trunk 175
1 -
2 Circuit breaker: fusebox B under the glove compartment  50
3 Circuit breaker: fusebox A under the glove compartment  60
4 Circuit breaker: fusebox A under the glove compartment 60
5 Circuit breaker: central electrical module in the trunk 60
6 Climate system blower 40
7 – –
8 – –
9 Starter motor relay 30
10 Internal diode 50
11 Auxiliary battery 70
12 Central electrical module: auxiliary battery reference voltage, auxiliary battery charging point
