2012 - 2015 Ford Explorer Fuse Box Diagram

2015 Ford Explorer

Changing a Fuse

WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.
If electrical components in your vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse.
Check the appropriate fuses before replacing any electrical components.

Blown Fuse

Standard Fuse Amperage Rating and Color



COLOR
Fuse link cartridge	Cartridge maxi fuses	Maxi fuses	Standard fuses	Mini fuses	Fuse rating
- -	- -	- -	Grey	Grey	2A
- -	- -	- -	Violet	Violet	3A
- -	- -	- -	Pink	Pink	4A
- -	- -	- -	Tan	Tan	5A
- -	- -	- -	Brown	Brown	7.5A
- -	- -	- -	Red	Red	10A
- -	- -	- -	Blue	Blue	15A
Blue	Blue	Yellow	Yellow	Yellow	20A
Natural	Natural	- -	Natural	Natural	25A
Pink	Pink	Green	Green	Green	30A
Green	Green	Orange	- -	- -	40A
Red	Red	Red	- -	- -	50A
Yellow	Yellow	Blue	- -	- -	60A
Brown	- -	Tan	- -	- -	70A
Black	Black	Natural	- -	- -	80A



Power Distribution Box

D - Engine Compartment Fuse Block Location

WARNING: Always disconnect the battery before servicing high current fuses.
WARNING: To reduce risk of electrical shock, always replace the cover to the power   distribution box before reconnecting the battery or refilling fluid reservoirs.

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.

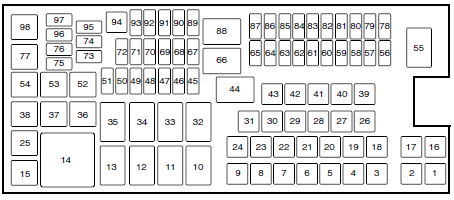

Power Distribution Fuse Box Diagram

The high-current fuses are coded as follows:


Fuse or relay number ... Fuse amp rating ... Protected components
1 — Not used
2 — Not used
3 30A** Trailer brake control module
4 30A** Wipers, Front washer
5 50A** Anti-lock brake system (ABS) pump
6 — Not used
7 30A** Power liftgate
8 20A** Moonroof
9 20A** Power point #2 (console rear)
10 — 3rd row rear seat release relay
11 — Rear window defroster relay
12 — Trailer tow battery charge relay
13 — Starter motor relay
14 — Engine cooling fan #2 high speed relay
15 — Fuel pump relay
16 — Not used
17 40A** 110-volt AC power point
18 40A** Front blower motor
19 30A** Starter motor
20 20A** Power point #1, cigar lighter
21 20A** Power point #3 (cargo area)
22 30A** Third row seat module
23 30A** Driver power seat, Memory module
24 30A** Trailer tow battery charge
25 — Not used
26 40A** Rear window defroster, Heated mirrors
27 20A** Power point (console)
28 30A** Climate controlled seats
29 40A** Engine cooling fan #1 high speed power, Engine cooling fan #1 and #2 low speed primary fuse
30 40A** Engine cooling fan #2 high speed fuse
31 25A** Engine cooling fan #1 and #2 low speed secondary fuse
32 — Auxiliary blower motor relay
33 — Engine cooling fan #1 and #2 low speed relay #2
34 — Blower motor relay
35 — Engine cooling fan #1 high speed relay, Engine cooling fan #1 and #2 low speed relay #1
36 — Not used
37 — Trailer tow right stop/turn lamps relay
38 — Trailer tow backup relay
39 40A** Auxiliary blower motor
40 — Not used
41 30A** Second row heated seats
42 30A** Passenger seat
43 40A** Anti-lock brake system valves
44 — Rear washer relay
45 5A* Rain sensor
46 — Not used
47 — Not used
48 — Not used
49 — Not used
50 15A* Heated mirrors
51 — Not used
52 — Not used
53 — Trailer tow left stop/turn lamps relay
54 — Not used
55 — Wiper relay
56 15A* Transmission control module
57 20A* Left high-intensity discharge (HID) headlamps
58 10A* Alternator sensor
59 10A* Brake on/off switch
60 10A* Trailer tow back-up lamps
61 20A* Second row seat release
62 10A* Air conditioning clutch
63 15A* Trailer tow stop/turn lamps
64 15A* Rear wipers
65 30A* Fuel pump
66 — Powertrain control module relay
67 20A* Vehicle power (VPWR)  #2 (emission related powertrain components)
68 20A* Vehicle power #4 (ignition coils)
69 20A* Vehicle power #1 (powertrain control module)
70 10A* Vehicle power #3 (coil), All-wheel drive module, Air conditioning variable compressor  control
71 — Not used
72 — Not used
73 — Not used
74 — Not used
75 — Not used
76 — Not used
77 — Trailer tow park lamps relay
78 20A* Right high-intensity discharge headlamps
79 5A* Adaptive cruise control
80 — Not used
81 — Not used
82 15A* Rear washer
83 — Not used
84 20A* Trailer tow park lamps
85 — Not used
86 7.5A* Powertrain control module keep-alive power, Powertrain control module relay,  Canister vent solenoid
87 5A* Run/start relay coil
88 — Run/start relay
89 5A* Front blower relay coil, Electronic power assist steering module
90 10A* Powertrain control module (PCM), Transmission control module (TCM), Engine control module (ECM) (2.0L engine)
91 10A* Adaptive cruise control
92 10A* Anti-lock brake system (ABS) module, Plant EVAC and fill
93 5A* Rear blower motor, Rear defroster, Trailer tow battery charge relays
94 30A** Passenger compartment fuse panel run/start
95 — Not used
96 — Not used
97 — Not used
98 — Air conditioning (A/C) clutch relay

*Mini Fuses, **Cartridge Fuses

Passenger Compartment Fuse Panel



The fuse panel is located below and to the left of the steering wheel by the brake pedal. Remove the panel cover to access the fuses.
To remove a fuse use the fuse puller tool provided on the fuse panel cover.



Passenger Compartment Fuse Panel Diagram

The fuses are coded as follows:
Fuse or relay number ...  Fuse amp rating ... Protected components
1 30A One-touch up and down driver front window
2 15A Not used (spare)
3 30A One-touch up and down passenger front window
4 10A Interior demand lamps (overhead console, second row, cargo), Glove box lamp,  Second and third row seat release, Visor lamps
5 20A Amplifier
6 5A Not used (spare)
7 7.5A Memory seat module logic feed
8 10A Not used (spare)
9 10A 4-inch radio display, Power liftgate logic, Electronic finish panel, SYNC
10 10A Run/accessory relay (wipers, rear washer), Rain sensor

11 10A Instrument cluster, Heads-up display
12 15A Interior courtesy lamps (overhead console, Second row, cargo), Puddle lamps,  Console bin LED, Backlighting
13 15A Right turn lamps, Right trailer tow turn/stop lamps
14 15A Left turn lamps, Left trailer tow turn/stop lamps
15 15A Reverse lamps, Stop lamps, High-mounted stop lamp
16 10A Low beam headlamps (right)
17 10A Low beam headlamps (left)
18 10A Keypad illumination, Brake shift interlock, Start button run indicator, Passive anti-theft
system, Powertrain control module wake-up, Rear seat power enable
19 20A Memory seat power
20 20A Locks
21 10A Intelligent access, Keypad
22 20A Horn relay
23 15A Steering wheel control module, Intelligent access, Headlamp switch
24 15A Datalink connector, Steering wheel control module
25 15A Liftgate release
26 5A Radio frequency module
27 20A Intelligent access module
28 15A Ignition switch, Push-button start switch
29 20A Radio, Global positioning system module
30 15A Front park lamps
31 5A Trailer tow brake controller
32 15A 110-volt AC power point, Power folding mirror, Power mirrors, One-touch up and down front windows, Door lock illumination, Memory switch illumination
33 10A Occupant classification sensor
34 10A Blind spot monitor, Rearview camera, Reverse sensing system, Lane departure warning module, Second row heated seats module
35 5A Heads-up display, Climate control humidity sensor, Terrain management system, Hill descent switch, Headlamp switch ignition sensor
36 10A Heated steering wheel
37 10A Restraints control module
38 10A Auto-dimming rearview mirror, Moonroof
39 15A High beam headlamp shutters
40 10A Rear park lamps, License plate lamps, Trailer tow park lamps
41 7.5A Overdrive cancel, Tow/haul
42 5A Not used (spare)
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Not used (spare)
46 10A Climate control module
47 15A Fog lamps, left and right turn signal mirror feed
48 30A Circuit Breaker  ... Rear power windows, Passenger power window, One-touch down
(driver side only), Driver window switch
49 Delayed accessory relay  - Body control module
