2015 - 2016 Chevrolet Silverado Fuse Box Diagram

2015 Chevrolet Silverado

Changing a Fuse

The wiring circuits in the vehicle are protected from short circuits by fuses. This greatly reduces the chance of fires caused by electrical problems.

Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse. Be sure you replace a bad fuse with a new one of the identical size and rating.
Fuses of the same amperage can be temporarily borrowed from another fuse location, if a fuse goes out. Replace the fuse as soon as you can.

Engine Compartment Fuse Block



13 - Engine Compartment Fuse Block Location

If the vehicle has a diesel engine. The engine compartment fuse block is in the engine compartment, on the driver side of the vehicle.
.

Caution

Spilling liquid on any electrical component on the vehicle may damage it. Always keep the covers on any electrical component. A Fuse puller is available in the left instrument panel fuse block. The vehicle may not be equipped with all of the fuses, relays, and features shown.



Engine Compartment Fuse Block Diagram

Micro J-Case Fuses ..... Usage
1 Trailer Brake
2 Trailer Battery



J-Case Fuses ........... Usage
3 Antilock Brake System (ABS) Pump
4 Instrument Panel BEC 1
5 Spare (2016 -  Motorized Seat Belt (MSB) passenger)
6 4WD Trec
7 Spare (2016 - Electronic park brake)
8 Instrument Panel BEC 2
9 Spare (2016 - Motorized Seat Belt (MSB) driver)
10 Rear Window Defogger
11 Starter
12 Cooling Fan 1
13 Cooling Fan 2



Mini Fuses (2 Pin) ............. Usage
14 Trailer Stop/Turn Lamps, Left
15 Trailer Parking Lamps
16 Trailer Back-up Lamp
17 Trailer Stop/Turn Lamps, Right

18 Fuel Pump
19 Integrated Chassis Control Module

20 Electronic Suspension Control Module
21 Fuel Pump Power Module
22 Upfitter Switch 1
23 Upfitter 2
24 Front Wiper
25 Antilock Brake System (ABS) Valves
26 Upfitter SW 2
27 Upfitter SW 3
28 Parking Lamps, Right
29 Parking Lamps, Left
30 Upfitter 3
31 Upfitter SW 4
32 Upfitter 4

33 Back-up Lamps (2016 - Reverse lamps)
34 Engine Control Module Ignition
35 Air Conditioning (A/C) Compressor Clutch
36 Heated Mirrors
37 Upfitter 1
38 Center High-Mounted Stoplamp
39 Miscellaneous Ignition
40 Transmission Ignition
41 Fuel Pump 2
42 Cooling Fan Clutch
43 Engine
44 Fuel Injectors A, Odd
45 Fuel Injectors B, Even
46 Oxygen Sensor B
47 Throttle Control
48 Horn
49 Fog Lamp
50 Oxygen Sensor A
51 Engine Control Module
52 Interior Heater
53 Spare - (2016 - Accessory power module/TPM pump)
54 Aeroshutter
55 Front Washer

Micro Fuses (3 Pin) ................ Usage
56 Air Conditioning Compressor/ Battery Regulated Voltage Control
57 Air Conditioning Compressor Module/ Battery Pack
58 Transmission
Control Module/ Engine Control Module
59 Headlamps

Micro Relays ............. Usage
60 Fuel Pump
61 Upfitter 2
62 Upfitter 3
63 Upfitter 4

64 Trailer Parking Lamps
65 Run/Crank
66 Upfitter 1
67 Fuel Pump 2
68 Air Conditioning Control
69 Starter

Mini Relays ........... Usage
70 Rear Window Defogger
71 Engine Control Module

Solid State Relay ........ Usage
72 Cooling Fan Clutch

2016 - 73 CKT 92

Instrument Panel Fuse Block (Left)


The left instrument panel fuse block access door is on the driver side edge of the instrument panel. Pull off the cover to access the fuse block.

Instrument Panel Fuse Block Location (Left)

Instrument Panel Fuse Block (Left)



The vehicle may not be equipped with all of the fuses, relays, and features shown.

Number  ..... Usage
1 Accessory Power Outlet 2
2 Special Equipment Option (SEO) Retained Accessory Power
3 Universal Garage Door Opener/Inside Rearview Mirror
6 Body Control Module 3
7 Body Control Module 5
8 Driver Window Switch/Mirror Switch
9 Spare
10 Accessory Power Outlet Retained Accessory Power
11 Accessory Power Outlet Battery

12 Accessory Power Outlet 1/Cigarette Lighter
13 Discrete Logic Ignition Switch
14 Switch Backlighting
17 Body Control Module 1
19 Spare
20 Spare
22 Heater, Ventilation, and Air Conditioning/ Auxiliary Heater, Ventilation and Air  Conditioning Ignition
23 Instrument Cluster Ignition/Sensing Diagnostic Module Ignition
24 Spare
25 Data Link Connector/ Driver Seat Module Number Usage
26 Passive Entry Passive Start/Heater, Ventilation, and Air Conditioning
27 Spare
28 Spare
29 Park Enable/ Electrically Adjustable Pedals
30 SEO
31 Accessory/Run Crank
32 Heated Steering Wheel
33 Spare
34 Instrument Cluster
36 Spare
37 Spare
40 Left Doors
41 Driver Power Seat

43 Left Front Heated/ Cooled Seat

44 Right Front Heated / Cooled Seats

45 Spare
49 Retained Accessory Power/Accessory
50 Run/Crank

Instrument Panel Fuse Block (Right)


The right instrument panel fuse block access door is on the passenger side edge of the  instrument panel. Pull off the cover to access the fuse block.

Instrument Panel Fuse Block Location (Right)

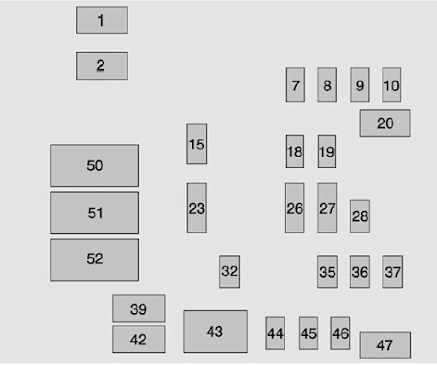

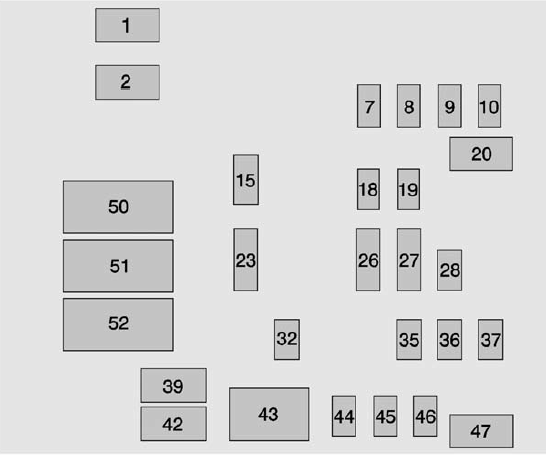

Instrument Panel Fuse Block Diagram (Right)

The vehicle may not be equipped with all of the fuses, relays, and features shown.

Number ...... Usage
1 Accessory Power Outlet 3
2 Accessory Power Outlet 4
7 Body Control Module 4
8 Body Control Module 8
9 Rear Seat Entertainment
10 Cargo Lamp
15 Steering Wheel Controls
18 Radio
19 Spare
20 Sunroof
23 Airbag/Info
26 Export/Power Take Off/SEO Battery 1
27 Obstacle Detection/ USB Ports
28 Body Control Module 2
32 SEO Battery 2
35 AC Inverter
36 Amplifier
37 Spare
39 Rear Sliding Window
42 Right Door Window Motor

43 Front Blower
44 SEO
45 Body Control Module 6
46 Body Control Module 7
47 Passenger Seat
50 Retained Accessory Power/Accessory
51 Rear Sliding Window Open
52 Rear Sliding Window Close
