2014 Peugeot 208 |

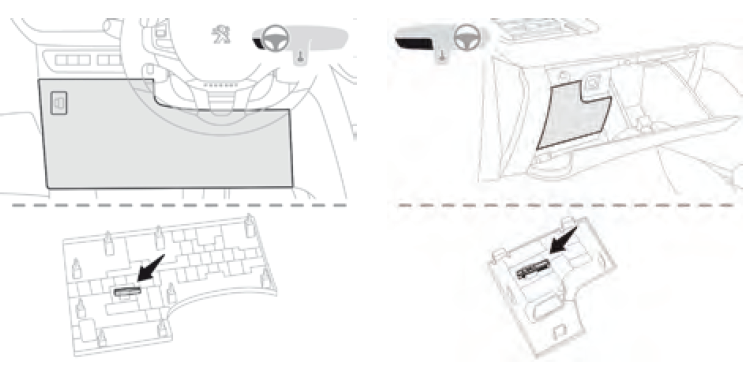

Access to tools
The extraction tweezer is fitted to the back of the dashboard or glove box fusebox cover.
For the dashboard:
Unclip the cover by pulling at the top left, then right.
Disengage the cover completely and turn it over.
Remove the carrier on which the tweezer is fitted.
For the glove box:
Open the glove box lid.
Unclip the fusebox cover by pulling at top right.
Disengage the cover fully and turn it over.
Remove the back of the carrier on which the tweezer is fitted.
Access to the tools |
Before changing a fuse:
The vehicle must be immobilised with the ignition off,
The vehicle must be immobilised with the ignition off,
All electrical consumers must be switched off,
Identify the failed fuse using the tables and layout drawings in the following pages.
To replace a fuse, you must:
Use the special tweezer to extract the fuse from its housing and check the condition of
its filament.
its filament.
always replace the failed fuse with a fuse of the same rating (same colour); using a different rating could cause faults (risk of fire). If the fuse fails again soon after replacement, have the vehicle's electrical system checked by a PEUGEOT dealer or a qualified workshop.
Tweezer |
Left Hand Side Fuses
Dashboard fuse Panel Location |
Left Hand Side Fuse Panel |
Left Hand Side Fuse Table
F01 (GPL) 10 A Ignition + (positive). - (2017 Model)
F02 5 A Door mirrors, headlamps, diagnostic socket.
F09 5 A Alarm.
F10 5 A Independent telematic unit, trailer interface.
F11 5 A Electrochrome rear view mirror, additional heating.
F13 5 A Hi-Fi amplifier, parking sensors
F16 15 A Front 12 V socket. (Cigarette Lighter)
F17 15 A Audio system, audio system (accessory).
F18 20 A Touch screen.
F02 5 A Door mirrors, headlamps, diagnostic socket.
F09 5 A Alarm.
F10 5 A Independent telematic unit, trailer interface.
F11 5 A Electrochrome rear view mirror, additional heating.
F13 5 A Hi-Fi amplifier, parking sensors
F16 15 A Front 12 V socket. (Cigarette Lighter)
F17 15 A Audio system, audio system (accessory).
F18 20 A Touch screen.
Left Hand Side Fuse Panel / 2 |
Left Hand Side Fuse Table / 2
F23 5A Vanity mirrors, map reading lamps.
F26 15 A Horn.
F27 15 A Screenwash pump.
F28 5 A Anti-theft.
F29 15 A Air conditioning (A/C) compressor.
F30 15 A Rear wiper
Right Hand Side Fuses
Fuses behind the glove box Location |
Right Hand Side Fuse Panel |
Fuse Table
Fuse N° Rating Functions
F01 40 A Heated rear window.
F02 10 A Heated door mirrors.
F03 30 A Front one-touch windows.
F04 - Not used.
F05 30 A Rear one-touch windows.
F06 10 A Folding door mirrors.
F07 10 A Folding door mirrors.
F08 - Not used.
F09 15 A Front heated seats.
F10 20 A Hi-Fi amplifier.
F11 - Not used.
F12 - Not used
Engine compartment Fuses Box

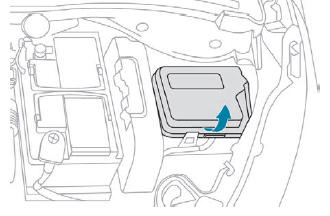

Access to the fuses
The fusebox is placed in the engine compartment near the battery (left-hand side).
Unclip the cover.
Change the fuse (see corresponding paragraph).
When you have finished, close the cover carefully to ensure correct sealing of the fusebox.
Change the fuse (see corresponding paragraph).
When you have finished, close the cover carefully to ensure correct sealing of the fusebox.
Underbonnet Fuse Box Diagram |
Fuse Table
Fuse N° Rating Functions
F16 15 A Front foglamps.
F18 10 A Right hand main beam headlamp.
F19 10 A Left hand main beam headlamp.
F25 30 A Headlamp wash relay (accessory).
F16 15 A Front foglamps.
F18 10 A Right hand main beam headlamp.
F19 10 A Left hand main beam headlamp.
F25 30 A Headlamp wash relay (accessory).
F26 (GPL) 20 A Battery + (positive). (2017 Model)
F29 40 A Front wiper motor.
F30 80 A Pre-heater plugs (Diesel).
F29 40 A Front wiper motor.
F30 80 A Pre-heater plugs (Diesel).
