| 2017 Kia Ceed |
Fuse Types
This vehicle has 3 (or 4) fuse panels, one located in the driver’s side panel bolster, others in the engine compartment near the battery.
 |
| Four types fuses Kia Ceed |
If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted.
If the electrical system does not work, first check the driver’s side fuse panel.
Always replace a blown fuse with one of the same rating.
Before replacing a blown fuse, move to safe place, turn off the engine and all electric devices, and disconnect the negative battery cable.
If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and we recommend that you consult an authorized Kia dealer.
Four kinds of fuses are used: blade type for lower amperage rating, cartridge type, battery fuse terminal and multi fuse type for higher amperage ratings.
vehicle’s electrical system is protected from electrical overload damage by fuses.
Inner panel fuse replacement
 |
| Inner panel fuse |
1. Turn the ignition switch and all other switches off.
2. Open the fuse panel cover.
3. Pull the suspected fuse straight out. Use the removal tool (Fuse Puller) provided in the engine compartment fuse panel.
4. Check the removed fuse; replace it if it is blown.
5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
If it fits loosely, we recommend that you consult an authorized Kia dealer. If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigar lighter fuse. If the headlights, fog lights, turn signal lights, position lights or interior lights do not work and there is nothing wrong with the bulbs, we recommend that you consult with an authorized Kia dealer.
Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity. |
| Inner panel fuse/relay panel covers |
Instrument panel (Driver’s side fuse panel)
1 30A P/SEAT DRV 4WAY : Driver Lumbar Support Switch ; 6WAY : Driver Seat Manual Switch, Driver IMS Module
2 25A H/LP WASHER ICM Relay Box (Head Lamp Washer Relay)
3 25A P/WDW RH Power Window Relay RH, Driver/Passenger Safety Power Window Module, Rear Safety Power Window Module RH
4 10A T/GATE OPEN Tail Gate Relay
5 25A P/WDW LH Power Window Relay LH, Driver/Passenger Safety Power; Window Module, Rear Safety Power Window Module LH
6 20A DR LOCK Door Lock/Unlock Relay, Dead Lock Relay
7 20A SPARE SPARE -
8 20A POWER OUTLET 2 Cigarette Lighter, Rear Power Outlet
9 20A P/SEAT ASS Passenger Lumbar Support Switch
10 15A RR WIPER ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor
11 7.5A MODULE 3 Auto Light & Photo Sensor, AT lever (Shift Lock), Hazard Switch
12 15A S/HEATER FRT Driver/Passenger Seat Warmer Module
13 10A ACC A/V & Navigation Head Unit (W/O ISG), Audio (W/O ISG), DC-DC Convertor (With ISG), Digital Clock, Smart Key Control Module, BCM, Outside Mirror Switch, Outside Mirror
14 7.5A A/CON Cluster Ionizer, A/C Control Module, Blower Relay, PTC Relay
15 7.5A IG2 ICM Relay Box (Head Lamp Washer Relay), Rain Sensor, BCM, Electro Chromic Mirror, Panorama Sunroof, Smart, Key Control Module, Passenger Seat Warmer Module,
Driver Seat Warmer Module
16 10A HTD MIRR Driver/Passenger Outside Mirror, ECU, A/C Control Module
17 7.5A INTERIOR LAMP Glove Box Lamp, Luggage Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp
18 7.5A PDM 2 Smart Key Control Module, Start/Stop Button Switch
19 7.5A B/HORN ICM Relay Box (Burglar Alarm Horn Relay)
20 20A SUNROOF Panorama Sunroof
21 10A MODULE 2 Electric Parking Brake Module, DC-DC Convertor (With ISG), Head Lamp Leveling Device Switch, A/C Control Module, Rear Parking Assist Sensor, Smart Parking Assist Control Module, Head Lamp LH/RH, ATM Shift Lever IND., Center Facia Switch, Crash Pad Lower Switch, Driver/Passenger Seat Warmer Module, Driver IMS Module
22 15A HTD STRG Steering Wheel Heater
23 20A IG1 E/R Fuse & Relay Box (ECU4, B/UP LAMP, ABS3, TCU2 FUSE)
24 25A FRT WIPER Wiper Relay , ICM Relay Box (Rain Sensor Relay), Front Wiper Motor
25 7.5A MEMORY 2 Immobilizer Module (W/O Smart Key)
26 7.5A MEMORY 1 Driver/Passenger Outside Mirror (Folding), Driver/Passenger Smart Key Outside Handle, Driver IMS Module, Center Facia Switch, Instrument Cluster, Tire Pressure Monitoring Module, BCM, A/C Control Module, ICM Relay Box (Outside Mirror Folding/Unfolding Relay), Ignition Key ILL. & Door Warning Switch, Rear Parking Assist Switch, Data Link Connector, Buzzer
27 10A BRAKE SWITCH Smart Key Control Module, Stop Lamp Switch
28 7.5A CLUSTER CLUSTER Instrument Cluster, Digital Clock
29 7.5A POWER STEERING EPS Unit
30 7.5A SPARE SPARE -
31 7.5A START Start Relay, ECU, Ignition Lock Switch, Transaxle Range Switch,
TCU, Smart Key Control Module
32 15A MULTI MEDIA A/V & Navigation Head Unit (W/O ISG), Audio (W/O ISG), DC-DC Convertor (With ISG), Digital Clock
33 10A SPARE SPARE -
34 25A PDM 1 Smart Key Control Module
35 15A POWER OUTLET1 Front Power Outlet
26 7.5A MEMORY 1 Driver/Passenger Outside Mirror (Folding), Driver/Passenger Smart Key Outside Handle, Driver IMS Module, Center Facia Switch, Instrument Cluster, Tire Pressure Monitoring Module, BCM, A/C Control Module, ICM Relay Box (Outside Mirror Folding/Unfolding Relay), Ignition Key ILL. & Door Warning Switch, Rear Parking Assist Switch, Data Link Connector, Buzzer
27 10A BRAKE SWITCH Smart Key Control Module, Stop Lamp Switch
28 7.5A CLUSTER CLUSTER Instrument Cluster, Digital Clock
29 7.5A POWER STEERING EPS Unit
30 7.5A SPARE SPARE -
31 7.5A START Start Relay, ECU, Ignition Lock Switch, Transaxle Range Switch,
TCU, Smart Key Control Module
32 15A MULTI MEDIA A/V & Navigation Head Unit (W/O ISG), Audio (W/O ISG), DC-DC Convertor (With ISG), Digital Clock
33 10A SPARE SPARE -
34 25A PDM 1 Smart Key Control Module
35 15A POWER OUTLET1 Front Power Outlet
36 7.5A A/BAG IND Instrument Cluster
37 10A MODULE 1 BCM, Tire Pressure Monitoring Module, AT Lever,
Audio, Adaptive Front Lighting Module, LDWS Unit
37 10A MODULE 1 BCM, Tire Pressure Monitoring Module, AT Lever,
Audio, Adaptive Front Lighting Module, LDWS Unit
38 15A A/BAG SRS Control Module
Engine compartment panel fuse replacement
 |

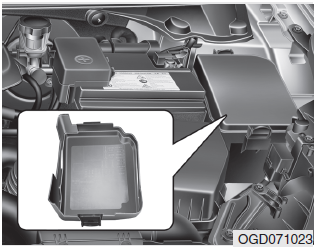

| Engine compartment panel fuse |
1. Turn the ignition switch and all other switches off.
2. Remove the fuse box cover by pressing the tap and pulling up. When the blade type fuse is disconnected, remove it by using the clip designed for changing fuses located in the engine room fuse box. Upon removal, securely insert reserve fuse of equal quantity.
3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.If it fits loosely, we recommend that you consult an authorized Kia dealer.
 |
| Engine compartment fuse panel (for gasoline engine MPI, GDI) |
 |
| Engine compartment fuse panel (for gasoline engine MPI, GDI) |
 |

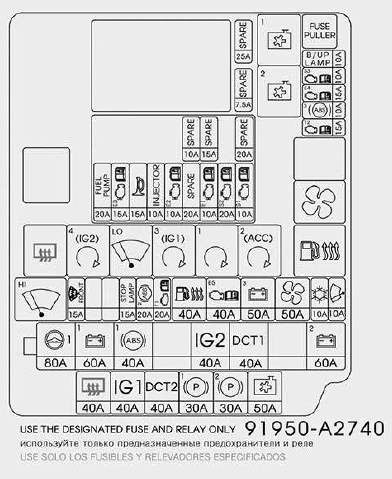

| Engine compartment fuse panel (for Diesel Engine) |

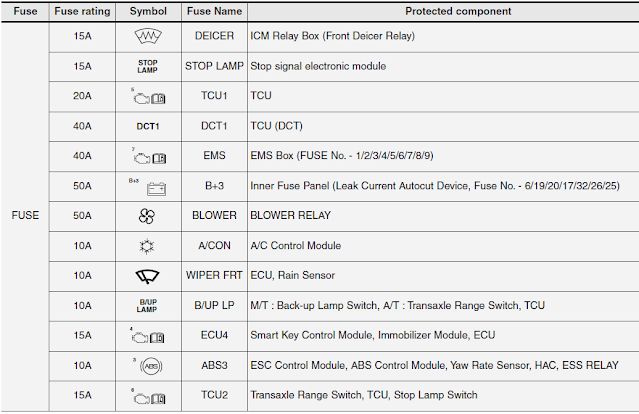

Engine compartment main fuse panel (for gasoline engine MPI, GDI)
Main Fuse
 |
| Main Fuse |
Electrical equipments are not working even though inner panel and engine compartment fuses are not blown, or many of these are not working at the same time, it may has blown the main fuse (Battery Fuse Terminal type) inside of the battery(+) cap.
If the main fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.
5. Reinstall in the reverse order of removal.
CAUTION
• After checking the main fuse, install the cover securely when you close the cover, check the locking sound.
If not, electrical failures may occur from water leaking in.
• Visually inspect the battery cap for secure closing. If the battery cap is not securely latched, the electrical system may be damaged to due influx of moisture into the system.
If the main fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.
5. Reinstall in the reverse order of removal.
CAUTION
• After checking the main fuse, install the cover securely when you close the cover, check the locking sound.
If not, electrical failures may occur from water leaking in.
• Visually inspect the battery cap for secure closing. If the battery cap is not securely latched, the electrical system may be damaged to due influx of moisture into the system.
Multi fuse
 |
| Multi fuse |
If the multi fuse is blown, it must be removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel on the right side in the engine compartment.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
✽ NOTICE
If the multi fuse or main fuse is blown, we recommend that you consult an authorized Kia dealer.
If the multi fuse or main fuse is blown, we recommend that you consult an authorized Kia dealer.
