| 2014 Opel Cascada |
Data on the replacement fuse must match the data on the defective fuse.
There are three fuse boxes in the vehicle:
■ in the front left of the engine compartment,
■ in left-hand drive vehicles, in the interior behind the storage compartment, or, in right-hand
drive vehicles, behind the glovebox,
■ behind a cover on the left side of the load compartment.
Before replacing a fuse, turn off the respective switch and the ignition.
A blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
Some functions are protected by several fuses.
Fuses may also be inserted without existence of a function.
There are three fuse boxes in the vehicle:
■ in the front left of the engine compartment,
■ in left-hand drive vehicles, in the interior behind the storage compartment, or, in right-hand
drive vehicles, behind the glovebox,
■ behind a cover on the left side of the load compartment.
Before replacing a fuse, turn off the respective switch and the ignition.
A blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
Some functions are protected by several fuses.
Fuses may also be inserted without existence of a function.
 |
| Blown fuse |
Fuse extractor
 |
| Fuse extractor |
A fuse extractor may be located in the fuse box in the engine compartment.
Place the fuse extractor on the various types of fuse from the top or side, and withdraw fuse.

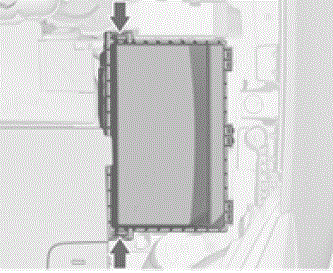

Engine compartment fuse box
The fuse box is in the front left of the engine compartment.
Disengage the cover and fold it upwards until it stops. Remove the
cover vertically upwards.
Disengage the cover and fold it upwards until it stops. Remove the
cover vertically upwards.
 |
| Engine compartment fuse box location |
 |
| Engine compartment fuse Panel Diagram |
No. .. Circuit
1 Engine control module
2 Lambda sensor
3 Fuel injection, ignition system
4 Fuel injection, ignition system
5 –
6 Mirror heating
7 Fan control
8 Lambda sensor, engine cooling
9 Rear window sensor
10 Vehicle battery sensor
11 Trunk release
12 Adaptive forward lighting, automatic light control
13 ABS Valves
14 –
15 Engine control module
16 Starter
17 Transmission control module
18 Heated rear window
19 Front power windows
20 Rear power windows
21 Rear eletrical centre
22 Left high beam (Halogen)
23 Headlamp washer system
24 Right low beam (Xenon)
25 Left low beam (Xenon)
26 Front fog lights
27 Diesel fuel heating
28 Start stop system
29 Electric parking brake
30 ABS pump
31 –
32 Airbag
33 Adaptive forward lighting, automatic light control
34 Exhaust gas recirculation
35 Power windows, rain sensor, exterior mirror
36 Climate control
37 –
38 Vacuum pump
39 Fuel system control module
40 Windscreen washer system
41 Right high beam (Halogen)
42 Radiator fan
43 Windscreen wiper
44 –
45 Radiator fan
46 –
47 Horn
No. Circuit
48 Radiator fan
49 Fuel pump
50 Headlamp levelling, adaptive forward lighting
51 –
52 Auxiliary heater, diesel engine
53 Transmission control module, Engine control module
54 Vacuum pump, instrument panel cluster, heating ventilation, air conditioning system
After having changed defective fuses, close the fuse box cover and press until it engages.
If the fuse box cover is not closed correctly, malfunctions may occur
Instrument panel fuse box
In left-hand drive vehicles, the fuse box is behind the storage compartment in the instrument panel.
Open the compartment and push it to the left to unlock. Fold the compartment down and remove it.
Open the compartment and push it to the left to unlock. Fold the compartment down and remove it.
In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox, then open the cover and fold it down.
 |
| Instrument panel fuse Panel Diagram |
No. .. Circuit
1 Displays
2 Body control unit, exterior lights
3 Body control unit, exterior lights
4 Infotainment system
5 Infotainment system, instrument
6 Power outlet, cigarette lighter
7 Power outlet
8 Body control module, left low beam
9 Body control module, right low beam
10 Body control module, door locks
11 Interior fan
12 Driver power seat
13 Passenger power seat
14 Diagnostic connector
15 Airbag
16 Boot lid relay
17 Air conditioning system
18 Service diagnose
19 Body control module, brake lights, tail lights, interior lights
20 -
21 Instrument panel
22 Ignition system
23 Body control module
24 Body control module
25 –
26 Trunk power outlet accessory
1 Displays
2 Body control unit, exterior lights
3 Body control unit, exterior lights
4 Infotainment system
5 Infotainment system, instrument
6 Power outlet, cigarette lighter
7 Power outlet
8 Body control module, left low beam
9 Body control module, right low beam
10 Body control module, door locks
11 Interior fan
12 Driver power seat
13 Passenger power seat
14 Diagnostic connector
15 Airbag
16 Boot lid relay
17 Air conditioning system
18 Service diagnose
19 Body control module, brake lights, tail lights, interior lights
20 -
21 Instrument panel
22 Ignition system
23 Body control module
24 Body control module
25 –
26 Trunk power outlet accessory
Load compartment fuse box
The fuse box is on the left side of the load compartment behind a cover. |
| Load compartment Fuse Box Location |
 |
| Load compartment fuse Panel Diagram |
No. Circuit
1 Soft top control module, power rail right
2 –
3 Parking assist
4 –
5 –
6 –
7 Power seat
8 Soft top control module
9 –
10 –
11 Trailer module, tire pressure monitor and rear view camera
12 Soft top control module, tail lights
13 –
14 Rear seat electrical folding
15 –
16 Seat ventilation, rear view camera, soft top control module
17 –
18 –
19 Steering wheel heating
20 –
21 Seat heating
22 –
23 Soft top control module, power rail left
24 –
25 –
26 Jumper fuse for non logistic mode
27 Passive entry
28 –
29 Hydraulic unit
30 –
31 –
32 Flex Ride
