| 2011 Opel Agila |
Data on the replacement fuse must match the data on the defective fuse.
There are two fuse boxes in the vehicle:
■ on the left-hand side of the vehicle below the instrument panel.
■ in the engine compartment located next to the battery.
Before replacing a fuse, turn off the respective switch and the ignition.
There are two fuse boxes in the vehicle:
■ on the left-hand side of the vehicle below the instrument panel.
■ in the engine compartment located next to the battery.
Before replacing a fuse, turn off the respective switch and the ignition.
 |
| Blown fuse |
A blown fuse can be recognised by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
Spare fuses can be kept in the engine compartment fuse box.
Some functions are protected by several fuses.
Fuses may also be inserted without existence of a function.
To help in replacing fuses, a fuse extractor is located in the fuse box.
Place the fuse extractor on the various types of fuse from the top or side, and withdraw fuse.
Spare fuses can be kept in the engine compartment fuse box.
Some functions are protected by several fuses.
Fuses may also be inserted without existence of a function.
To help in replacing fuses, a fuse extractor is located in the fuse box.
Place the fuse extractor on the various types of fuse from the top or side, and withdraw fuse.
 |
| Fuse extractor |
Engine compartment fuse box
The fuse box is located next to the battery in the engine compartment.
Disengage the cover and tilt upwards to open.
 |
| Engine compartment fuse box location |
 |
| Engine compartment fuse panel diagram |
No. Circuit
1 Heater fan
2 Fuel injection
3 Air conditioning compressor
4 Automatic transmission
5 Brake light switch
6 ABS, ESP
7 Starter motor
8 -
9 Power steering control module
10 Ignition switch
11 Radiator fan
12 -
13 ABS, ESP
14 -
15 Engine electrics
16 Front fog lights
17 Headlight (left)
18 Headlight (right)
Located on the driver's side of the vehicle, below the instrument panel.
To open the fuse box, push the cover at both ends and remove. Do not store any objects behind the cover.
Some circuits may be protected by several fuses.
1 Heater fan
2 Fuel injection
3 Air conditioning compressor
4 Automatic transmission
5 Brake light switch
6 ABS, ESP
7 Starter motor
8 -
9 Power steering control module
10 Ignition switch
11 Radiator fan
12 -
13 ABS, ESP
14 -
15 Engine electrics
16 Front fog lights
17 Headlight (left)
18 Headlight (right)
Instrument panel fuse box
Located on the driver's side of the vehicle, below the instrument panel.
To open the fuse box, push the cover at both ends and remove. Do not store any objects behind the cover.
Some circuits may be protected by several fuses.
 |
| Instrument panel fuse box Location |
 |

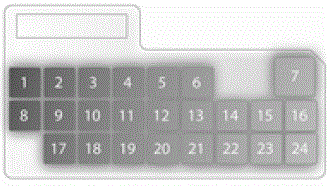

| Instrument panel fuse Diagram |
No. Circuit
1 –
2 Ignition coils
3 Reversing light
4 Instrument cluster
5 Power outlet, cigarette lighter,
power exterior mirror
6 Infotainment system
7 Power windows
8 Wipers/washers
9 Power steering
10 Airbag system
11 ABS, ESP
12 Tail light
13 Stop-start system
14 Door lock
15 -
16 Starter motor
17 -
18 Heater fan
19 Rear fog light
20 Infotainment system
21 Heated rear window
22 Horn, hazard warning
23 Stop-start system
24 Power window timer
1 –
2 Ignition coils
3 Reversing light
4 Instrument cluster
5 Power outlet, cigarette lighter,
power exterior mirror
6 Infotainment system
7 Power windows
8 Wipers/washers
9 Power steering
10 Airbag system
11 ABS, ESP
12 Tail light
13 Stop-start system
14 Door lock
15 -
16 Starter motor
17 -
18 Heater fan
19 Rear fog light
20 Infotainment system
21 Heated rear window
22 Horn, hazard warning
23 Stop-start system
24 Power window timer
