2013 - 2019 Ford Flex Fuse Box Diagram

2013 Ford Flex
2013 Ford Flex

Changing a Fuse


WARNING: Always replace a fuse with one that has the specified amperage rating. Using a fuse with a higher amperage rating can cause severe wire damage and could start a fire.

Blown fuse
Blown fuse

If electrical components in the vehicle are not working, a fuse may have blown. Blown fuses are identified by a broken wire within the fuse. Check the appropriate fuses before replacing any electrical components.

Standard Fuse Amperage Rating and Color



COLOR

Fuse link

cartridge

Cartridge

maxi

fuses

Maxi

fuses

Standard

fuses

Mini

fuses

Fuse

rating

- -

- -

- -

Grey

Grey

2A

- -

- -

- -

Violet

Violet

3A

- -

- -

- -

Pink

Pink

4A

- -

- -

- -

Tan

Tan

5A

- -

- -

- -

Brown

Brown

7.5A

- -

- -

- -

Red

Red

10A

- -

- -

- -

Blue

Blue

15A

Blue

Blue

Yellow

Yellow

Yellow

20A

Natural

Natural

- -

Natural

Natural

25A

Pink

Pink

Green

Green

Green

30A

Green

Green

Orange

- -

- -

40A

Red

Red

Red

- -

- -

50A

Yellow

Yellow

Blue

- -

- -

60A

Brown

- -

Tan

- -

- -

70A

Black

Black

Natural

- -

- -

80A


Fuse Types


Fuse Types
Fuse Types
A - Micro 2.
B - Micro 3.
C - Maxi.
D - Mini.
E - M Case.
F - J Case.
G - J Case Low Profile.
H - Slotted M Case.

Power Distribution Box


WARNING: Always disconnect the battery before servicing high current fuses.
WARNING: To reduce risk of electrical shock, always replace the cover to the power distribution box before reconnecting the battery or refilling fluid reservoirs.

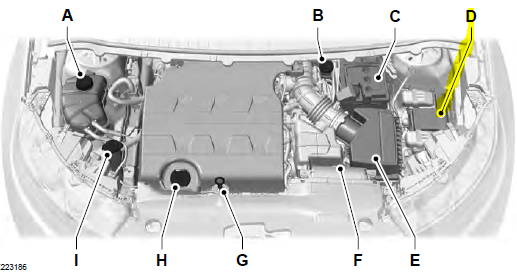

D - Engine compartment fuse box Location - 3.5L DURATEC
D - Engine compartment fuse box Location - 3.5L DURATEC

The power distribution box is located in the engine compartment. It has high-current fuses that protect your vehicle’s main electrical systems from overloads.
If the battery has been disconnected and reconnected, see Changing the Vehicle Battery in the Maintenance chapter.

Power Distribution Fuse Box - Fuse Schematic view
Power Distribution Fuse Box - Schematic view

The high-current fuses are coded as follows:

Fuse or relay number..... Fuse amp rating ... Protected components
1 40A** Fan relay 2
2 40A** Fan relay 1
3 30A** Trailer brake control module
4 30A** Wipers, Washer pump
5 50A** Anti-lock brake system (ABS) pump
6 — Not used (2017-2019 Models - Center console power point (without rear park aid).  )
7 30A** Power liftgate
8 20A** Moonroof
9 20A** Second row console power point
10 — Third row power seats relay
11 — Heated rear window relay
12 — Trailer tow battery charge relay
13 — Starter relay
14 — Cooling fan #2 relay
15 — Fuel relay
16 — Not used
17 30A** 110V AC power point
18 40A** Front blower motor
19 30A** Starter motor
20 20A** Inside bin power point
21 20A** Instrument panel power point / cigar lighter
22 30A** 3rd row seat module
23 30A** Driver power seat, Memory module
24 30A** Trailer tow battery charge
25 — Not used
26 40A** Rear window defroster, Heated mirrors
27 20A** Cargo power point
28 30A** Front heated/cooled seats
29 20A** Front heated seats
30 20A** Rear heated seats
31 25A** Electronic fan relay 3
32 — Auxiliary blower relay
33 — Cooling fan #1 relay
34 — Front blower relay
35 — Cooling fan (series) relay
36 — Not used
37 — Trailer tow right-hand stop/turn lamps relay
38 — Trailer tow reverse lamps relay
39 30A** Auxiliary blower motor
40 — Not used
41 — Not used
42 30A** Passenger power seat
43 20A** Anti-lock brake system (ABS) valves
44 — Windshield washer relay
45 5A* Rain sensor
46 5A* Canister vent solenoid (EcoBoost engines)
47 15A* Washer pump
48 10A* Front park lamps
49 — Not used
50 10A* Heated mirrors
51 5A* Powertrain control module — Injector power monitor (non-EcoBoost engines)
52 — Not used
53 — Trailer tow left-hand stop/turn lamps relay
54 — Not used
55 — Wipers relay
56 30A* Fuel injectors, Fuel pump relay
57 20A* Left high-intensity discharge headlamps
58 10A* Alternator sensor
59 10A* Brake on/off switch
60 10A* Trailer tow back-up lamps
61 — Not used
62 10A* A/C clutch
63 15A* Trailer tow stop/turn lamps
64 15A* Rear wipers
65 — Not used
66 — Powertrain control module – vehicle power relay
67 20A* Vehicle power #2 – Oxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid, Canister vent solenoid, Canister purge solenoid
68 20A* Vehicle power #4 (ignition coils)
69 20A* Vehicle power #1 (PCM)
70 15A* Vehicle power #3 (coil) – A/C clutch relay, Fan control relays, Variable air conditioning compressor, Auxiliary transmission warmup, Turbo charge waste-gate control, Electronic compressor bypass valve (for turbo charger), All-wheel drive module, Positive crackcase ventilation heater

71 — Not used
72 — Not used
73 — Not used
74 — Not used
75 — Not used
76 — Not used
77 — Trailer tow park lamps relay
78 20A* Right high-intensity discharge headlamps
79 10A* Adaptive cruise control
80 — Not used
81 — Not used
82 15A* Rear washer
83 — Not used
84 20A* Trailer tow park lamps
85 — Not used
86 5A* Powertrain control module — keep-alive power, Powertrain control module relay, Canister vent solenoid (non-EcoBoost engines)
87 5A* Run/start
88 — Run/start relay
89 10A* Anti–lock brake system (ABS) module
90 10A* Powertrain control module run/start
91 10A* Adaptive cruise control
92 5A* Front blower relay coil, Power steering module
93 5A* Auxiliary blower, Rear defroster, Battery charge relays
94 30A** Body control module run/start
95 5A* Front passenger window switch
96 — Not used
97 — Not used
98 — A/C clutch relay

*Mini Fuses **Cartridge Fuses

Passenger Compartment Fuse Panel


The fuse panel is located under the instrument panel to the left of the steering wheel. You may need to remove a trim panel to access it.

Passenger Compartment Fuse Panel Diagram
Passenger Compartment Fuse Panel Diagram

The fuses are coded as follows:

Fuse or relay number ... Fuse amp rating ... Protected components
1 30A Driver side front window (2016 Model - Passenger side rear window)
2 15A Memory seat, Second row seats
3 30A Not used (spare)  - (2016 - 2019 Model - Passenger side front window)
4 10A Battery saver relay (interior demand lamps and seat power)
5 20A Smart amplifier
6 5A Not used (spare)
7 7.5A Power mirror switch, Driver door module, Driver seat module, Keypad
8 10A Power liftgate
9 10A SYNC, Electronic finish panel, Radio transceiver module
10 10A Run/accessory relay, Front wiper motor relay
11 10A Intelligent access module, Heads-up display
12 15A Interior lighting, Puddle lamps, Backlighting
13 15A Right turn signals
14 15A Left turn signals
15 15A Center high mounted stop lamp, Backup lamp
16 10A Low beam headlamps (right)
17 10A Low beam headlamps (left)
18 10A Third row power seats, Start button run indicator, Keypad illumination, Brake shift interlock, Powertrain control module wake-up, Anti-theft system
19 20A Not used (spare)
20 20A Locks
21 10A Not used (spare)
22 20A Horn relay
23 15A Steering wheel control module, Instrument cluster
24 15A Datalink connector, Steering wheel control module
25 15A Liftgate release
26 5A Ignition switch, Push button start switch
27 20A Intelligent access module
28 15A Not used (spare)
29 20A Radio, Global positioning system module
30 15A Front park lamps, Trailer tow relay for park lamps, Front side markers
31 5A Trailer tow controller
32 15A Driver window switch and motor, Power lock switches, Moonroof, 110V AC power point, Interior rearview mirror
33 10A Not used (spare)
34 10A Blind spot monitor, 2nd row heated seats, Reverse sensing system, Rearview camera
35 5A Heads-up display, Climate control humidity sensor
36 10A Not used (spare)
37 10A Refrigerator
38 10A Front passenger window switch
39 15A High beam headlamps
40 10A Rear park lamps, License plate lamps
41 7.5A Occupant classification system, Restraints control module (2017 Model - Extended power module).
42 5A Not used (spare)
43 10A Not used (spare)
44 10A Not used (spare)
45 5A Not used (spare)
46 10A Climate control module
47 15A Fog lamps, Fog lamp indicator, Front turn signals #2
48 30A Circuit Breaker ... Front passenger power window, Rear power windows
49  relay ... Delayed accessory. Body control module
