Introduction
Individual electrical circuits are protected by fuses.
› Before replacing a fuse, switch off the ignition and the appropriate consumer
› Find out which fuse belongs to the component that is not operating
» Fuses in the dash panel or Fuses in the engine compartment.
› Take the plastic clip out of its fixture in the cover of the fuse box, place it on the relevant fuse and pull it out.
› A blown fuses is recognisable by the molten metal strip. Replace the faulty fuse with a new one of the same amperage.
Fuses in the dash panel
The fuses are located on the left side of the dash panel behind a cover.
› Carefully remove the cover in the direction of the arrow
› After the fuse has been replaced, replace the cover in the dash panel in the opposite direction of the arrow so that the guide lugs are guided into the openings of the dash panel. Close the cover until it clicks into place.
Underside of the dash panel: Distribution board cover |
Schematic representation of the fuse box for vehicles with lefthand steering/right-hand steering |
Fuse assignment in the dash panel
No. Consumer
1 S-contact
2 START-STOP, air-conditioning system
3 Instrument cluster, headlamp beam adjustment
4 Control unit for ABS, button for START STOP
5 Petrol engine: Speed regulating system
6 Reversing light (manual gearbox)
7 Ignition, engine control unit, automatic gearbox
8 Brake pedal switch, clutch pedal switch
9 Operating controls for the heating, control unit for air conditioning system, parking aid, control unit for cornering lights, radiator fan, washing nozzles
10 Windscreen Wiper and Washer System
11 Mirror adjustment
12 Control unit for trailer detection
13 Automatic gearbox control unit
14 Motor for halogen projector headlights with cornering light function
15 PDA navigation system
16 Electrohydraulic power steering
17 Light switch power supply
18 Mirror heater
19 S-contact
20 Alarm
21 Reversing light, fog lights with the function CORNER
22 Operating controls for the heating, control unit for air conditioning system, parking aid, mobile phone, instrument cluster, steering angle sender, ESC, vehicle voltage control unit, multifunction steering wheel
23 Interior lighting, storage compartment and luggage compartment, side lights
24 Central control unit
25 Seat heaters
26 Rear window wiper
27 Telephone preinstallation
28 Petrol engine: AKF valve, Diesel engine: Control flap
29 Injection, coolant pump
30 Fuel pump, ignition, Cruise control system, operation of PTC relay
31 Lambda probe
32 High pressure fuel pump, pressure valve
33 Engine control unit
34 Engine control unit, vacuum pump
35 Daytime running lights/radio for vehicles with START-STOP
36 Main beam
37 Rear fog light, DC/DC converter START-STOP
38 Fog lights
39 Air blower for heating
40-41 Not assigned
42 Rear window heater
43 Horn
44 Windscreen wipers
45 Central control unit for convenience system
46 Engine control unit, fuel pump
47 Cigarette lighter, power socket in the luggage compartment
48 ABS, START-STOP (DC/DC) converter ESP
49 Turn signal lights, brake lights
50 START-STOP (DC/DC) transformer, radio
51 Electrical power window (front and rear) - left side
52 Electrical power window (front and rear) - right side
53 Parking light = left side, electrical sliding/tilting roof
54 START-STOP (instrument cluster), alarm
55 Automatic gearbox control unit
56 Headlight cleaning system, parking light - right side
57 Left low beam, headlight range adjustment
58 Low beam on the right
Engine Compartment Fuse Box
> Press the securing clips on the fuse box cover together at the same time in the direction of arrow A and remove the cover in the direction of arrow B .
> Release the fixtures in the openings C using a flat screwdriver and fold the cover upwards in direction of arrow D.
Vehicle battery: Distribution board cover |
Schematic representation of fuse box in engine compartment |
Fuse assignment in engine compartment
No. Consumer
1 Alternator
2 Not assigned
3 Interior
4 Electrical auxiliary heating system
5 Interior
6 Glow plugs, radiator fan
7 Electrohydraulic power steering
8 ABS or TCS or ESC
9 Radiator fan
10 Automatic gearbox
11 ABS or TCS or ESC
12 Central control unit
13 Electrical auxiliary heating system
Replace fuses at the battery (automatic gearbox)
The battery: Open the positive terminal cover/fuse cover |

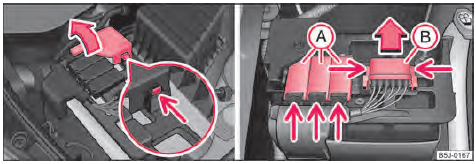

Open the positive terminal cover
– Press onto the interlocks of the fuse covers A ⇒ fig. 150 on the right and open the covers.
– Press together the interlocks of the fuse cover B simultaneously and push out the cover in the direction of the arrow.
– Find out which fuse belongs to the component which is not operating , Fuse assignment at the battery (manual gearbox, automatic gearbox DSG).
– Defect fuses can be detected by their melted metal strips. Replace the defect fuse by a new fuse of the same ampere number.
– Press together the interlocks of the fuse cover B simultaneously and push out the cover in the direction of the arrow.
– Find out which fuse belongs to the component which is not operating , Fuse assignment at the battery (manual gearbox, automatic gearbox DSG).
– Defect fuses can be detected by their melted metal strips. Replace the defect fuse by a new fuse of the same ampere number.
WARNING
Read and observe the warning notes ⇒ page 150, Working in the engine compartment
before working in the engine compartment.
Read and observe the warning notes ⇒ page 150, Working in the engine compartment
before working in the engine compartment.
CAUTION
● Never attempt to “repair” fuses and also do not replace them with a fuse of a higher amperage - risk of fire! This may also cause damage at another part of the electrical system.
● Have the electrical system checked as quickly as possible by a specialist garage if a newly inserted fuse blows again after a short time.
Note
● We recommend that you have these fuses replaced by a specialist garage.
● Some vehicles are only fitted with the cover B .
Fuse assignment at the battery (automatic gearbox)
Schematic representation of fuse assignment at battery |
Certain electrical components are only standard on certain vehicle model versions or only available as optional equipment for certain models.
No. Power consumer
1 Generator
2 Interior
3 Electrical auxiliary heating system
4 ESP
5 Electrohydraulic power steering
6 Glow plugs
7 ESP
8 The radiator fan
9 The air conditioning system
10 ABS
11 Central control unit
12 Automatic gearbox , electrical auxiliary heating system
