2013 - 2014 Vauxhall / Opel Astra Fuse Box Diagram

2013 Opel Astra

Fuse and Relays

Data on the replacement fuse must match the data on the defective fuse.

There are three fuse boxes in the vehicle:
■ In the front left of the engine compartment,
■ In left-hand drive vehicles, in the interior behind the storage compartment, or, in right-hand drive vehicles, behind the glovebox,
■ Behind a cover on the left side of the load compartment.

Before replacing a fuse, turn off the respective switch and the ignition.
A blown fuse can be recognized by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.
Some functions are protected by several fuses.
Fuses may also be inserted without existence of a function.

Fuse extractor



A fuse extractor may be located in the fuse box in the engine compartment.

Place the fuse extractor on the various types of fuse from the top or side, and withdraw fuse.

Fuse extractor

Engine compartment fuse box

The fuse box is in the front left of the engine compartment.

Disengage the cover and fold it upwards until it stops. Remove the cover vertically upwards.

Engine Compartment Fuse Box

Engine Compartment Fuse Panel Diagram

No. Circuit

1 Engine control module

2 Lambda probe

3 Fuel injection, ignition system

4 Fuel injection, ignition system

5 –

6 Mirror heating

7 Fan control

8 Lambda probe, engine cooling

9 Rear window sensor

10 Battery sensor

11 Trunk release

12 Adaptive forward lighting module

13 –

14 Rear window wiper

15 Engine control module

16 Starter

17 Transmission control module

18 Heated rear window

19 Front power windows

20 Rear power windows

21 ABS

22 Left high beam (Halogen)

23 Headlamp washer system

24 Right low beam (Xenon)

25 Left low beam (Xenon)

26 Fog lights

27 Diesel fuel heating

28 –

29 Electrical parking brake

30 ABS

31 –

32 Airbag

33 Adaptive forward lighting

34 –

35 Power windows

36 –

37 Canister vent solenoid

38 Vacuum pump

39 Fuel system control module

40 Windscreen washer, Rear window washer system

41 Right high beam (Halogen)

42 Radiator fan

43 Windscreen wiper

44 –

45 Radiator fan

46 –

47 Horn

48 Radiator fan

49 Fuel pump

50 Headlamp levelling

51 Air shutter

52 Auxiliary heater, diesel engine

53 Transmission control module, Engine control module

54 Wiring monitoring, Vacuum pump, instrument panel cluster, heating ventilation, air conditioning system.

After having changed defective fuses close the fuse box cover and press until it engages.

If the fuse box cover is not closed correctly, malfunction may occur.

Instrument panel fuse box

Instrument panel fuse box in left-hand drive vehicles

In Left-hand drive vehicles, the fuse box is behind the storage compartment in the instrument panel. Open the compartment and push it to the left to unlock. Fold the compartment down and remove it.

Instrument panel fuse box in Right-hand drive vehicles



In Right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox, then open the cover and fold it down.

Fuse assignments

No. Circuit

1 Displays

2 Exterior lights , body control module

3 Exterior lights , body control module

4 Radio

5 Infotainment system, instrument

6 Power outlet front (Cigarette Lighter)

7 Power outlet rear seat

8 Left low beam

9 Right low beam

10 Door locks

11 Interior fan

12 –

13 –

14 Diagnostic connector

15 Airbag

16 –

17 Air conditioning (A/C) system

18 Prefuse: radio, Infotainment,displays

19 Brake lights, tail lights, interior lights

20 –

21 –

22 Ignition switch

23 Body control unit

24 Body control unit

25 –

26 Power outlet load compartment (if no load compartment fuse box) (Sports tourer only)

Load compartment fuse box



3-door hatchback, 5-door hatchback



The fuse box is on the left side of the load compartment behind a cover. Remove the cover.

Fuse Box Location (3-door hatchback, 5-door hatchback)

Sports tourer



The fuse box is on the left side of the load compartment behind a cover.





Fold down the blind and remove.





Remove the cover.

Fuse assignments

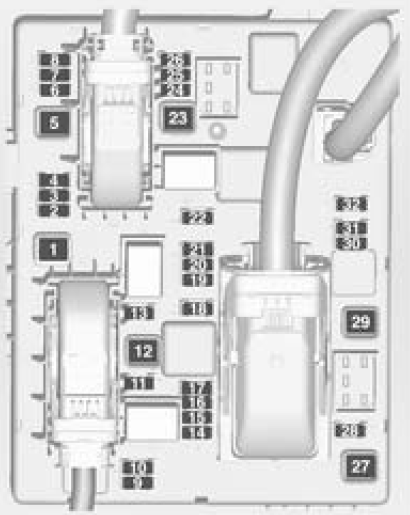

 Load compartment Fuse Panel Diagram

When assembling press the blind into the rubber grommets to reach full retention force.



No. Circuit

1 Trailer module

2 Trailer outlet

3 Parking assist

4 –

5 –

6 –

7 –

8 Anti-theft alarm system

9 –

10 –

11 Trailer module, Trailer socket

12 –

13 Trailer outlet

14 –

15 –

16 –

17 –

18 –

19 Steering wheel heating

20 Sunroof

21 Seat heating

22 –

23 –

24 –

25 –

26 –

27 –

28 –

29 –

30 –

31 Amplifier, Subwoofer

32 Active damping system, Lane departure warning
