2012 - 2013 Kia Sorento Fuse Box Diagram

2013 Kia Sorento



 Fuse Types

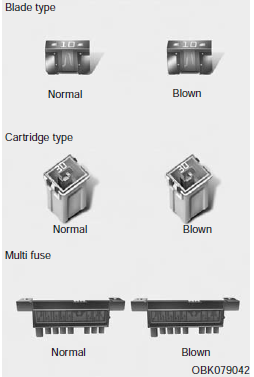

Fuses Types - Blown Fuse, Normal Fuse



This vehicle has 2 fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.

If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will melt.

If the electrical system does not work, first check the driver’s side fuse panel.

Always replace a blown fuse with one of the same rating.

If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized KIA dealer.

Three kinds of fuses are used: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.

WARNING - Fuse replacement

• Never replace a fuse with anything but another fuse of the same rating.

• A higher capacity fuse could cause damage and possibly a fire.

• Never install a wire or aluminum instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and a possible fire.

CAUTION

Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.

Inner panel fuse replacement



1. Turn the ignition switch and all other switches off.

2. Open the fuse panel cover.

3. Pull the suspected fuse straight out. Use the removal tool provided on the engine compartment fuse panel cover.

4. Check the removed fuse; replace it if it is blown.

Spare fuses are provided in the engine compartment fuse panel.

5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

If it fits loosely, consult an authorized KIA dealer.

If you do not have a spare, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the power outlet fuse.

If the headlights or other electrical components do not work and the fuses are OK, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced.

Inner panel fuse

Memory fuse

Memory Fuse Location

Your vehicle is equipped with a memory fuse to prevent battery discharge if your vehicle is parked without being operated for prolonged periods. Use the following procedures before parking the vehicle for prolonged periods.

1. Turn off the engine.

2. Turn off the headlights and tail lights.

3. Open the driver’s side panel cover and pull out the memory fuse.

NOTICE

• If the memory fuse is pulled out from the fuse panel, the warning chime, audio, clock and interior lamps, etc., will not operate.

• Even though the memory fuse is pulled out, the battery can still be discharged by operation of the headlights or other electrical devices.

Inner fuse panel description

Inner fuse panel coding



Description ... Fuse rating ... Protected component
MODULE 2 10A Instrument Cluster (IND./MICOM), Tire Pressure Monitoring Module, Audio, Multifunction Switch (Remocon), Rear Parking Assist Buzzer ICM Relay Box (DBC Relay), ESC Off Switch, DBC Switch, Steering Angle Sensor, Alternator, Smart Key Control Module A/V & Navigation Head Unit, Rear Monitor, IPM (BCM IG1)
MODULE 1 10A Smart Key Control Module, Rear Parking Assist Control Module E/R Fuse & Relay Box (Fuse - B/UP LP, ABS, ECU 2), PDM, 4WD ECM
RPAS 7.5A Rear Parking Assist Switch
A/BAG IND 10A Instrument Cluster (IND.), PODS Module, Digital Clock
A/BAG 15A SRS Control Module
START 7.5A E/R Fuse & Relay Box (Relay - Start, Sub Start, Burglar Alarm), PDM
WIPER RR 15A ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor Rear Wiper Switch, Rear Washer Switch
WIPER FRT 25A E/R Fuse & Relay Box (Wiper (Low) Relay), Front Wiper Motor, Multifunction Switch (Wiper)
AUDIO 2 7.5A AMP, Power Outside Mirror Switch, Smart Key Control Module, PDM, Audio, A/V & Navigation Head Unit, Digital Clock, IPM (BCM ACC), DVD Player Can, Rear Monitor
P/OUTLET RR 15A Rear Power Outlet
P/OUTLET FRT 25A Driver/Passenger Power Outlet (Cigarette Lighter)
MODULE 3 7.5A Not Used
A/CON 7.5A Front A/C Control Module, Active Incar Sensor, Cluster Ionize, PDM, ICM Relay Box (Front Seat Warmer Relay, Rear A/C Relay) E/R Fuse & Relay Box (Blower Relay), Sunroof Motor, Electro Chromic Mirror, IPM (BCM IG2)
AMP 30A AMP
DRL 7.5A Ground (GE01)
A/CON MANU 7.5A PCM, Front Blower Resistor, Front A/C Control Module
A/CON AUTO 7.5A Front A/C Control Module

B/A HORN 10A Burglar Alarm Horn Relay
A/CON REAR 20A ICM Relay Box (Rear A/C Relay)
P/WDW LH 25A Driver Power Window Relay, Power Window Main Switch, Rear Power Window Switch LH, Driver Safety Power Window Module
P/WDW RH 25A Passenger Power Window Relay, Power Window Main Switch Passenger Power Window Switch, Rear Power Window Switch RH
MODULE 15A Audio, A/V & Navigation Head Unit, RF Receiver, IPM (BCM B+), Rear Monitor
ROOM LP 10A Instrument Cluster (IND.), Digital Clock, Front A/C Control Module Data Link Connector, Door Warning Switch, Personal Room Lamp Room Lamp Auto Cut Relay, Overhead Console (MAP Lamp) Room Lamp, Cargo Lamp, Driver/Passenger Vanity Lamp Electro Chromic Mirror
DOOR LP 10A Driver/Passenger Door Scuff Lamp, DVD Player Can
DR LOCK 20A Door Lock/Unlock Relay, ICM Relay Box (Two Turn Unlock Relay)  Driver/Passenger Door Lock Actuator, Rear Door Lock Actuator LH/RH
PDM 20A PDM
SUNROOF 20A Sunroof Motor
SMART KEY 10A PDM, Smart Key Control Module, Start Stop Button Switch, FOB Holder, Key Solenoid
S/HTR FRT 20A ICM Relay Box (Front Seat Warmer Relay)
P/SEAT DRV 30A Driver Power Seat Switch, Driver Lumbar Support Switch
P/SEAT PASS 20A Passenger Power Seat Switch
HTD STRG 15A Steering wheel heater
4WD 10A 4WD ECM, Sport Mode Switch

HAZARD 15A IPM (Flasher Unit)
F/LID 15A Tail Gate Relay, Tail Gate Actuator, Fuel Filler Door Switch
MODULE4 10A TPMS, O/S Mirror Switch, Power Window Switch
HTD MIRR 10A Driver/Passenger Power Outside Mirror, Front A/C Control Module
POWER CONNECTOR FUSE - MODULE, ROOM LP, DOOR LP

Engine compartment fuse panel

Engine compartment fuse panel



Engine compartment fuse replacement

1. Turn the ignition switch and all other switches off.

2. Remove the fuse panel cover by pressing the tab and pulling the cover up.

3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.

If it fits loosely, consult an authorized KIA dealer.

CAUTION

After checking the fuse panel in the engine compartment, securely install the fuse panel cover. If not, electrical failures may occur from water contact.

Engine compartment fuse replacement

Multi fuse



If the multi fuse is blown, it must be removed as follows:

1. Turn off the engine.

2. Disconnect the negative battery cable.

3. Remove the fuse panel on the right side in the engine compartment.

4. Remove the nuts shown in the picture above.

5. Replace the fuse with a new one of the same rating.

6. Reinstall in the reverse order of removal.

NOTICE

If the multi fuse is blown, consult an authorized KIA dealer.

Multi fuse

 Engine compartment - Fuse/relay panel description



Engine compartment fuse panel Coding


Description ... Fuse rating ... Protected component


ALT 175A Alternator

MULTI FUSE
I/P B+2 60A IPM (Fuse - S/HTR FRT, P/SEAT, Power Connector - MODULE, ROOM LP  DOOR LP)
BLOWER 40A Blower Relay
RR HTD 40A Rear Defogger Relay
ABS 1 40A ESC Control Module, Multipurpose Check Connector
ABS 2 40A ESC Control Module, Multipurpo se Check Connector
I/P B+3 60A IPM (Fuse - HAZARD, TPMS, F/LID)
I/P B+1 60A IPM (Fuse - DR LOCK, SUNROOF, 4WD, PDM, SMART KEY)


FUSE
IGN 2 40A Start Relay, W/O Smart Key - Ignition Switch, With Smart Key - PDM Relay Box (IGN2 Relay)
TRAILER 30A Trailer Power Outlet
IGN 1 30A W/O Smart Key - Ignition Switch, With Smart Key - PDM Relay Box (IGN1 Relay)
HORN 15A Horn Relay
STOP LP 15A Stop Lamp Switch, ICM Relay Box (DBC Relay)
B+ SENSOR 15A Battery Sensor
DEICER 15A Front Wiper Deicer Relay
C/FAN 50A Cooling Fan Relay Low/High
I/P B+4 50A IPM (Fuse - P/WDW LH, P/WDW RH, B/A HORN, A/CON REAR, AMP)
ECU 2 7.5A Sub Start Relay, PCM, Transaxle Range Switch, Alternator (G6DC)
ABS 7.5A ESC Control Module, Multipurpose Check Connector, Stop Lamp Switch (G4KE)
B/UP LP 7.5A Back-Up Lamp Relay (A/T), Back-Up Lamp Switch (M/T)

Description  ... Fuse rating  ... Protected component
EMS BOX
ECU 30A Engine Control Relay
ECU 3 20A G4KE - Ignition Coil #1/2/3/4, Condenser , G6DC - Ignition Coil #1/2/3/4/5/6, Condenser #1/2


SENSOR 1 10A

G4KE - Variable Intake Manifold Valve, Crankshaft Position Sensor, Immobilizer Module, Camshaft Position Sensor #1/2, Oil Control Valve #1/2, Canister Purge Control Solenoid Valve, Canister Close Valve, Cooling Fan (Low) Relay

G6DC - Variable Intake Manifold Valve #1/2, Immobilizer Module, Canister Purge Control Solenoid Valve, Oil Control Valve #1/2 (Exhaust), Oil Control Valve #1/2 (Intake), Canister Close Valve


SENSOR 2 10A G6DC - Cooling Fan (Low) Relay, Stop Lamp Switch
SENSOR 3 10A G4KE - Injector #1/2/3/4, A/C Relay , G6DC - PCM, Injector #1/2/3/4/5/6, A/C Relay
SENSOR 4 15A G4KE - Oxygen Sensor Up/Down, Fuel Pump Relay , G6DC - PCM, Oxygen Sensor #1/2/3/4, Fuel Pump Relay, Variable Charge Motion Actuator
ECU 1 15A PCM
A/CON 10A A/C (Air Conditioner) Relay
F/PUMP 15A Fuel Pump Relay
