2014 - 2015 Skoda Citigo Fuse Box Diagram

2014 Skoda Citigo (Volkswagen Up)



Fuses



Individual electrical circuits are protected by fuses.
Switch off the ignition and the corresponding power consuming device before replacing a fuse.
Find out which fuse belongs to the component that is not operating.
Fuses on the underside of the dash panel, Fuses in the engine compartment, or, Fuses in the dash panel.

CAUTION
■ “Never repair” fuses and also do not replace them with a fuse of a higher amperage
– risk of fire! This may also cause damage at another part of the electrical system.
■ If a newly inserted fuse blows again after a short time, have the electrical system checked as quickly as possible by a specialist garage.
■ A blown fuses is recognisable by the molten metal strip. Replace the faulty fuse with a new one of the same amperage.

Fuses on the underside of the dash panel

Underside of the dash panel: Fuse box / schematic diagram of the fuse box



The fuses are located underneath the steering wheel on the underside of the dash panel.

Replacing fuses

› Press the button 1

› Push the lid in the direction of the arrow.

› Remove the bracket 2 .

› Place the bracket on the respective fuse and pull this out.

› Insert a new fuse.

› Replace the bracket at the original position.

› Fold the cover upwards against the direction of the arrow.

› Close the cover until it clicks into place.

Fuse assignment on the underside of the dash panel

No. Power consumer

1 Telephone, radiator fan, instrument cluster, engine control unit

2 Diagnostic port, air compressor, bar with buttons, control unit for air conditioning

3 Clutch pedal switch, brake pedal switch

4 Switch illumination, number plate light

5 Steering column switch, central control unit

6 Headlamp beam adjustment, exterior mirror adjustment

7-8 Automated transmission

9 Airbag, bar with buttons

10 Park Assist

11 Headlights

12 The rear fog light

13 Headlights

14 Rear window wiper

15 Light switch

16 Steering force assistance

17 Windscreen washer

18 Reverse light switch

19 Injection valves, coolant pump

20 ABS/ESP

21 Parking lights,

22 Daytime running lights

23 Headlights

24 Headlight flasher

25 Windscreen Wiper and Washer System

26 Not assigned

27 Interior lighting

28 Diagnostic connector

29 Central control unit

30 Exterior mirror heater

31 Radiator fan, lambda probe

32 Blinking light, brake light, daytime running lights, rear light

33 Main beam

34 Main beam

35 Fuel pump

36 Cigarette lighter, 12-volt power socket

37 Air blower for heating and air conditioning

38 Radio

39 Panoramic sliding roof, horn

40 Engine control unit

41 Central locking system

42 Ignition module

43 Seat heaters

44 Fuel pump

45 Light switch

46 Rear window heater

47 Windows

48 Horn

49 Windscreen wipers

50 Fog lights, headlight

51 Power windows

Fuses in the engine compartment

Skoda Citigo - Distribution board cover/fuses

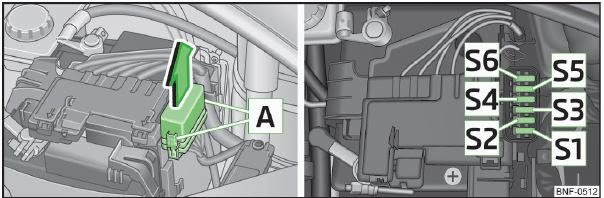

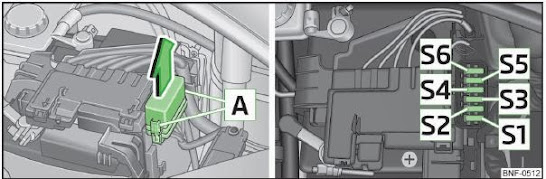

The fuses are located underneath a cover next to the vehicle battery.

Replacing fuses

› Press the locking keys of cover A together simultaneously.

› Push out the cover in the direction of the arrow.

› Replace the appropriate fuse.

› Insert the cover in the direction counter to the arrow.

› Close the cover until it clicks into place.

Fuse assignment in engine compartment

No. Power consumer

S1 ABS/ESP

S2 Radiator fan

S3 Control unit for radiator fan, ignition

S4 ABS/ESP

S5 Central control unit, battery management

S6 Ignition lock, starter

Fuses in the dash panel

Skoda Citigo - Distribution board cover/fuses

On vehicles with the START-STOP system, the fuses are on the left side of the dash panel behind a cover.

Replacing fuses

› Insert a suitable flat object, such as a screwdriver, into the gap in the arrow area.

› Carefully pry off the cover and remove it.

› Replace the appropriate fuse.

› Close the cover until it clicks into place.

Fuse layout on the panel side

No. Power consumer

1 ABS/ESP

2 Instrument cluster

3 Radio, diagnosis

4 DC-DC voltage converter, starter relay, bar with buttons

5 Not assigned

6 Not assigned

7 Not assigned

8 Not assigned

9 Headlights

10 Headlights

11 Starter

12 DC-DC voltage converter, ABS, instrument cluster, radio
