2005 - 2012 Skoda Octavia Fuse Box Diagram

2012 Skoda Octavia
 2012 Skoda Octavia


 Fuse Box Location


The fuses are located on the left side of the dash panel behind the safety cover and under the cover in the engine compartment on the left.

Fuse cover: left side of the Dash Panel


Skoda Octavia 2011 - Fuse cover: left side of the dash panel

Fuse assignment in the dash panel


Skoda Octavia 2011 - Schematic representation of the fuse carrier in the dash panel
Schematic representation of the fuse carrier in the dash panel

Fuse Specification Chart


No.  ...  Power consumer

1 Diagnostic socket, Engine control unit, Electrical fuel pump
2 Control unit for ABS, ESP
3 Airbag
4 Heating, Air conditioning system, Reversing lights
5 Control unit for headlamp beam adjustment
6 Instrument cluster, control unit for automatic gearbox, control unit for electromechanical power steering, parking aid, Haldex coupling
7 Not assigned
8 Not assigned
9 Not assigned
10 Not assigned
11 Not assigned
12 Central locking control unit
13 Diagnostic socket, Light switch
14 Control unit for automatic gearbox, Selector lever lock
15 Central control unit - interior lights
16 Climatronic
17 Not assigned
18 Rear window wiper
19 Control unit for trailer detection
20 Not assigned
21 Cornering lights for the left and right side
22 Air blower for Climatronic
23 Front power window
24 Cigarette lighter
25 Rear window heater , Rear window heater , Auxiliary heating (auxiliary heating and ventilation)
26 Power socket in the luggage compartment
27 Fuel pump relay, Injection valves (diesel engine)
28 Radio
29 Engine control unit, Crankcase ventilation heater
30 Control unit for automatic gearbox
31 Vacuum pump
32 Rear power window
33 Electric sliding/tilting roof
34 Control unit for convenience functions
35 Anti-theft alarm system
36 Headlight cleaning system
37 Front seat heating
38 Heated rear seats
39 Instrument cluster, windshield wiper lever and turn signal light lever
40 Air blower for heating and air conditioning
41 Not assigned
42 Not assigned
43 Towing device
44 Towing device
45 Towing device
46 Seat heaters
47 Relay for auxiliary heating
48 Phone
49 Light switch

Engine Compartment Fuse Box


Fuse cover in engine compartment Location
Fuse cover in engine compartment Location

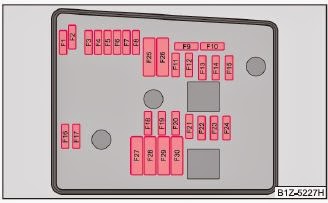

Schematic representation of fuse carrier in engine compartment
Schematic representation of fuse carrier in engine compartment

No. - Power consumer

F1 Not assigned
F2 Control unit for automatic gearbox DQ 200
F3 Measuring circuit
F4 Valves for ABS
F5 Control unit for automatic gearbox
F6 Instrument cluster, windshield wiper lever and turn signal light lever
F7 Power suppy terminal 15, Starter
F8 Radio
F9 Not assigned
F10 Engine control unit, Main relay
F11 Control unit for auxiliary heating
F12 Control unit for CAN databus
F13 Engine control unit
F14 Ignition
F15 Lambda probe glow plug system relay
F16 Central control unit, right main headlight, right rear light unit
F17 Horn
F18 Amplifier for digital sound processor
F19 Front window wiper
F20 Water pump valve for fuel dosing
F21 Lambda probe Vacuum pump
F22 Clutch pedal switch, brake pedal switch
F23 Secondary air pump , Air mass meter , Fuel high pressure pump
F24 Activated charcoal filter, exhaust gas recirculation valve
F25 Pump for ABS
F26 Central control unit, left main headlight, left rear light unit
F27 Secondary air pump Glow plug system
F28 Not assigned
F29 Power supply terminal 30
F30 Terminal X
